Product Details | AIRCRAFT WING ASSEMBLY
1560-01-548-6503 One of the airfoils that develop a major part of the lift which supports a heavier-than-air-aircraft. It consists of sections, panels, spars, and ribs. It may include fastening devices and electrical components necessary for a complete wing assembly. May also include control surfaces. Excludes WING PANEL (as modified); and WING SECTION (as modified).
Part Alternates: 3882234, 388223-4, 1560-01-548-6503, 01-548-6503, 1560015486503, 015486503
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 28 FEB 2007 | 01-548-6503 | 36283 ( WING ASSEMBLY, AIRCRAFT ) |

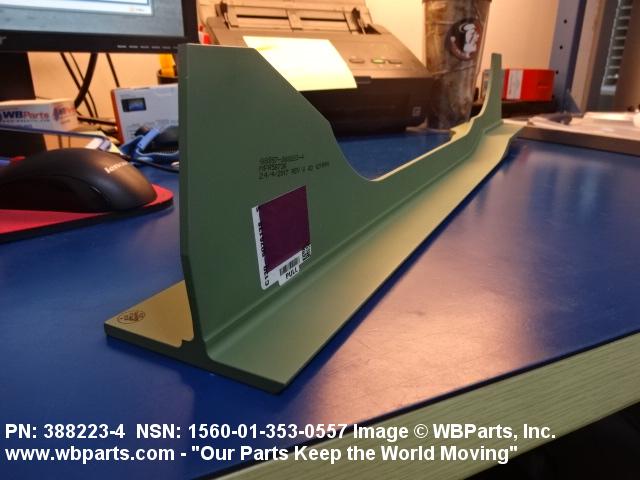

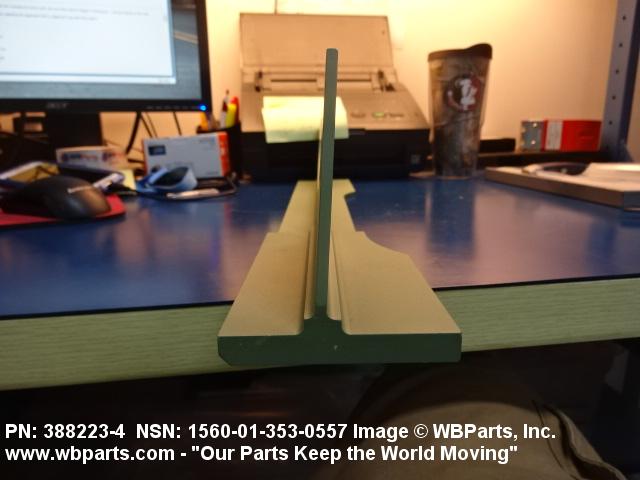

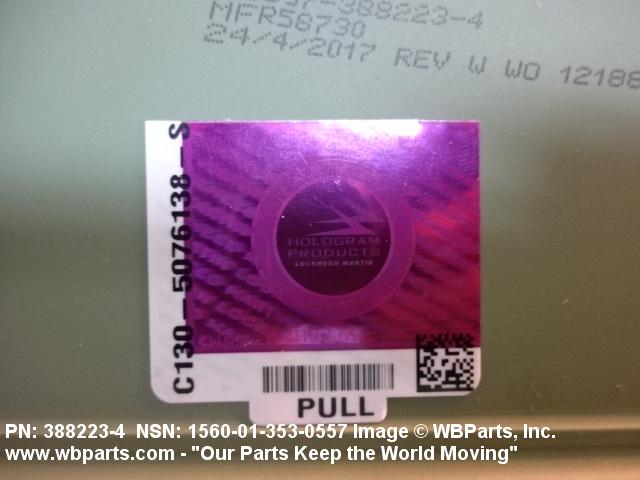

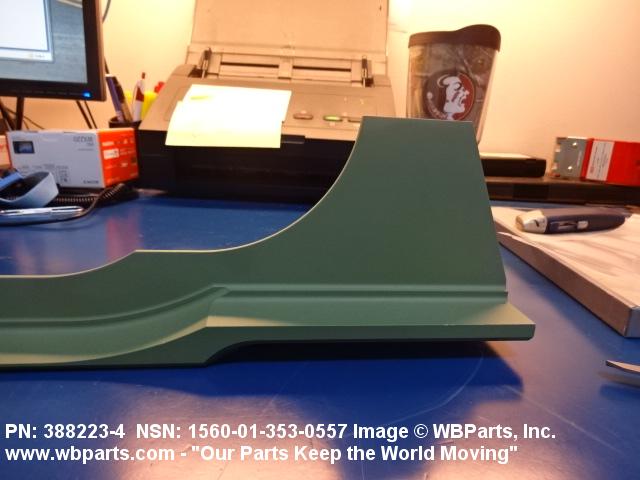

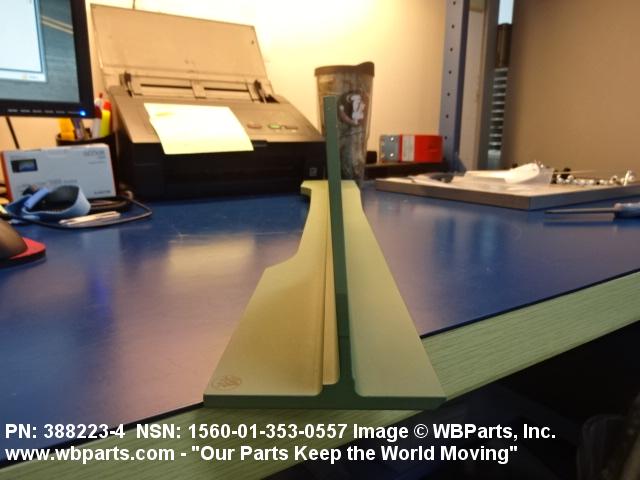

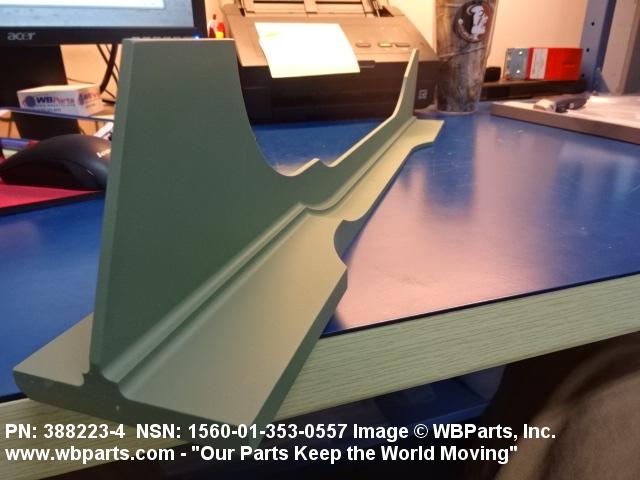

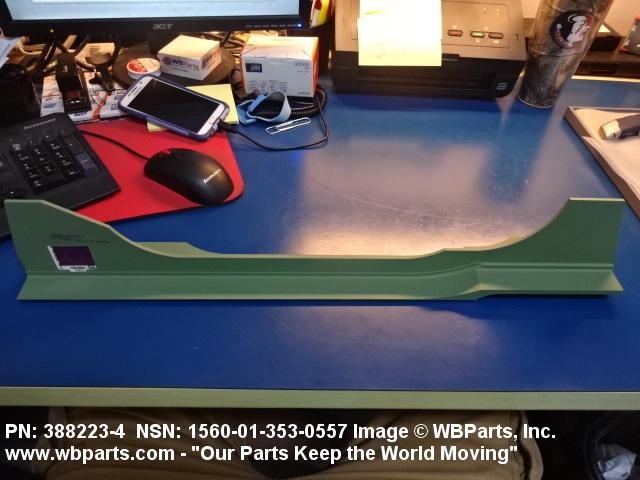

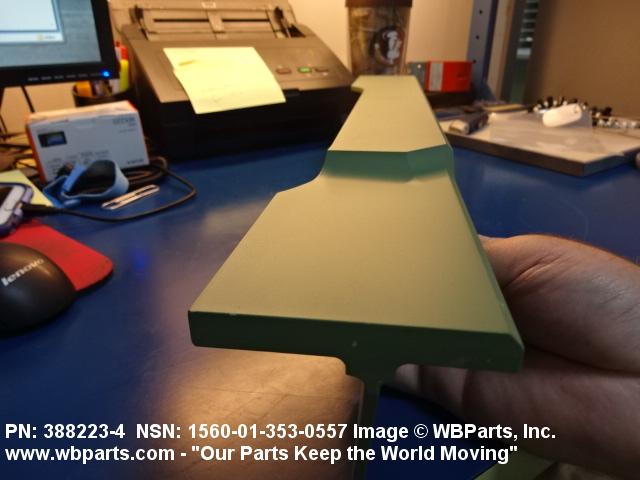

Drawings & Photos | NSN 1560-01-548-6503
Cross Reference | NSN 1560-01-548-6503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 388223-4 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1560-01-548-6503
1560-01-548-6558, 1560-01-548-6621, 1560-01-548-6668, 1560-01-548-6669, 1560-01-548-6683
Technical Data | NSN 1560-01-548-6503
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | RIB ASSEMBLY, OW FLAP STA 100.1804 TE TRACK |
Restrictions/Controls & Freight Information | NSN 1560-01-548-6503
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
