Product Details | PRESSURE FUEL SERVICING ADAPTER
1560-01-582-8369 A metallic device of variable configuration having a circular ingress orifice located in the greatest dimension. When inoperative, the orifice is sealed by a poppet valve held in position by a mechanical spring. It permits rapid replenishment of fuel storage tanks, or fueling of an aircraft or guided missile when the valve is depressed by the fueling nozzle or by another similar pressure fuel dispensing device.20314200025Guided Missile Components15600030Airframe Structural Components49300041Lubrication and Fuel Dispensing Equipment
Part Alternates: 145PS6091, 145PS609-1, 1560-01-582-8369, 01-582-8369, 1560015828369, 015828369
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 09 MAR 2010 | 01-582-8369 | 19179 ( ADAPTER, PRESSURE FUEL SERVICING ) |

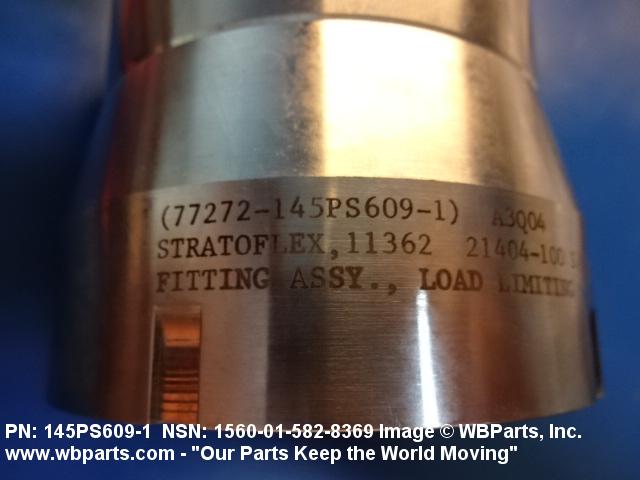

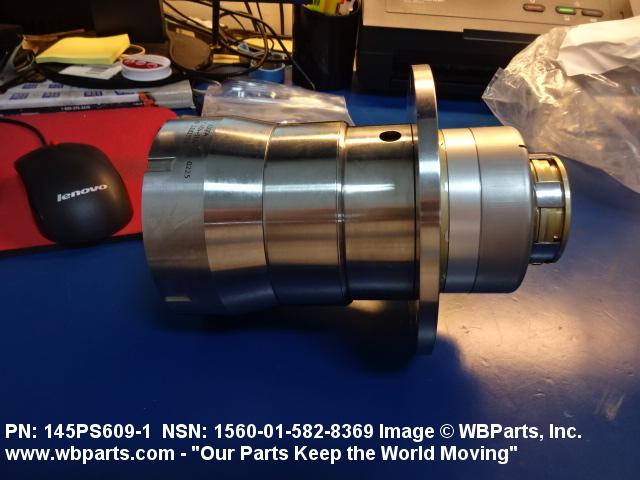

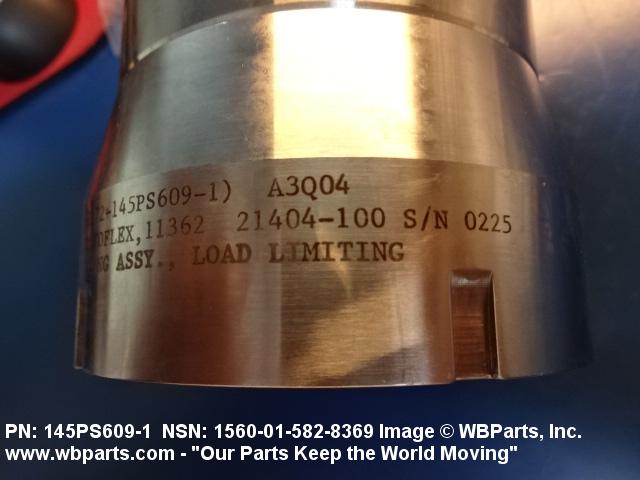

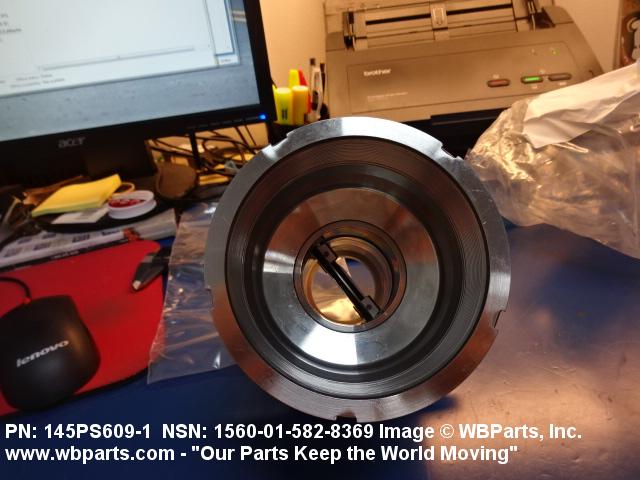

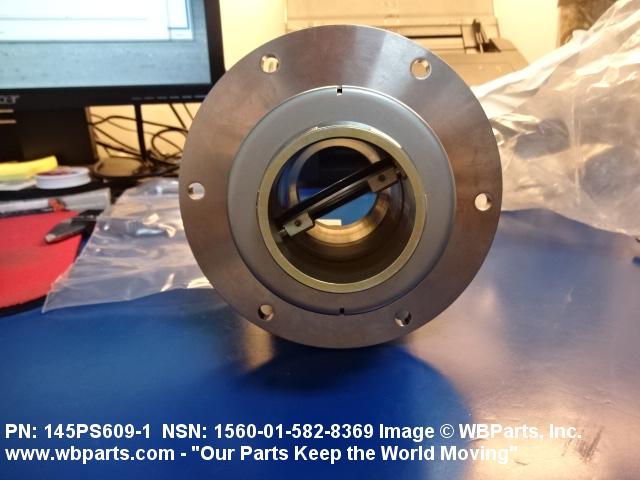

Drawings & Photos | NSN 1560-01-582-8369
Demand History | NSN 1560-01-582-8369
Cross Reference | NSN 1560-01-582-8369
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145PS609-1 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1560-01-582-8369
1560-01-583-0391, 1560-01-583-0714, 1560-01-583-1240, 1410-01-582-0941, 1410-01-583-8590
Technical Data | NSN 1560-01-582-8369
| Characteristic | Specifications |
|---|---|
| UNPACKAGED UNIT WEIGHT | 8.000 POUNDS |
| END ITEM IDENTIFICATION | CHINOOK HELICOPTER |
| SPECIAL FEATURES | CORROSION RES, FUEL/OIL RES, 300 GPM, AT +55 PSIG SYS PRES, MTBF 10,000, LOAD LIMITING; N/A 145P6100-1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING ASSY |
| FUEL TYPE | AVIATION FUEL |
| SHAPE | CYLINDRICAL |
Restrictions/Controls & Freight Information | NSN 1560-01-582-8369
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
