NSN 1560-01-585-3543 55112757, 5511275-7, 01-585-3543

Product Details | AIRCRAFT WINDOW PANEL


1560-01-585-3543 An item with a transparent pane designed for mounting in the exterior or interior portion of the aircraft. It permits visibility of a desired area and protects the occupants and interior of the aircraft from foreign matter. It may consist of frame, seal(s), ring(s), spacer(s), plate(s) or like components. Excludes WINDSHIELD PANEL, AIRCRAFT; and GLASS, LAMINATED.

Part Alternates: 55112757, 5511275-7, 1560-01-585-3543, 01-585-3543, 1560015853543, 015853543

Aircraft and Airframe Structural Components | Airframe Structural Components

Supply Group (FSG) NSN Assign. NIIN
15 24 MAY 2010 01-585-3543

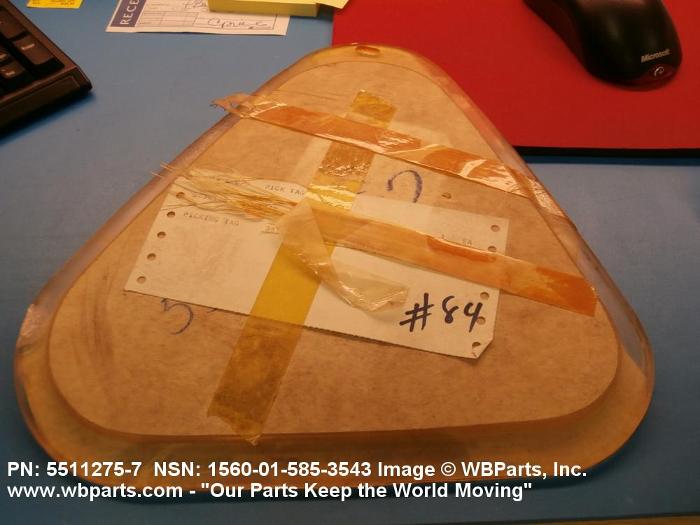

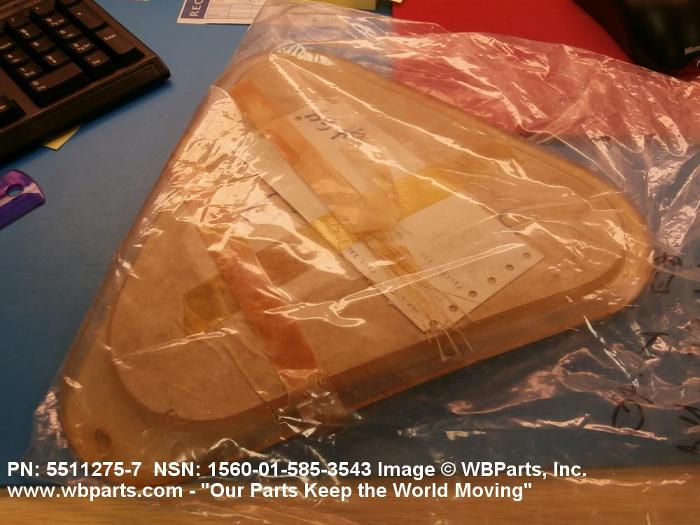

Drawings & Photos | NSN 1560-01-585-3543



Demand History | NSN 1560-01-585-3543


Part Number Request Date QTY Origin
55112757 2023-06-27 1 United States
1560-01-585-3543 2015-07-21 1 US
55112757 2012-09-17 1 Argentina
55112757 2012-01-06 1 Argentina
55112757 2007-09-04 1 United Kingdom

Cross Reference | NSN 1560-01-585-3543


Part Number Cage Code Manufacturer
5511275-7 71379 CESSNA AIRCRAFT COMPANY

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 1560-01-585-3543


Technical Data | NSN 1560-01-585-3543


Characteristic Specifications
AIRCRAFT MISSION DESIGN SERIES MODEL 550 CESSNA
AIRCRAFT LOCATION FLIGHT COMPARTMENT
PART NAME ASSIGNED BY CONTROLLING AGENCY WINDOW
SPECIAL FEATURES FOUL WEATHER WINDOW
END ITEM IDENTIFICATION CESSNA 550 ACFT

Restrictions/Controls & Freight Information | NSN 1560-01-585-3543


Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
