Product Details | STRUCTURAL COMPONENT FITTING SET
1560-01-586-7501 An item consisting of two FITTING, STRUCTURAL COMPONENT, AIRCRAFT designed to mate with each other to permit a small rotating, pivoting motion between elements on which they are mounted before being fixed definitively. Excludes HINGE, AIRCRAFT.
Part Alternates: AS5169K02L, 1560-01-586-7501, 01-586-7501, 1560015867501, 015867501
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 13 JUL 2010 | 01-586-7501 | 66812 ( FITTING SET, STRUCTURAL COMPONENT, AIRCRAFT ) |

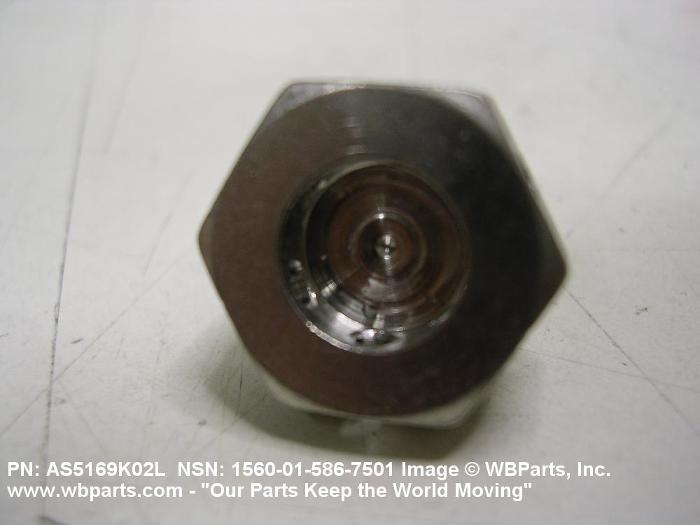

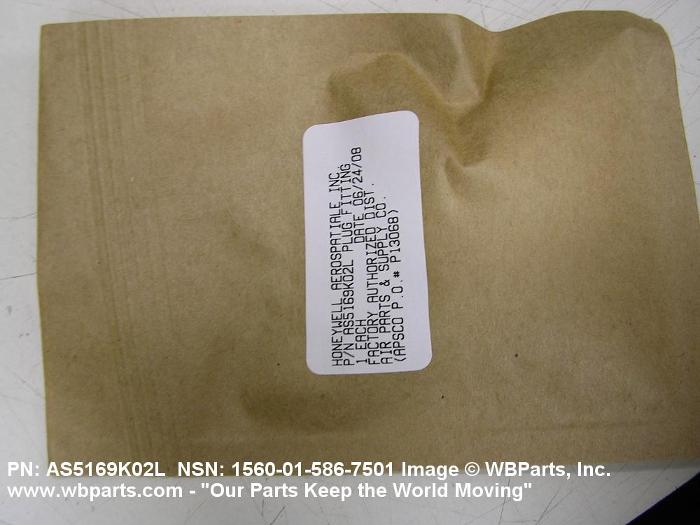

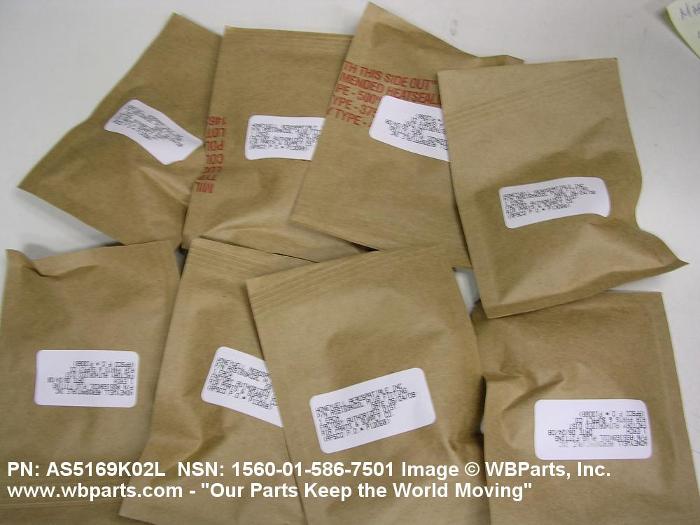

Drawings & Photos | NSN 1560-01-586-7501
Demand History | NSN 1560-01-586-7501
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-586-7501 | 2023-09-13 | 107 | US |
| AS5169K02L | 2020-09-09 | 2 | US |
| AS5169K02L | 2018-07-30 | 192 | United States |
| 1560-01-586-7501 | 2016-02-09 | 170 | US |
| AS5169K02L | 2009-11-23 | 10 | United States |
| AS5169K02L | 2008-06-26 | 8 | United States |
| AS5169K02L | 2008-05-28 | 2 | United States |
| AS5169K02L | 2008-02-07 | 140 | US |
Cross Reference | NSN 1560-01-586-7501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS5169K02L | 55176 | AIR PARTS & SUPPLY CO. DBA APSCO AIR PARTS & SUPPLY COMPANY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1560-01-586-7501
1560-01-586-7648, 1560-01-586-7654, 1560-01-586-7700, 1560-01-586-8043, 1560-01-586-9479
Technical Data | NSN 1560-01-586-7501
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING, PORT PLUG |
Restrictions/Controls & Freight Information | NSN 1560-01-586-7501
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
