Product Details | HYDRAULIC BRAKE CYLINDER CUP
2530-00-113-5460 A circular-shaped item of molded synthetic or natural rubber designed specifically to seal fluid pressure and prevent leakage within the cylinders of a vehicular hydraulic brake system. It is a component of CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER or CYLINDER ASSEMBLY, HYDRAULIC BRAKE, WHEEL. Excludes CUP, COMPRESSION.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: FC12360, FC12360E, PC122360, R1057, 111103R1, 1796711, 2Q2201A, 617334, 828089, 8720481, 2530-00-113-5460, 00-113-5460, 2530001135460, 001135460
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 04 SEP 1968 | 00-113-5460 | 11359 ( CUP, HYDRAULIC BRAKE CYLINDER ) |

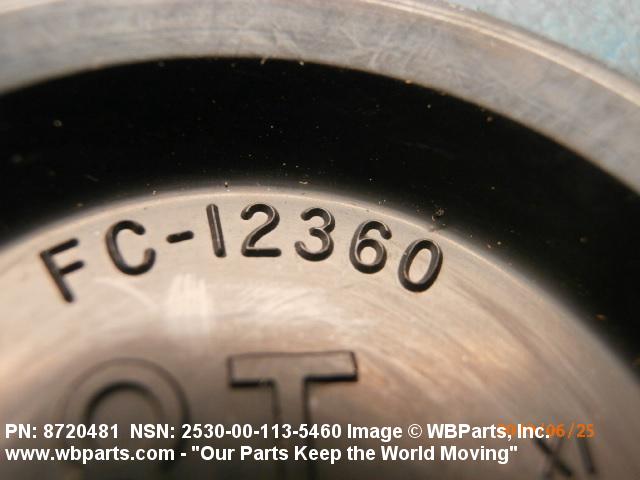

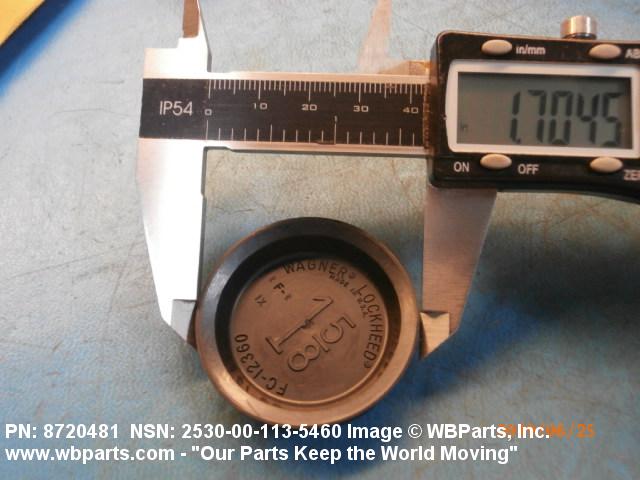

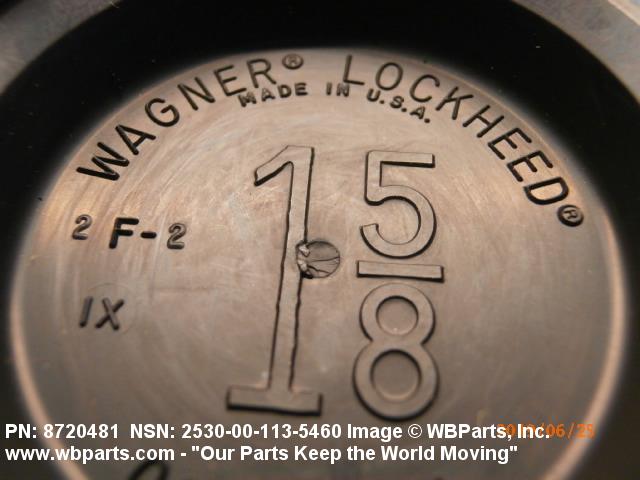

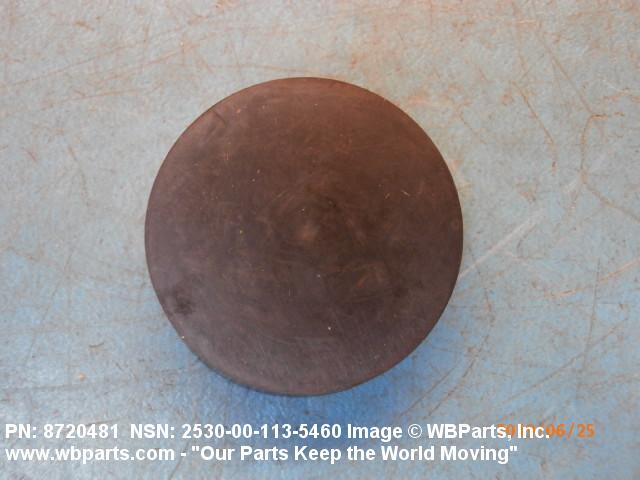

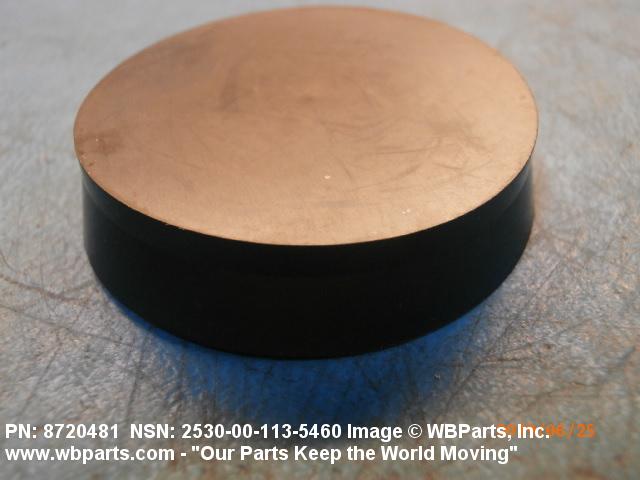

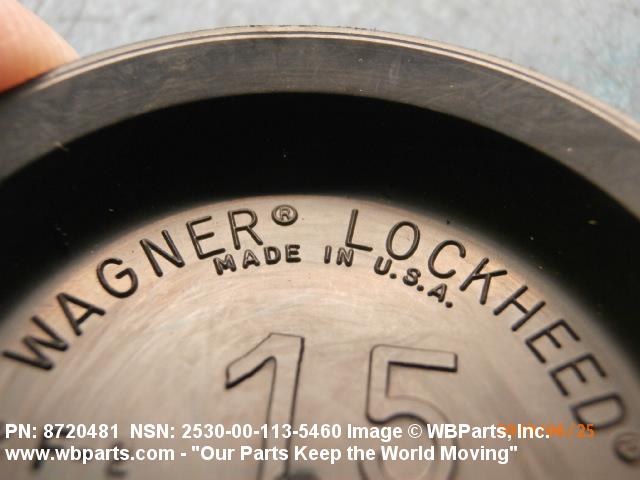

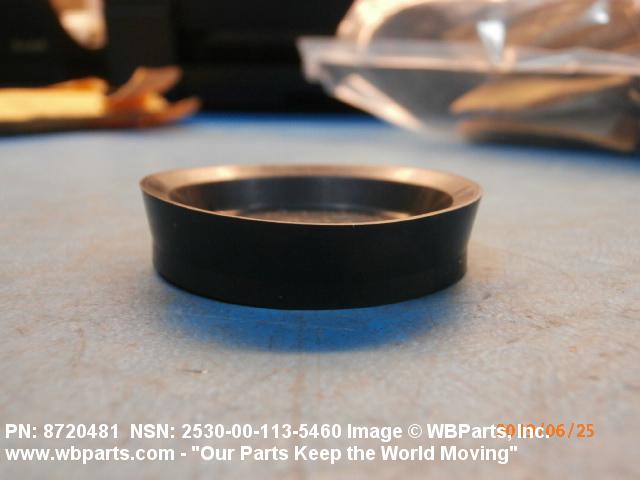

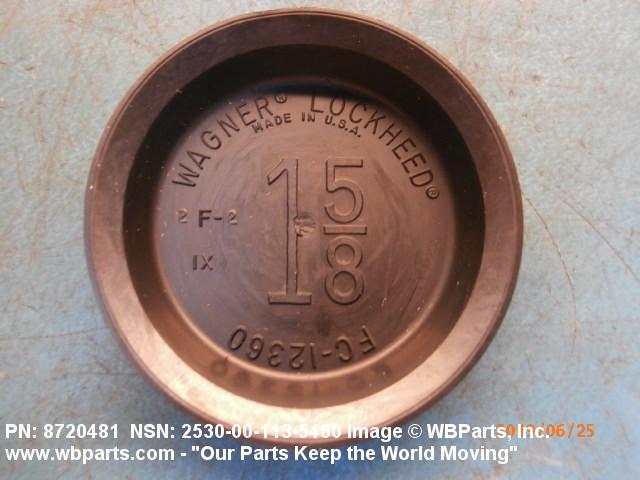

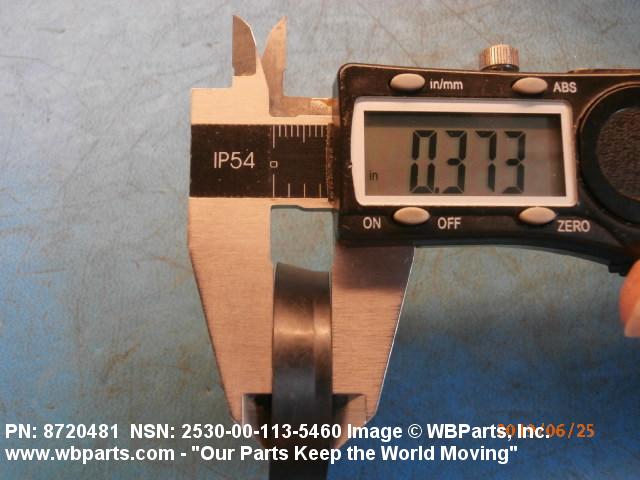

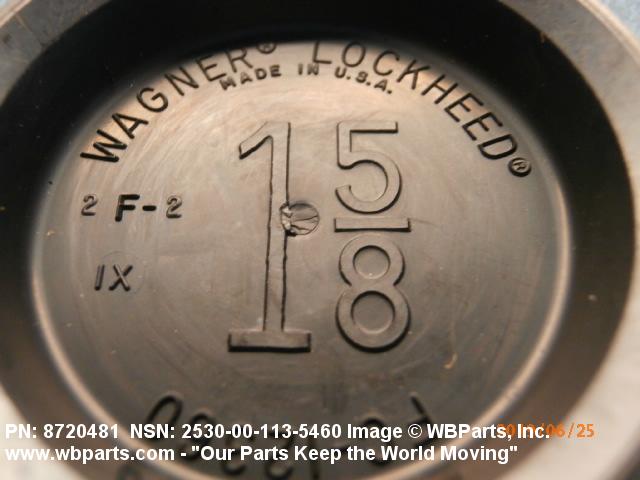

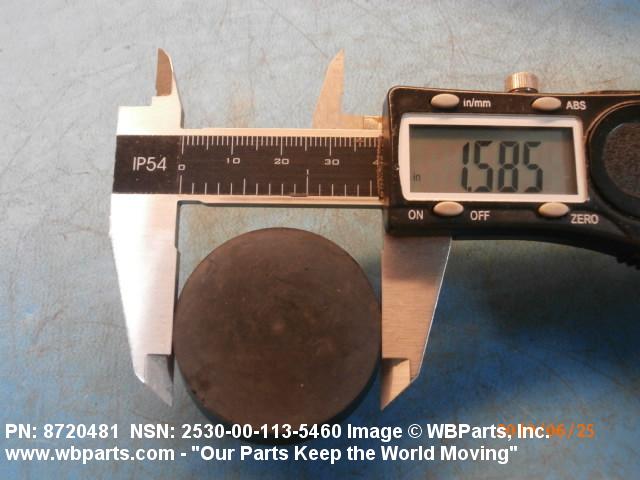

Drawings & Photos | NSN 2530-00-113-5460
Demand History | NSN 2530-00-113-5460
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-113-5460 | 2019-03-08 | 10 | United States |
| 2530-00-113-5460 | 2019-03-08 | 10 | United States |
| 2530-00-113-5460 | 2019-03-01 | 10 | US |
| 2530-00-113-5460 | 2013-06-18 | 43 | DIBBS |
| 2530-00-113-5460 | 2013-05-09 | 49 | DIBBS |
| 2530-00-113-5460 | 2009-06-15 | 34 | DIBBS |
| 2530-00-113-5460 | 2007-08-22 | 34 | DIBBS |
Cross Reference | NSN 2530-00-113-5460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 111103R1 | 31007 | NAVISTAR INTL CORP |
| 111103R1 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 1796711 | 12204 | DAIMLER CHRYSLER |
| 2Q2201A | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 2Q2201A | 57526 | FORD MOTOR CO |
| 617334 | 06840 | BENDIX CORP THE |
| 617334 | 14892 | BENDIX CORP THE BRAKE AND STEERING DIV |
| 828089 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 828089 | 65282 | WHITE MOTOR CORP |
| 8720481 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| FC12360 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC12360E | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| PC122360 | 71425 | AIRTEX PRODUCTS DIV OF UIS INC |
| R1057 | 80724 | EIS BRAKE PARTS DIV OF STANDARD MOTOR PRODUCTS INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2530-00-113-5460
Related Products | NSN 2530-00-113-5460
2530-00-113-5461, 2530-00-113-5546, 2530-00-113-5547, 2530-00-113-5550, 2530-00-113-5551
Technical Data | NSN 2530-00-113-5460
| Characteristic | Specifications |
|---|---|
| SIZE DESIGNATOR | 1-5/8 IN. |
| MATERIAL | RUBBER, SYNTHETIC, MIL-C-14055 |
| MOUNTING METHOD | FLAT SOLID BASE |
| BASE INSIDE PROJECTION | NOT INCLUDED |
| FEATHERED LIP FEATURE | INCLUDED |
| ANGLE IN DEG | 79.5 |
| CUP PROTECTOR | NOT INCLUDED |
| OUTER PERIPHERY BASE GROOVE | NOT INCLUDED |
| LARGEST OUTSIDE DIAMETER | 1.700 INCHES MINIMUM AND 1.720 INCHES MAXIMUM |
| BASE OUTSIDE DIAMETER | 1.585 INCHES MINIMUM AND 1.600 INCHES MAXIMUM |
| SEALING LIP LENGTH | 0.248 INCHES MINIMUM AND 0.278 INCHES MAXIMUM |
| OVERALL LENGTH | 0.370 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| BASE THICKNESS | 0.122 INCHES MINIMUM AND 0.137 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 2530-00-113-5460
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011920 | AIRCRAFT BRAKES R PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-113-5460
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
