Product Details | AIR PRESSURE RELAY VALVE
2530-01-360-7917 A valve specifically designed for installation in an air brake system. It is used on trailers, long wheel base vehicles, as well as multiple rear axle vehicles. It serves to speed and synchronize the application and release of air operated service or parking brakes. It may include emergency features for trailer application.
Part Alternates: 06462340R, 06-462-340-R, 06462360R, 06-462-360-R, 1771AS541, 1771AS5411, 1771AS541-1, 2530-01-360-7917, 01-360-7917, 2530013607917, 013607917
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JUL 1992 | 01-360-7917 | 36296 ( VALVE, RELAY, AIR PRESSURE ) |

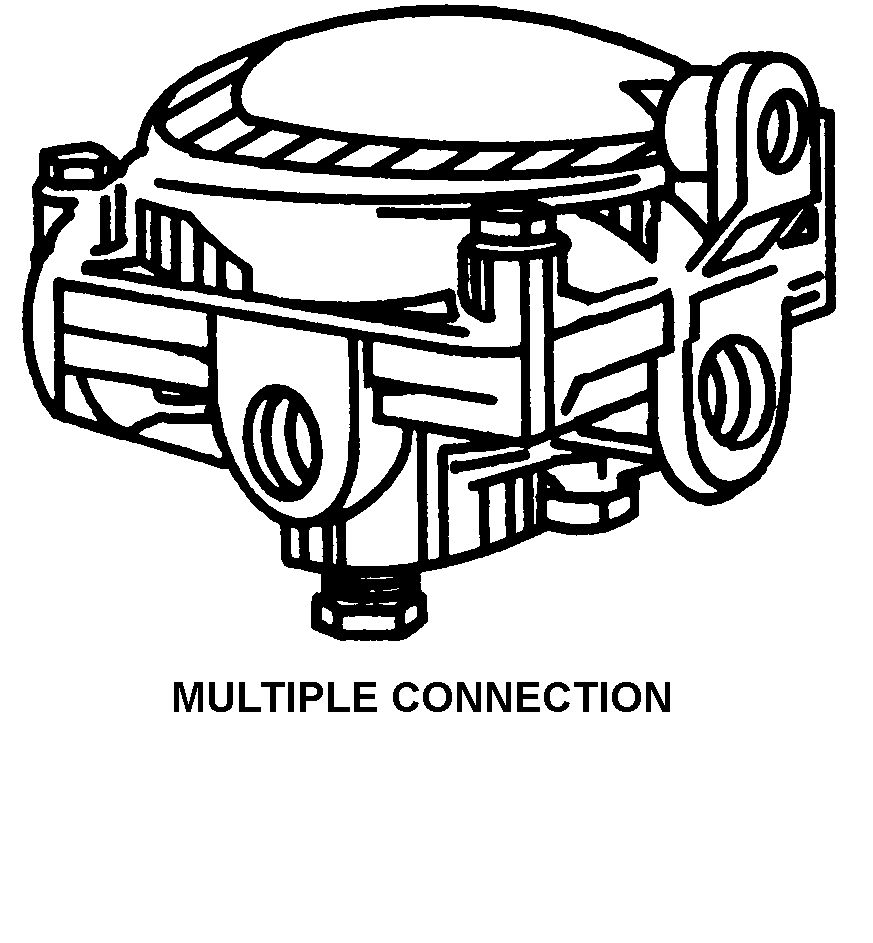

Drawings & Photos | NSN 2530-01-360-7917
Demand History | NSN 2530-01-360-7917
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2530-01-360-7917
2530-01-360-9116, 2530-01-360-9131, 2530-01-360-9193, 2530-01-360-9240, 2530-01-360-9660
Technical Data | NSN 2530-01-360-7917
| Characteristic | Specifications |
|---|---|
| BODY STYLE | B10 MULTIPLE CONNECTION |
| END CONNECTION QUANTITY | 6 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | G11 PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| FOURTH END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | AIR OR HYDRAULIC FLUID, PHOSPHATE-ESTER BASE |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | PEDAL ACTUATED AT 45.0 DEG ANGLE |
Restrictions/Controls & Freight Information | NSN 2530-01-360-7917
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
