Product Details | INTERNAL COMBUSTION ENGINE PISTON
2805-00-375-8770 00020328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 1658P, 6270033, 2805-00-375-8770, 00-375-8770, 2805003758770, 003758770
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 12 MAR 1974 | 00-375-8770 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |
Drawings & Photos | NSN 2805-00-375-8770
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2805-00-375-8770
Related Products | NSN 2805-00-375-8770
2805-00-375-9004, 2805-00-375-9061, 2805-00-375-9259, 2805-00-375-9263, 2805-00-375-9270
Technical Data | NSN 2805-00-375-8770
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| DIAMETER | 3.875 INCHES NOMINAL |
| OVERALL HEIGHT | 3.295 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |
| WEIGHT | 34.0 OUNCES |

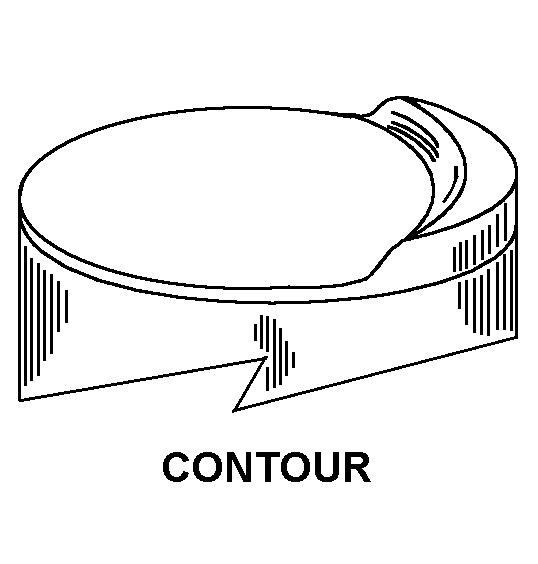

| HEAD STYLE | B10 CONTOUR |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | INCLUDED |
| CUT DEPTH | 0.875 INCHES NOMINAL |
| RING GROOVE QUANTITY | 3 |
| RING GROOVE POSITION | NUMBER 1,NUMBER 2,ANDNUMBER 3 |
| RING GROOVE WIDTH | 0.0930 INCHES NOMINAL AND 0.0930 INCHES NOMINAL AND 0.1870 INCHES NOMINAL |
| RING GROOVE DIAMETER | 3.500 INCHES NOMINAL AND 3.500 INCHES NOMINAL AND 3.500 INCHES NOMINAL |
| OIL PASSAGE TYPE | SLOT |
| CARBON GROOVE | INCLUDED |
| OIL GROOVE | INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 1.687 INCHES NOMINAL |
| PIN HOLE BUSHING | INCLUDED |
| PINHOLE DIAMETER | 0.9370 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | 1.046 INCHES NOMINAL |
| RETAINING RING GROOVE | NOT INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2805-00-375-8770
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120800 | ENGINES, INTERNAL COMBUSTION, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-375-8770
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
