Product Details | ELECTRICAL ENGINE STARTER
2920-00-462-4848 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.2031730000029200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 1018631, 101863-1, 1114667, 2920-00-462-4848, 00-462-4848, 2920004624848, 004624848
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 07 MAY 1969 | 00-462-4848 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
Drawings & Photos | NSN 2920-00-462-4848
Demand History | NSN 2920-00-462-4848
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-462-4848 | 2022-12-12 | 0 | NECO |
| 2920-00-462-4848 | 2020-05-20 | 1 | US |
| 1018631 | 2020-04-16 | 1 | US |
| 2920-00-462-4848 | 2019-10-09 | 1 | US |
| 2920-00-462-4848 | 2019-05-02 | 4 | South Korea |
| 2920-00-462-4848 | 2018-09-13 | 90 | NECO |
| 2920-00-462-4848 | 2016-09-08 | 1 | KR |
| 2920-00-462-4848 | 2015-04-07 | 18 | NECO |
| 2920-00-462-4848 | 2015-03-26 | 18 | NECO |
| 2920-00-462-4848 | 2014-09-17 | 15 | NECO |
| 1114667 | 2014-08-23 | 80 | |
| 2920-00-462-4848 | 2014-08-22 | 80 | NECO |
| 2920-00-462-4848 | 2014-04-08 | 24 | NECO |
| 1114667 | 2014-03-28 | 19 | |
| 2920-00-462-4848 | 2014-03-27 | 19 | NECO |
| 2920-00-462-4848 | 2014-02-01 | 1 | Australia |
| 2920-00-462-4848 | 2013-10-17 | 17 | NECO |
| 2920-00-462-4848 | 2013-05-12 | 1 | VE |
| 2920-00-462-4848 | 2013-05-02 | 9 | NECO |
| 1114667 | 2013-01-16 | 26 | |
| 2920-00-462-4848 | 2013-01-15 | 26 | NECO |
| 1114667 | 2012-09-14 | 10 | |
| 2920-00-462-4848 | 2012-09-13 | 10 | NECO |
| 1114667 | 2012-08-25 | 8 | |
| 2920-00-462-4848 | 2012-08-24 | 8 | NECO |
| 1114667 | 2012-05-31 | 8 | |
| 2920-00-462-4848 | 2012-05-30 | 8 | NECO |
| 1114667 | 2009-04-15 | 13 | United States |
| 1114667 | 2009-04-01 | 1 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2920-00-462-4848
Related Products | NSN 2920-00-462-4848
2920-00-462-4858, 2920-00-462-4859, 2920-00-462-4861, 2920-00-462-4864, 2920-00-462-4866
Technical Data | NSN 2920-00-462-4848
| Characteristic | Specifications |
|---|---|

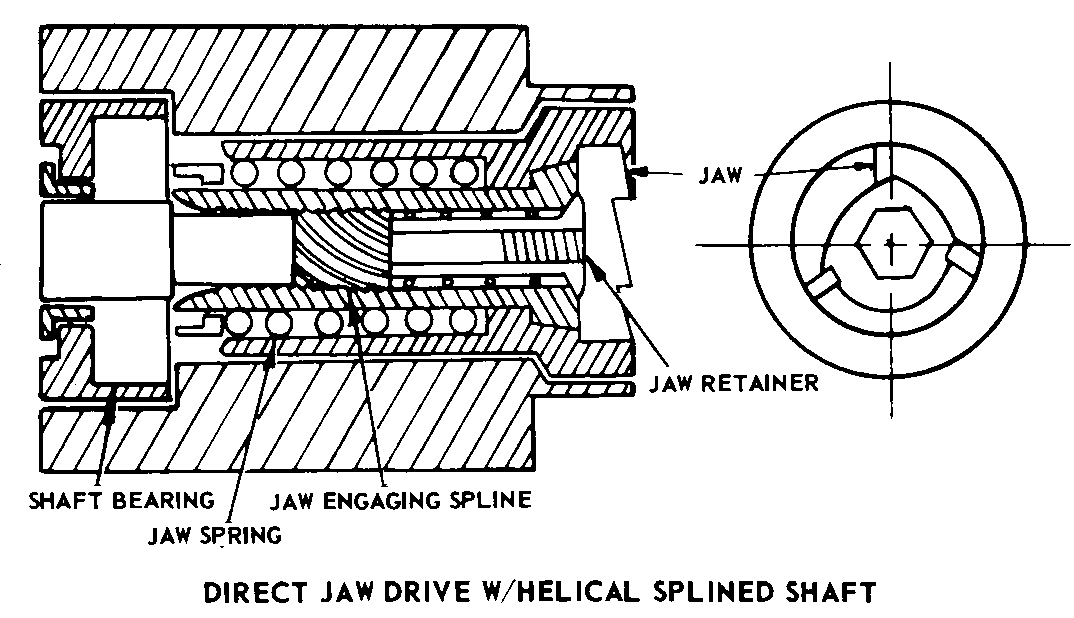

| ENGAGING MECHANISM STYLE | 20 DIRECT JAW DRIVE W/HELICAL SPLINED SHAFT |
| MOUNTING FLANGE SHAPE STYLE | 1 TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.534 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 0.690 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 41.0 |
| VOLTAGE IN VOLTS | 24.0 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 4 THREADED STUD |
| III FSC APPLICATION DATA | ENGINE ELECTRICAL SYSTEM COMPONENTS,NONAIRCRAFT |
Restrictions/Controls & Freight Information | NSN 2920-00-462-4848
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB3 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-462-4848
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | TD | Peculiar spares and repair parts in support of cognizance symbol |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
