Product Details | AXIAL FAN IMPELLER
2930-01-372-9710 An item with blades or vanes equally spaced radially around the periphery of a hub, flange, or rotor. It is the rotating part of an axial type fan, electric motor, generator, and the like which creates a flow of air or gas parallel to the axis of rotation.20229300045Engine Cooling System Components, Nonaircraft41400043Fans, Air Circulators, and Blower Equipment
Part Alternates: 26027161, 2602716-1, 30694ZLPAG30DEG, 30-69-4ZL-PAG-30DEG, 2930-01-372-9710, 01-372-9710, 2930013729710, 013729710
Engine Accessories | Engine Cooling System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 24 MAR 1993 | 01-372-9710 | 10087 ( IMPELLER, FAN, AXIAL ) |
Drawings & Photos | NSN 2930-01-372-9710
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2930-01-372-9710
2930-01-372-9711, 2930-01-372-9733, 2930-01-373-3804, 2930-01-373-4175, 2930-01-373-4176
Technical Data | NSN 2930-01-372-9710
| Characteristic | Specifications |
|---|---|

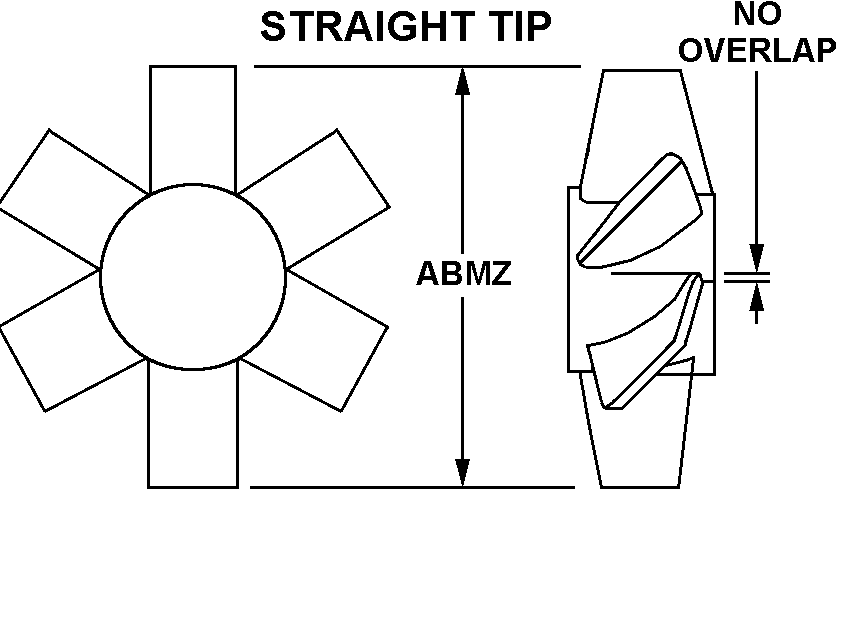

| STYLE DESIGNATOR | 2 STRAIGHT TIP |
| DIAMETER | 30.000 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYAMIDE BLADE |
| BLADE QUANTITY | 6 |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| ATTACHMENT METHOD | BOLT HOLE |
Restrictions/Controls & Freight Information | NSN 2930-01-372-9710
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
