Product Details | EXHAUST MUFFLER
2990-00-759-3639 00020215600030Airframe Structural Components29900045Miscellaneous Engine Accessories, Nonaircraft
Part Alternates: 10936691, 2990-00-759-3639, 00-759-3639, 2990007593639, 007593639
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 06 JUN 1967 | 00-759-3639 | 10849 ( MUFFLER, EXHAUST ) |

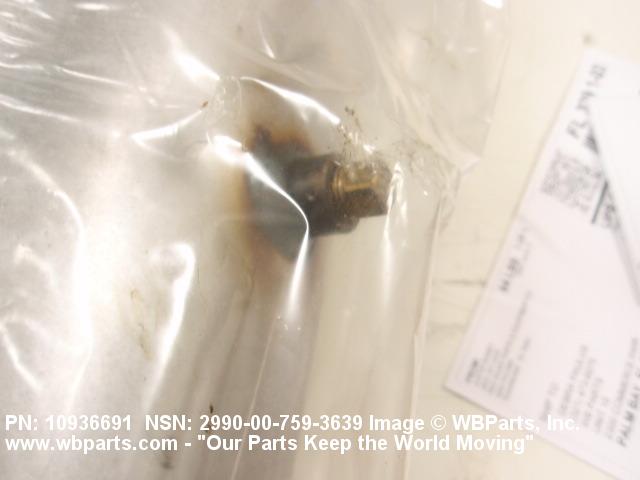

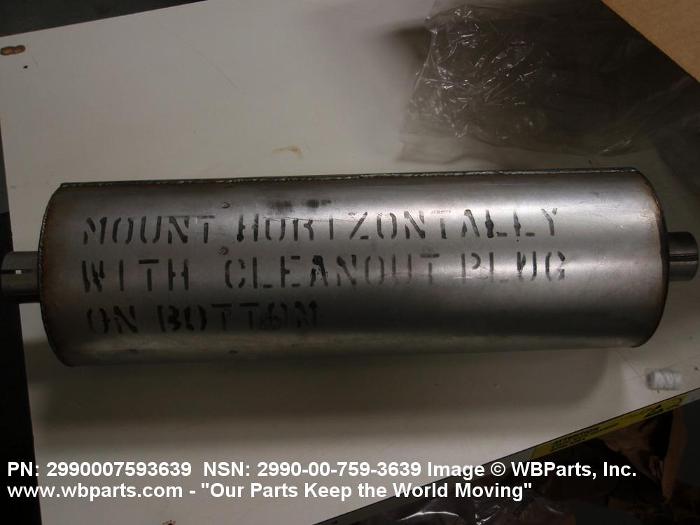

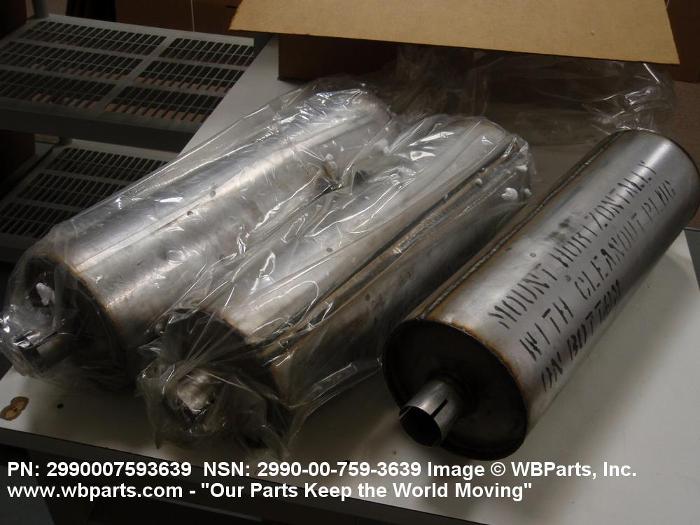

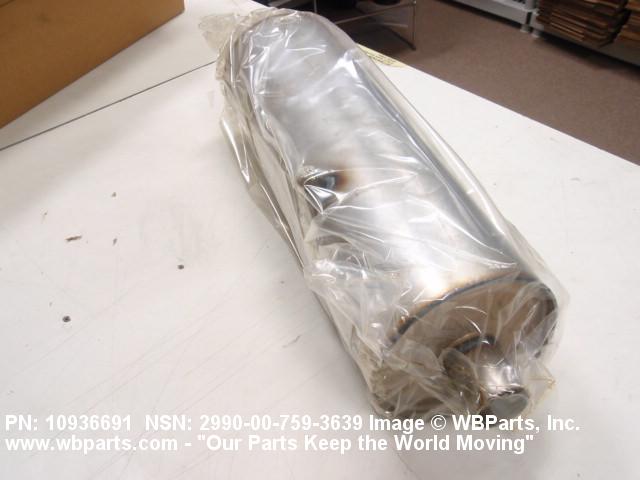

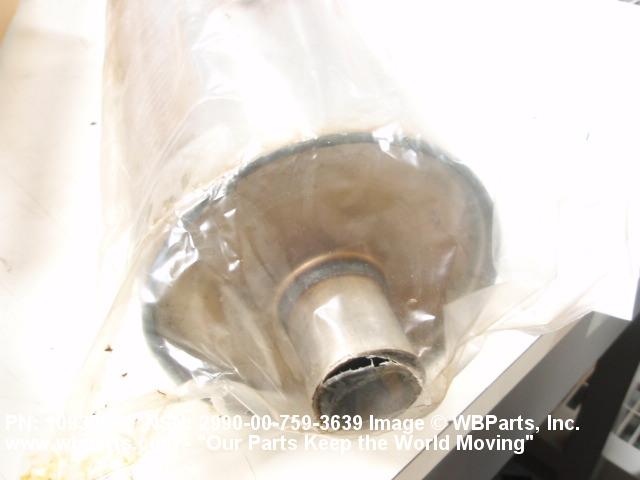

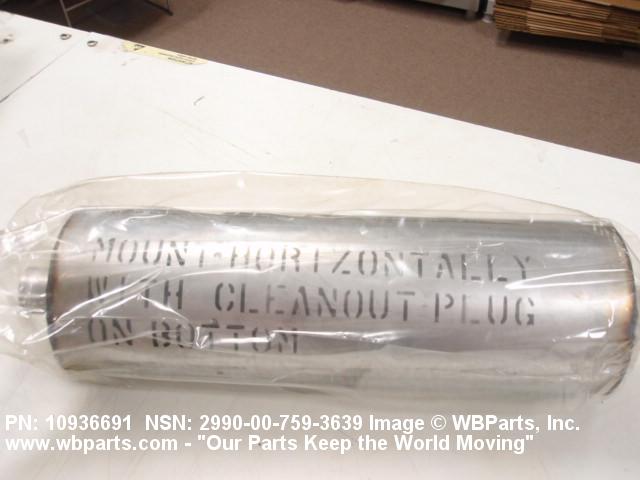

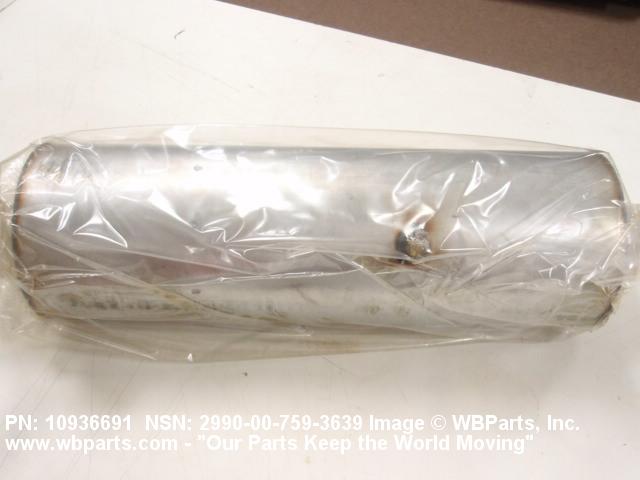

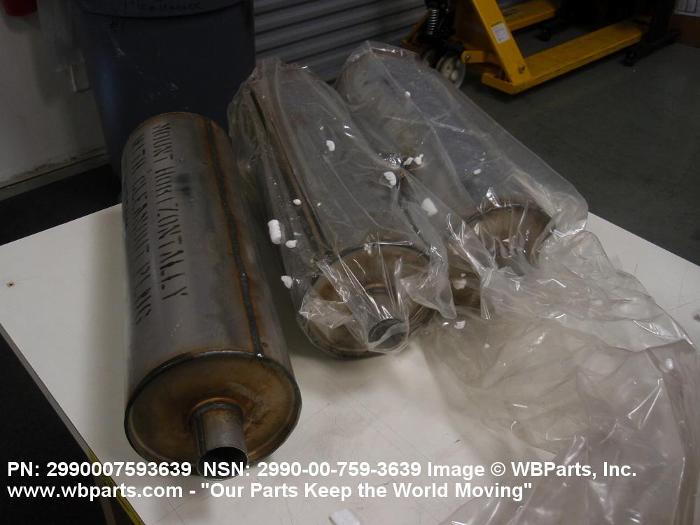

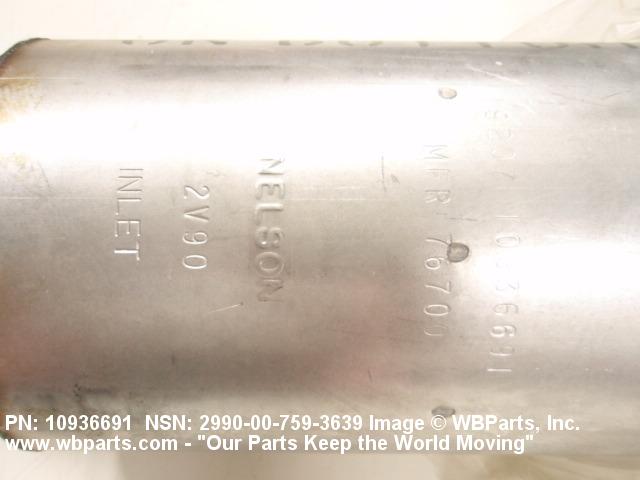

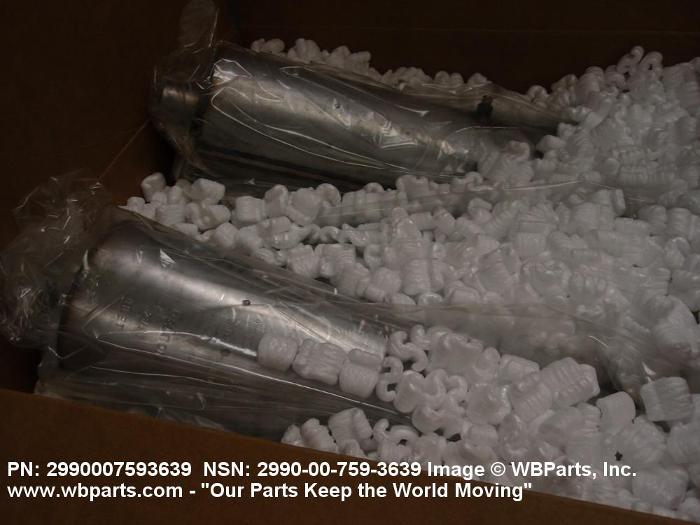

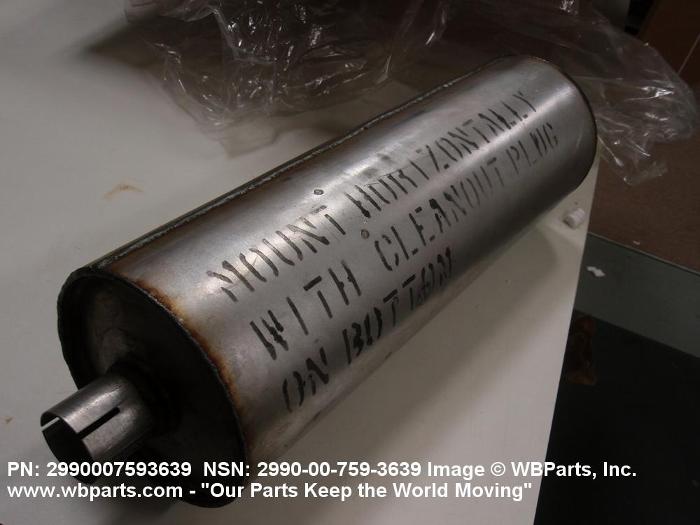

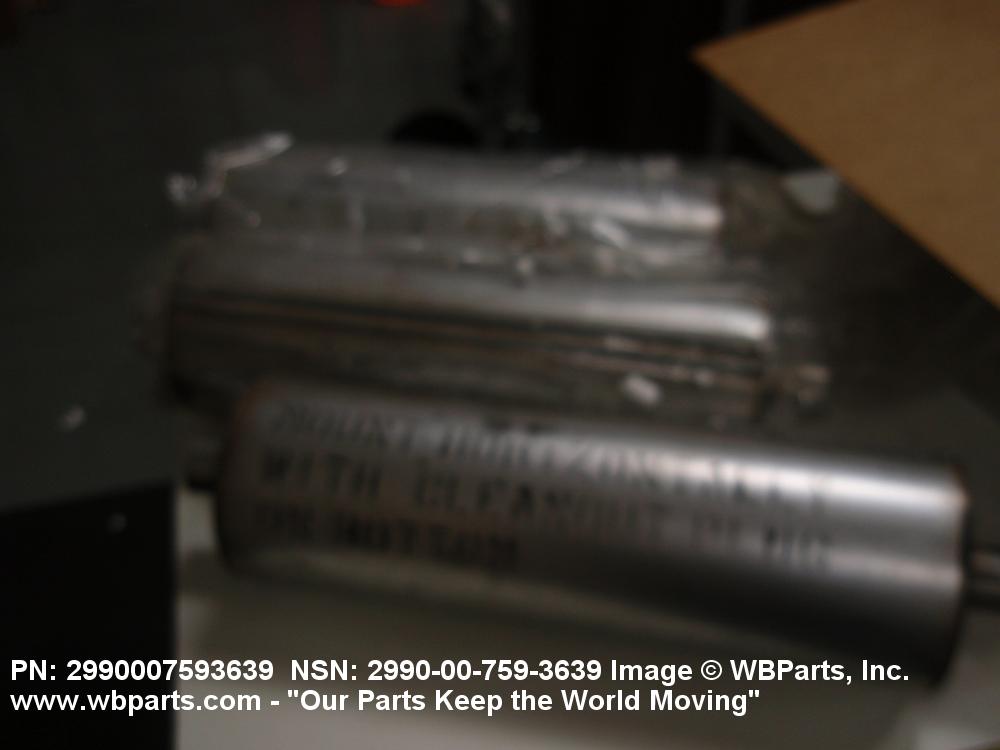

Drawings & Photos | NSN 2990-00-759-3639
Demand History | NSN 2990-00-759-3639
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2990-00-759-3639 | 2021-05-04 | 17 | DIBBS |
| 2990-00-759-3639 | 2016-01-02 | 2 | United States |
| 2990-00-759-3639 | 2016-01-02 | 50 | United States |
| 2990-00-759-3639 | 2016-01-02 | 83 | United States |
| 2990-00-759-3639 | 2011-12-23 | 17 | DIBBS |
| 2990-00-759-3639 | 2011-09-14 | 13 | DIBBS |
| 2990-00-759-3639 | 2011-08-04 | 24 | DIBBS |
| 2990-00-759-3639 | 2011-07-12 | 6 | DIBBS |
| 2990-00-759-3639 | 2011-07-08 | 42 | DIBBS |
| 2990-00-759-3639 | 2011-06-22 | 9 | DIBBS |
| 2990-00-759-3639 | 2011-06-22 | 24 | DIBBS |
| 2990-00-759-3639 | 2011-06-22 | 9 | DIBBS |
| 2990-00-759-3639 | 2011-03-22 | 3 | United States |
| 2990-00-759-3639 | 2011-01-17 | 16 | United States |
| 2990-00-759-3639 | 2010-07-15 | 5 | United States |
| 2990-00-759-3639 | 2010-07-01 | 10 | United States |
| 2990-00-759-3639 | 2009-10-02 | 14 | DIBBS |
| 2990-00-759-3639 | 2009-03-25 | 15 | DIBBS |
| 2990-00-759-3639 | 2008-10-15 | 25 | DIBBS |
| 2990-00-759-3639 | 2007-09-04 | 17 | DIBBS |
| 2990-00-759-3639 | 2007-03-30 | 20 | DIBBS |
Cross Reference | NSN 2990-00-759-3639
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10936691 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2990-00-759-3639
Related Products | NSN 2990-00-759-3639
2990-00-759-5347, 2990-00-759-6472, 2990-00-760-2212, 2990-00-760-2213, 2990-00-760-2214
Technical Data | NSN 2990-00-759-3639
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ALUMINUM, SILICONE |
| DESIGN TYPE | DRY |
| COOLANT TYPE | ANY ACCEPTABLE |
| MUFFLER DESIGN | DIRECTIONAL VANE |
| BODY SHAPE | ROUND |
| OVERALL LENGTH | 22.875 INCHES MINIMUM AND 23.125 INCHES MAXIMUM |
| OVERALL DIAMETER | 6.125 INCHES NOMINAL |
| OPERATING POSITION | HORIZONTAL |
| INLET CONNECTION TYPE | UNTHREADED |
| INLET LOCATION | CENTRALLY LOCATED IN END SECTION OF BODY |
| INLET PROJECTION LENGTH | 2.000 INCHES NOMINAL |
| INLET OUTSIDE DIAMETER | 1.746 INCHES MINIMUM 1ST CONNECTION 1.766 INCHES MAXIMUM 2ND CONNECTION |
| INLET INSIDE DIAMETER | 1.630 INCHES MINIMUM 1ST CONNECTION 1.650 INCHES MAXIMUM 2ND CONNECTION |
| OUTLET CONNECTION TYPE | UNTHREADED |
| OUTLET LOCATION | CENTRALLY LOCATED IN END SECTION OF BODY |
| OUTLET PROJECTION LENGTH | 2.000 INCHES NOMINAL |
| OUTLET OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| OUTLET INSIDE DIAMETER | 1.640 INCHES NOMINAL |
| SPECIAL FEATURES | ACCUMULATOR CHAMBER 6.125 IN. LG.,1.875 IN. H.,WELDED TO MUFFLER 7.000 IN. FROM EXHAUST END,WITH A STEEL COUPLING AND PIPE PLUG FACING INLET END FOR CLEAN-OUT |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10936691 |
Restrictions/Controls & Freight Information | NSN 2990-00-759-3639
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125850 | MUFFLER/EXHAUST SYS/PIPE/ETC |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | 99 | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2990-00-759-3639
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PV | Semi-Trailer, Prime Mover, 5 ton |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
