Product Details | GROOVE PULLEY
3020-01-223-7905 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 10085818 , 12313456, 3020-01-223-7905, 01-223-7905, 3020012237905, 012237905
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 06 JAN 1986 | 01-223-7905 | 08109 ( PULLEY, GROOVE ) |

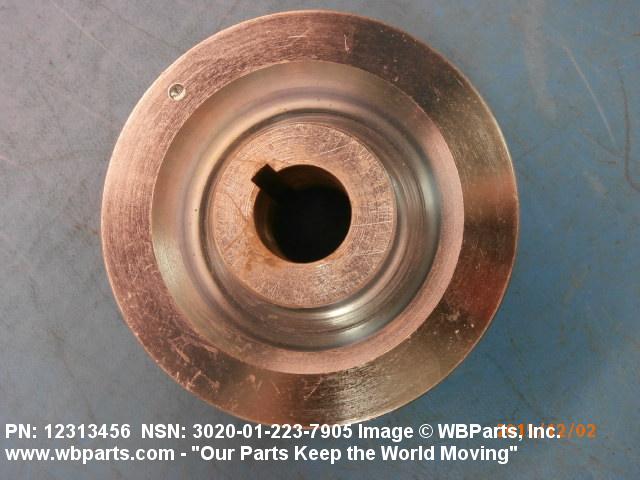

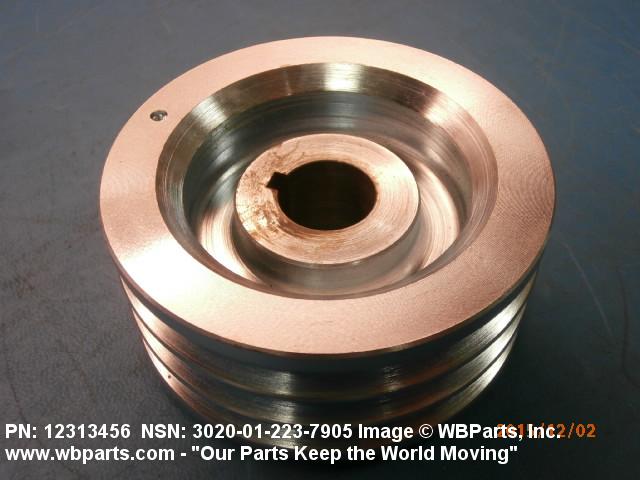

Drawings & Photos | NSN 3020-01-223-7905
Demand History | NSN 3020-01-223-7905
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-223-7905 | 2019-10-06 | 405 | DIBBS |
| 3020-01-223-7905 | 2019-08-01 | 249 | DIBBS |
| 3020-01-223-7905 | 2019-01-14 | 2 | United States |
| 3020-01-223-7905 | 2018-09-30 | 199 | DIBBS |
| 3020-01-223-7905 | 2017-09-11 | 424 | DIBBS |
| 3020-01-223-7905 | 2017-08-03 | 343 | DIBBS |
| 3020-01-223-7905 | 2017-03-28 | 268 | DIBBS |
| 3020-01-223-7905 | 2016-12-14 | 268 | DIBBS |
| 3020-01-223-7905 | 2016-12-13 | 313 | DIBBS |
| 3020-01-223-7905 | 2016-09-29 | 268 | DIBBS |
| 3020-01-223-7905 | 2016-08-11 | 269 | DIBBS |
| 3020-01-223-7905 | 2016-07-31 | 269 | DIBBS |
| 3020-01-223-7905 | 2016-02-04 | 125 | DIBBS |
| 3020-01-223-7905 | 2015-11-10 | 1 | United States |
| 3020-01-223-7905 | 2015-08-11 | 327 | DIBBS |
| 3020-01-223-7905 | 2015-07-30 | 327 | DIBBS |
| 3020-01-223-7905 | 2015-06-01 | 249 | DIBBS |
| 3020-01-223-7905 | 2015-05-20 | 249 | DIBBS |
| 3020-01-223-7905 | 2014-09-15 | 232 | DIBBS |
| 3020-01-223-7905 | 2014-07-23 | 57 | DIBBS |
Cross Reference | NSN 3020-01-223-7905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12313456 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3020-01-223-7905
Related Products | NSN 3020-01-223-7905
3020-01-223-7906, 3020-01-223-7972, 3020-01-223-8239, 3020-01-223-8438, 3020-01-223-8440
Technical Data | NSN 3020-01-223-7905
| Characteristic | Specifications |
|---|---|
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.491 INCHES NOMINAL |
| STYLE DESIGNATOR | WEBBED OR SPOKED |
| FACE WIDTH | 1.507 INCHES NOMINAL |

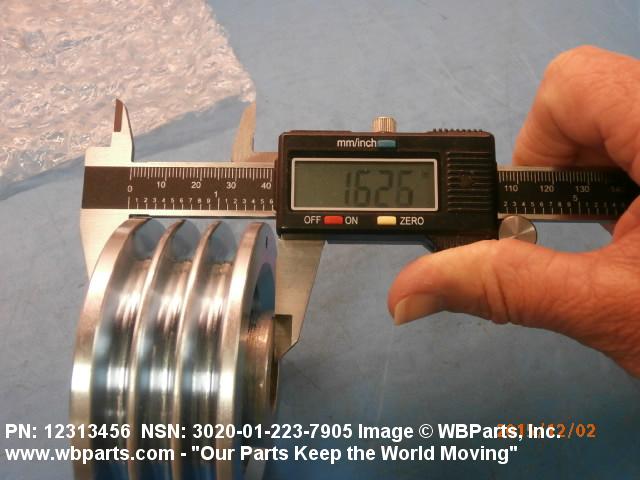

| OVERALL LENGTH | 1.654 INCHES NOMINAL |
| GROOVE SHAPE | V |
| PITCH DIAMETER | 2.750 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.147 INCHES NOMINAL AA END AND 0.334 INCHES NOMINAL BB END |
| BEARINGS | NOT INCLUDED |
| KEYING FACILITY | INCLUDED |
| QUANTITY | 1 |
| INTEGRAL COOLING VANE | NOT INCLUDED |

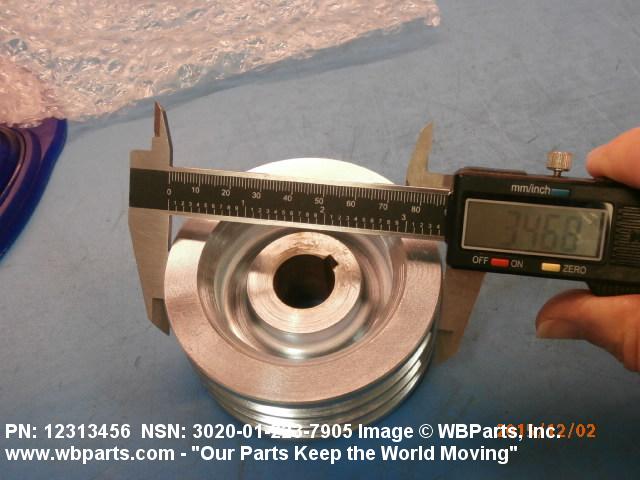

| OUTSIDE DIAMETER | 3.470 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.15 |
| COUNTERBORE FEATURE | NOT INCLUDED |
| GROOVE QUANTITY | 3 |
| LIGHTENING HOLE | NOT INCLUDED |

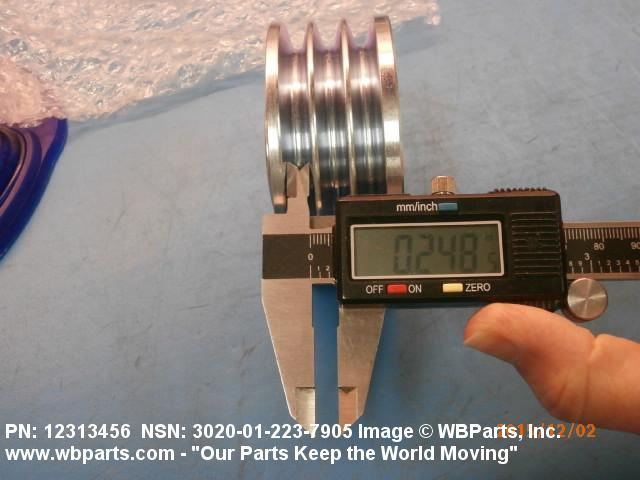

| GROOVE DEPTH | 0.250 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| KEYING FACILITY TYPE | KEYWAY |
| BORE TYPE | STRAIGHT |
| MATERIAL AND LOCATION | STEEL, CARBON OVERALL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.500 INCHES NOMINAL BOTH ENDS |
| BORE DIAMETER | 0.782 INCHES NOMINAL |
| GROOVE WIDTH | 0.370 INCHES NOMINAL |
| DESIGN FORM | WEBBED |

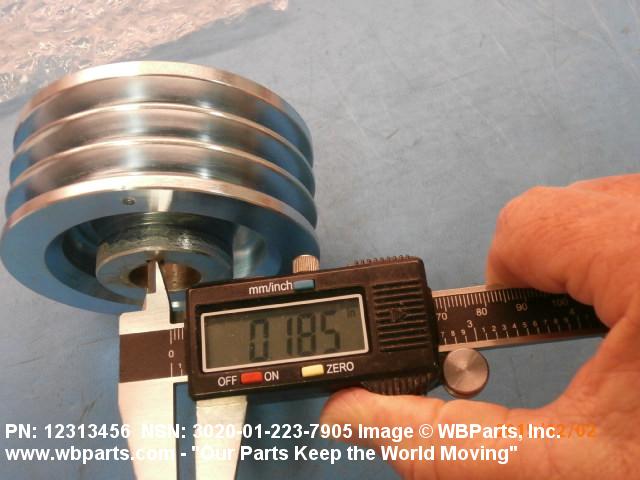

| KEYWAY WIDTH | 0.189 INCHES NOMINAL |
| BORE LENGTH | 1.320 INCHES NOMINAL |
| SPLIT HUB FEATURE | NOT INCLUDED |
| BORE FEATURE | INCLUDED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
