NSN 3020-01-348-8072 6405258, 6405258-42, 752640525842
Product Details | BEVEL GEAR
3020-01-348-8072 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 6405258, 6405258-42, 752640525842, 752-6405258-42, 3020-01-348-8072, 01-348-8072, 3020013488072, 013488072, 640525842
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | 16 NOV 1991 | 01-348-8072 | 05463 ( GEAR, BEVEL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-348-8072
Related Products | NSN 3020-01-348-8072
Technical Data | NSN 3020-01-348-8072
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
TEETH QUANTITY | 24 |
TEETH TYPE | STRAIGHT |
TOOTH DIRECTION | LEFT |
PRESSURE ANGLE | 20.0000 DEGREES |
PITCH ANGLE | 45.0000 DEGREES |
STYLE DESIGNATOR | 2 PROTRUDING HUB |
PITCH DIAMETER | 4.0000 INCHES NOMINAL |
NOMINAL OUTSIDE DIAMETER | 4.219 INCHES |
FACE NOMINAL WIDTH | 0.849 INCHES |
NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 1.193 INCHES FIRST END |

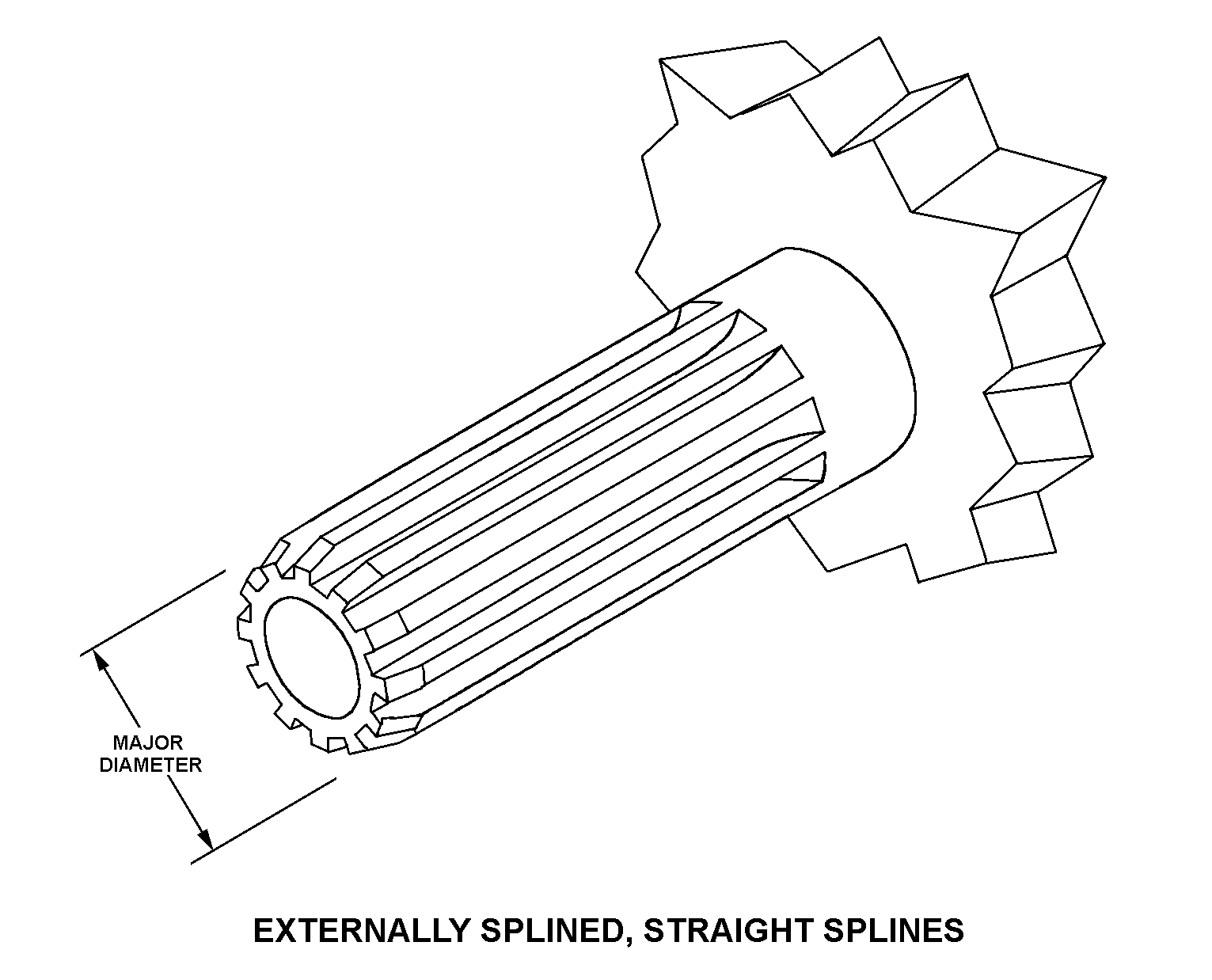

HUB STYLE DESIGNATOR | 7 EXTERNALLY SPLINED, STRAIGHT SPLINES FIRST END |
HUB SPLINE QUANTITY | 10 FIRST END |
HUB SPLINE NOMINAL MAJOR DIAMETER | 1.375 INCHES FIRST END |
BODY STYLE | 1 PLAIN, SOLID |
