Product Details | SHAFT COLLAR
3040-00-254-4893 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.202304000005340000000
Part Alternates: SCB34495, SC-B-34495, 77A044, M121 , 3040-00-254-4893, 00-254-4893, 3040002544893, 002544893
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-254-4893 | 13743 ( COLLAR, SHAFT ) |
Drawings & Photos | NSN 3040-00-254-4893
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-254-4893
3040-00-254-4911, 3040-00-254-6083, 3040-00-254-6090, 3040-00-254-6112, 3040-00-254-6133
Technical Data | NSN 3040-00-254-4893

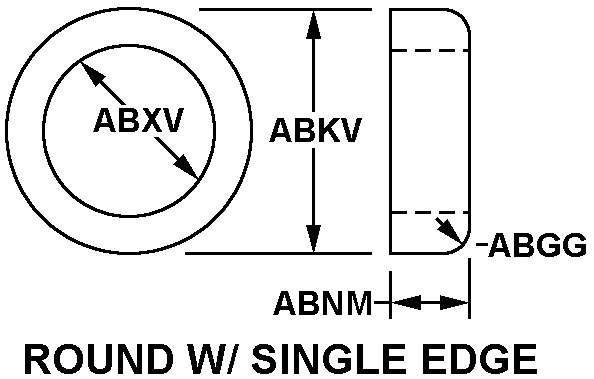

| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, QQ-B-626, ALLOY 360, 1/2H |
| SURFACE TREATMENT | CHROME, MIL-F-14072 |
| STYLE DESIGNATOR | A3 ROUND W/ROUNDED EDGE |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| THICKNESS | 0.437 INCHES NOMINAL |
| BORE DIAMETER | 0.2520 INCHES MINIMUM AND 0.2540 INCHES MAXIMUM |
| RADIUS | 0.125 INCHES NOMINAL |
| SECURING HOLE QUANTITY | 1 |
| SECURING HOLE TYPE AND LOCATION | THREADED SINGLE HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | SINGLE HOLE UNC |
| NOMINAL THREAD SIZE AND LOCATION | 0.164 INCHES SINGLE HOLE |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SC-B-34495 |
