Product Details | SHOULDERED SHAFT
3040-01-007-9587 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 10279746, 3040-01-007-9587, 01-007-9587, 3040010079587, 010079587
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 15 AUG 1975 | 01-007-9587 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-007-9587
Cross Reference | NSN 3040-01-007-9587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10279746 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-01-007-9587
3040-01-008-0158, 3040-01-008-0160, 3040-01-008-0161, 3040-01-008-0189, 3040-01-008-0717
Technical Data | NSN 3040-01-007-9587
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CLASS FS 303,COND A FED SPEC SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 9 INTERNAL THREADED |
| FIRST END DIAMETER | 0.1870 INCHES NOMINAL |
| FIRST END INTERNAL THREAD LENGTH | 0.250 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

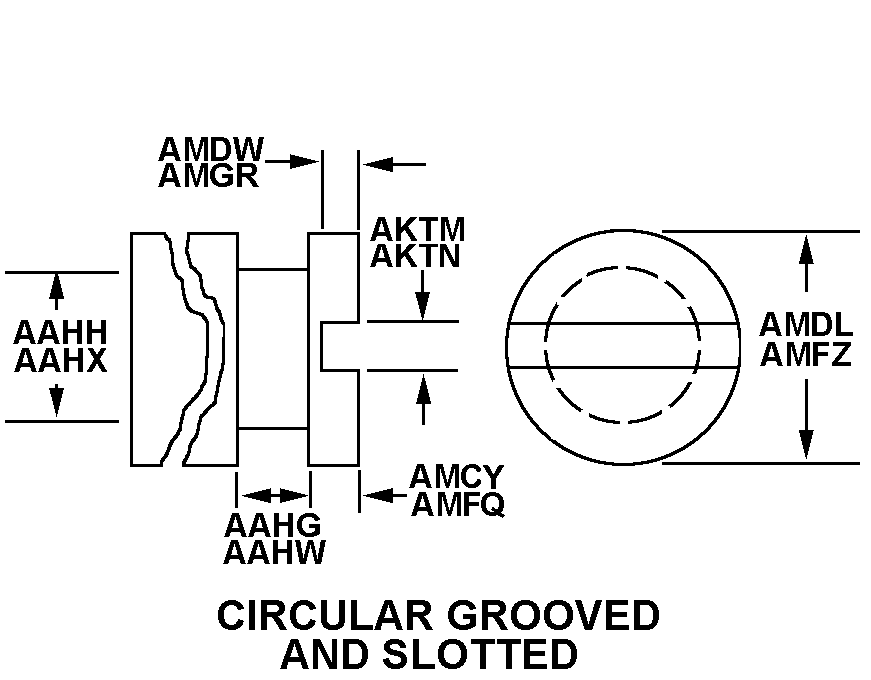

| SECOND END STYLE | 36 CIRCULAR GROOVED AND SLOTTED |
| SECOND END GROOVE WIDTH | 0.1800 INCHES NOMINAL |
| SECOND END GROOVE DIAMETER | 0.1750 INCHES NOMINAL |
| SECOND END DISTANCE FROM END TO GROOVE | 0.217 INCHES NOMINAL |
| SECOND END DIAMETER | 0.1870 INCHES NOMINAL |
| SECOND END SLOT DEPTH | 0.060 INCHES NOMINAL |
| SECOND END SLOT WIDTH | 0.040 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.440 INCHES NOMINAL |
| STEP QUANTITY | 2 |
