3110-00-023-7979 - AIRFRAME BALL BEARING, MS20200KP6, MS276406, MS27640-6

Product Details | AIRFRAME BALL BEARING

3110-00-023-7979 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS20200KP6, MS276406, MS27640-6, AN200KP6, AN20KP6, AS27640, K65945911, K659459-11, K65945915, K659459-15, KP6FS464, KP6, 3110-00-023-7979, 00-023-7979, 3110000237979, 000237979

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	05 JAN 1972	00-023-7979	00041 ( BEARING, BALL, AIRFRAME )

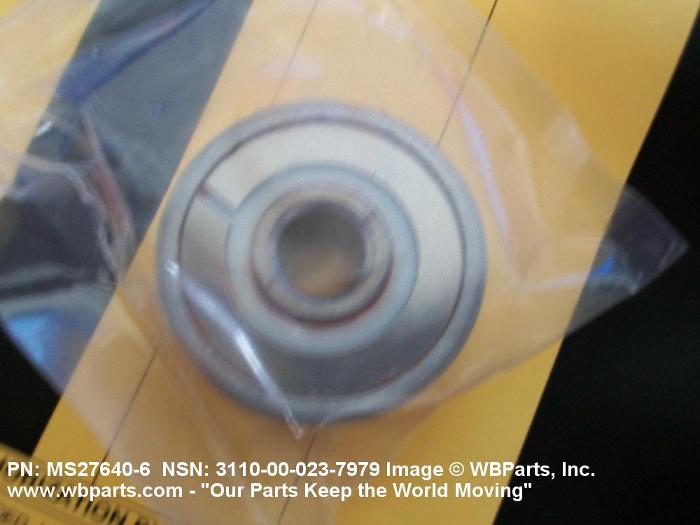

Drawings & Photos | NSN 3110-00-023-7979

Part Number	Request Date	QTY	Origin
3110-00-023-7979	2024-02-23	180	DIBBS
3110-00-023-7979	2024-02-15	180	DIBBS
3110-00-023-7979	2023-10-12	141	DIBBS
3110-00-023-7979	2023-07-16	623	DIBBS
3110-00-023-7979	2023-05-22	256	DIBBS
3110-00-023-7979	2023-04-16	148	DIBBS
3110-00-023-7979	2023-01-16	136	DIBBS
3110-00-023-7979	2022-10-16	256	DIBBS
3110-00-023-7979	2022-07-13	141	DIBBS
3110-00-023-7979	2018-12-04	178	DIBBS
MS276406	2018-08-23	150	United States
AN200KP6	2018-08-13	2	United States
AN200KP6	2018-08-13	5	United States
3110-00-023-7979	2018-03-27	516	DIBBS
3110-00-023-7979	2018-03-18	1129	DIBBS
AN200KP6	2015-08-17	1	United States
3110-00-023-7979	2015-03-12	43	KR
MS276406	2014-05-29	3	Sri Lanka
3110-00-023-7979	2013-03-13	336	DIBBS
3110-00-023-7979	2012-09-23	160	DIBBS
KP6	2012-01-04	6	United States
3110-00-023-7979	2011-07-06	8	United States
3110-00-023-7979	2010-08-04	688	DIBBS
3110-00-023-7979	2010-06-21	77	DIBBS
3110-00-023-7979	2010-05-13	801	DIBBS
3110-00-023-7979	2010-04-12	10	US
3110-00-023-7979	2010-03-02	250	US
3110-00-023-7979	2010-01-11	95	DIBBS
3110-00-023-7979	2009-05-18	33	US
MS20200KP6	2009-01-29	40	United States
MS276406	2008-01-25	40	Singapore
3110-00-023-7979	2007-12-04	24	US
3110-00-023-7979	2007-03-27	192	DIBBS

Cross Reference | NSN 3110-00-023-7979

Part Number	Cage Code	Manufacturer
AN200KP6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN20KP6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS27640	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
K659459-11	84955	KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION
K659459-15	84955	KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION
KP6	21760	SCHATZ BEARING CORPORATION
KP6	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
KP6FS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP6FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS20200KP6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27640-6	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27640-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-023-7979

Compare

Related Products | NSN 3110-00-023-7979

3110-00-023-8283, 3110-00-024-2029, 3110-00-024-5813, 3110-00-024-5817, 3110-00-024-5876

Technical Data | NSN 3110-00-023-7979

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	0.3750 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.4375 INCHES NOMINAL
OUTER RING WIDTH	0.4690 INCHES NOMINAL
INNER RING WIDTH	0.6200 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,INTERNAL RADIAL CLEARANCE 0.0004 IN. MIN,0.0010 IN. MAX HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG. F,RADIAL AND LATERAL ECCENTRICITY INNER RING 0.0010 IN. OUTERRING 0.0016 IN.

Restrictions/Controls & Freight Information | NSN 3110-00-023-7979

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
