Product Details | JOURNAL ROLLER BEARING
3110-00-072-9913 An item in which the shaft or revolving part turns upon hardened rollers usually contained in a cage. It must contain an inner or outer race, or both. For items without a race(s), see RETAINER AND ROLLER, BEARING.
Part Alternates: A160420, HP94520, SK-2887-A-PIECE 13, SK2887APIECE13, 3110-00-072-9913, 00-072-9913, 3110000729913, 000729913
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-072-9913 | 00017 ( BEARING, ROLLER, JOURNAL ) |

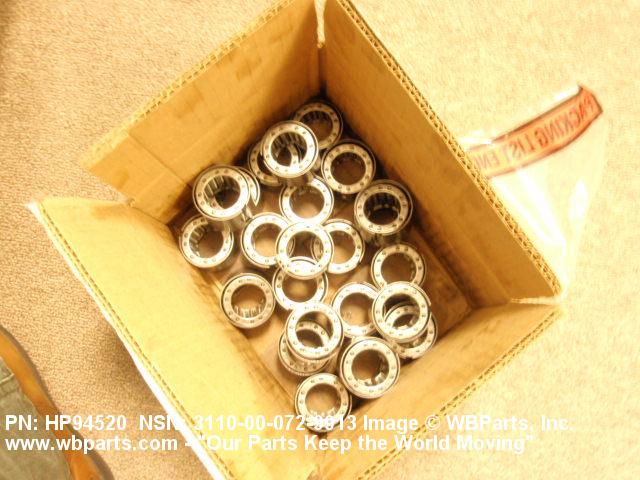

Drawings & Photos | NSN 3110-00-072-9913
Demand History | NSN 3110-00-072-9913
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3110-00-072-9913
3110-00-072-9914, 3110-00-072-9915, 3110-00-072-9917, 3110-00-072-9972, 3110-00-072-9990
Technical Data | NSN 3110-00-072-9913
| Characteristic | Specifications |
|---|---|

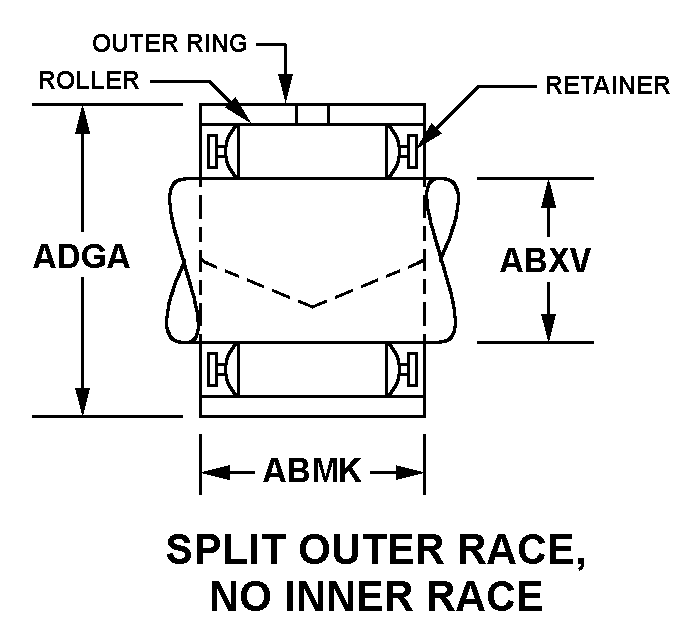

| STYLE DESIGNATOR | 314 SPLIT OUTER RACE, NO INNER RACE |
| OVERALL WIDTH | 1.2500 INCHES NOMINAL |
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.5625 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCES FOR JOURNAL BEARINGS |
Restrictions/Controls & Freight Information | NSN 3110-00-072-9913
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-072-9913
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
