3110-00-100-4450 - TAPERED ROLLER BEARING, MS1908119, MS19081-19, AA59649

Product Details | TAPERED ROLLER BEARING

3110-00-100-4450 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.

Part Alternates: MS1908119, MS19081-19, AA59649, A-A-59649, AA59649044, AA59649-044, SP7AS, SP-7AS, FFB187/01-044, FF-B-187/1, FFB18701044, FFB1871, 10A4920IT26, 17801729, 1780-1729, 26785112, 267851-12, 3110-00-100-4450, 00-100-4450, 3110001004450, 001004450

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-100-4450	00021 ( BEARING, ROLLER, TAPERED )

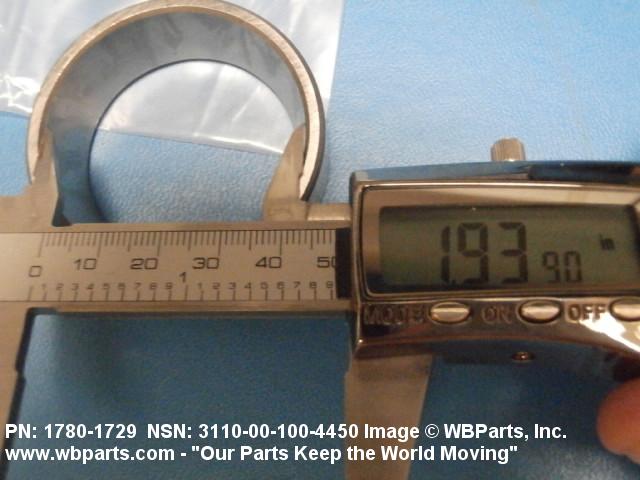

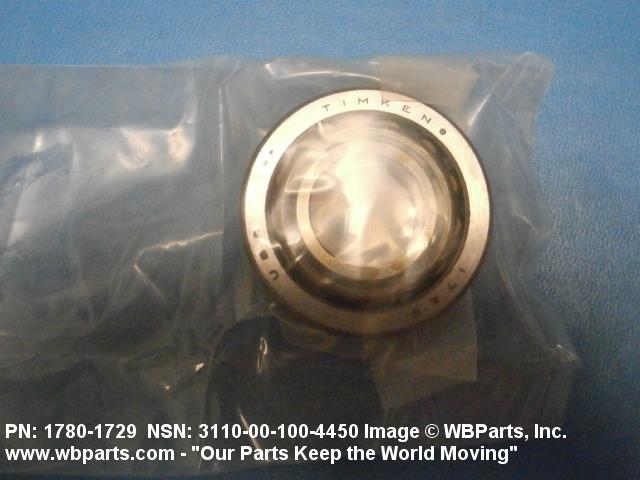

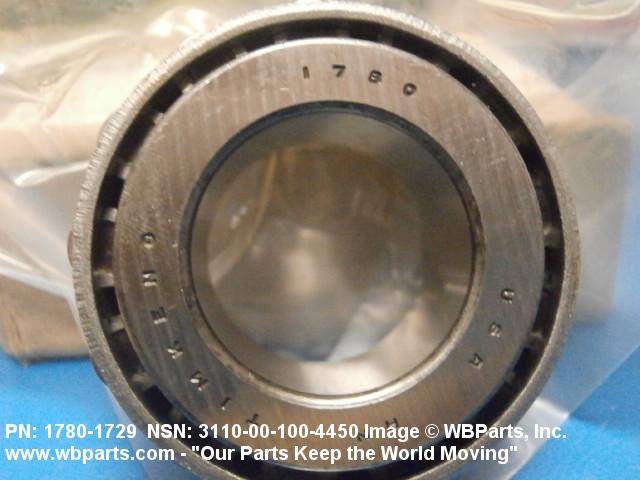

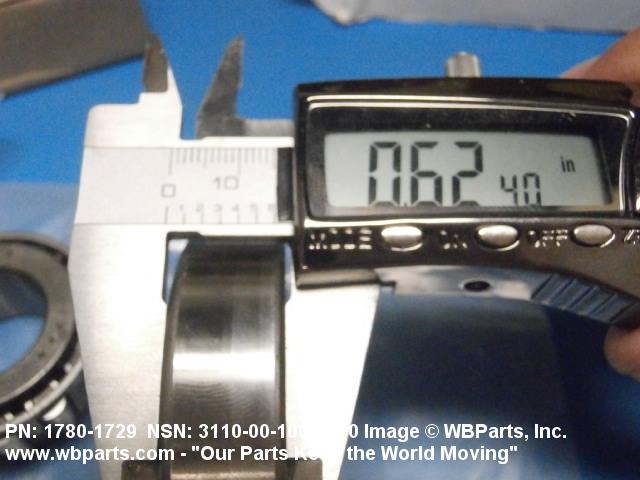

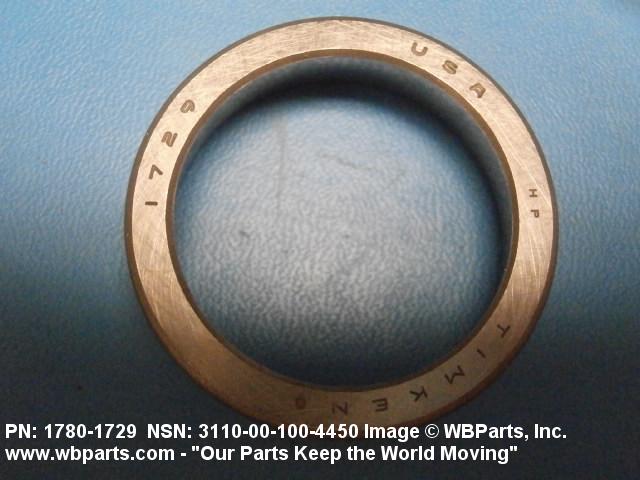

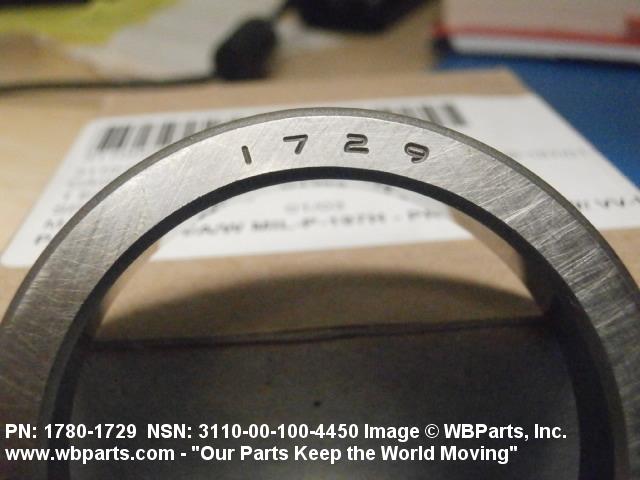

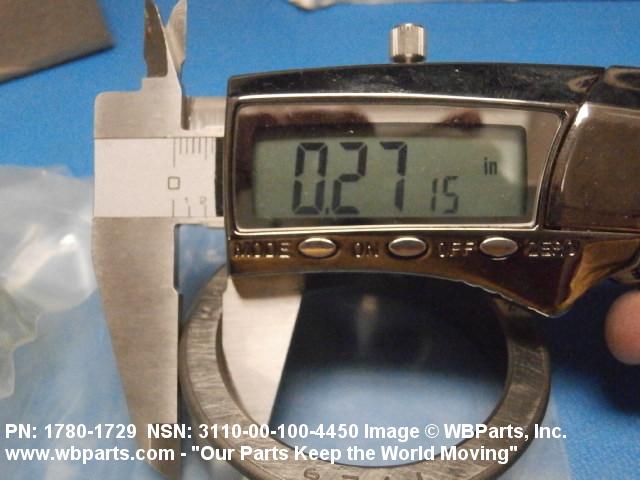

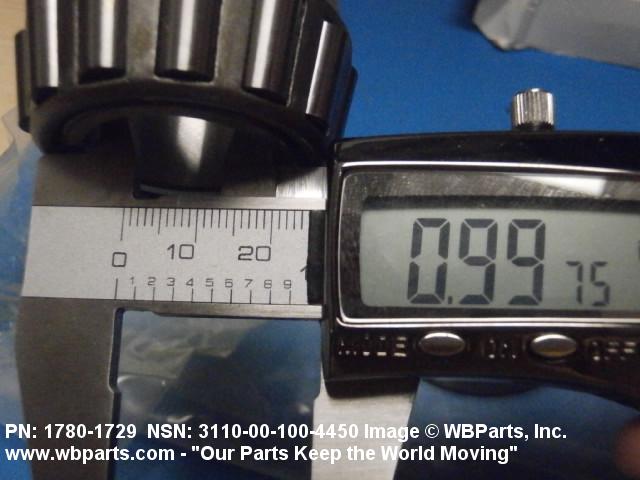

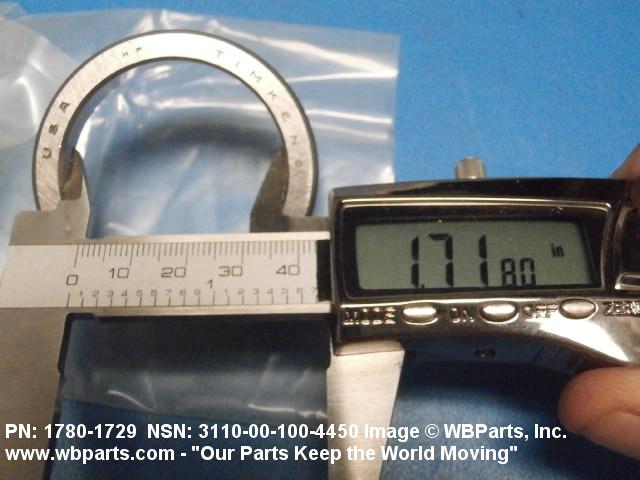

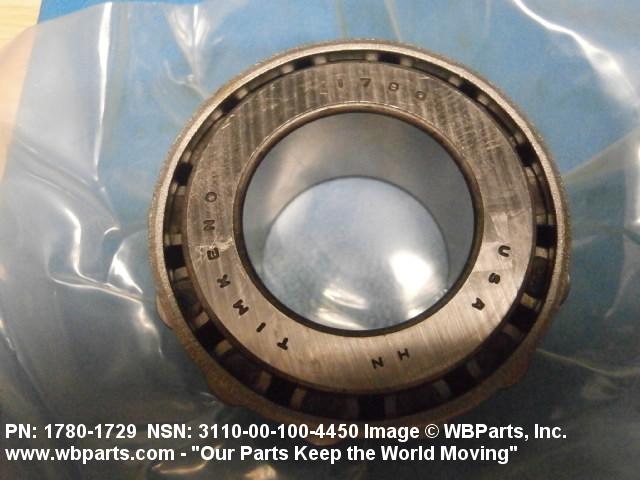

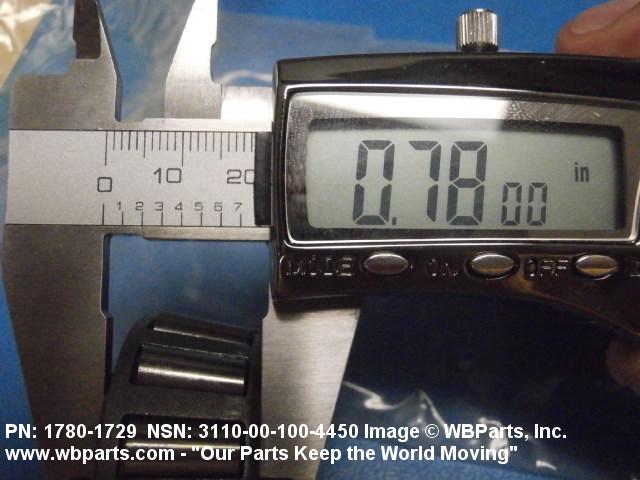

Drawings & Photos | NSN 3110-00-100-4450

Part Number	Request Date	QTY	Origin
3110-00-100-4450	2024-04-17	400	US
3110-00-100-4450	2019-09-16	258	DIBBS
3110-00-100-4450	2019-09-08	258	DIBBS
MS1908119	2018-01-31	50	US
3110-00-100-4450	2015-06-10	405	DIBBS
3110-00-100-4450	2015-06-09	125	United States
3110-00-100-4450	2015-02-04	437	DIBBS
3110-00-100-4450	2015-01-21	273	DIBBS
3110-00-100-4450	2014-12-10	273	DIBBS
3110-00-100-4450	2014-04-10	50	US
AA59649	2013-01-11	12	US
3110-00-100-4450	2009-11-03	272	DIBBS
3110-00-100-4450	2009-10-08	213	DIBBS
3110-00-100-4450	2009-09-01	123	DIBBS
3110-00-100-4450	2009-06-08	90	DIBBS

Cross Reference | NSN 3110-00-100-4450

Part Number	Cage Code	Manufacturer
10A4920IT26	79500	WESTINGHOUSE ELECTRIC CORP
1780-1729	60038	TIMKEN CORPORATION, THE
267851-12	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
A-A-59649	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59649-044	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
FF-B-187/1	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB187/01-044	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS19081-19	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SP-7AS	05415	LINDE LIFT TRUCK CORP.

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-100-4450

Compare

Related Products | NSN 3110-00-100-4450

3110-00-100-4452, 3110-00-100-4453, 3110-00-100-4454, 3110-00-100-4455, 3110-00-100-4457

Technical Data | NSN 3110-00-100-4450

Characteristic	Specifications
MATERIAL	STEEL COMP 4320 OR STEEL COMP 4620 OR STEEL COMP 8620 OR STEEL COMP E52100 CONE STEEL COMP 4320 OR STEEL COMP 4620 OR STEEL COMP 8620 OR STEEL COMP E52100 CUP STEEL RETAINER STEEL COMP 4320 OR STEEL COMP 4620 OR STEEL COMP 8620 OR STEEL COMP E52100 ROLLER
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A322 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A322 ASSN STD 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE CONE ASTM A322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A322 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A322 ASSN STD 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE CUP ASTM A322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A322 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A322 ASSN STD 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE ROLLER
STYLE DESIGNATOR	350 STRAIGHT BORE, NORMAL ANGLE
OVERALL WIDTH	0.7625 INCHES NOMINAL
BORE DIAMETER	1.0000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	2.2400 INCHES NOMINAL
BACKFACE CORNER RADIUS	0.0460 INCHES NOMINAL
STANDOUT WIDTH	0.1375 INCHES NOMINAL
CONE CORNER RADIUS	0.0310 INCHES NOMINAL
CONE WIDTH	0.7810 INCHES NOMINAL
CUP WIDTH	0.6250 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION	AFBMA CLASS 2
RETAINER FABRICATION METHOD	PRESSED
ALIGNMENT TYPE	RIGID
INTERNAL FIT-UP DESIGNATION	STANDARD
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59649-044
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-B-187/1

Restrictions/Controls & Freight Information | NSN 3110-00-100-4450

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-100-4450

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
