3110-00-116-4086 Request for Quote Plus Technical Data

Manufacturing Part Numbers under this NSN: FF-B-2844/05, FFB2844/05AD1XX, SR33PPDK36-36, SR33PPDK36-74, SSR-3ZZRA3P36-LY15


3110-00-116-4086 Characteristics Data
MRC	Criteria	Characteristic
MATT	MATERIAL	STEEL CORROSION RESISTING OVERALL
STYL	STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE

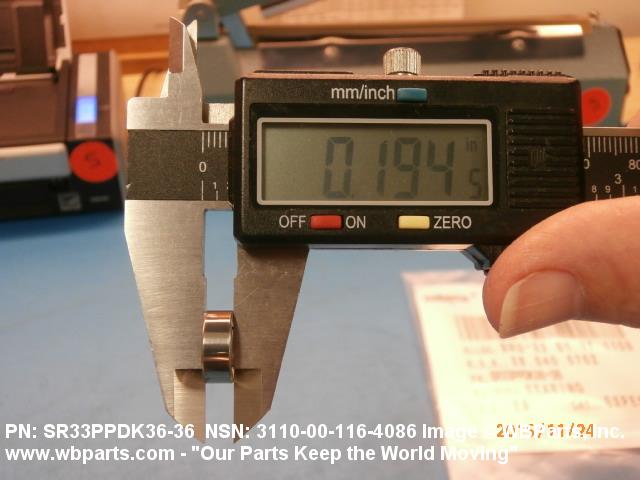

ABMK	OVERALL WIDTH	0.1960 INCHES NOMINAL

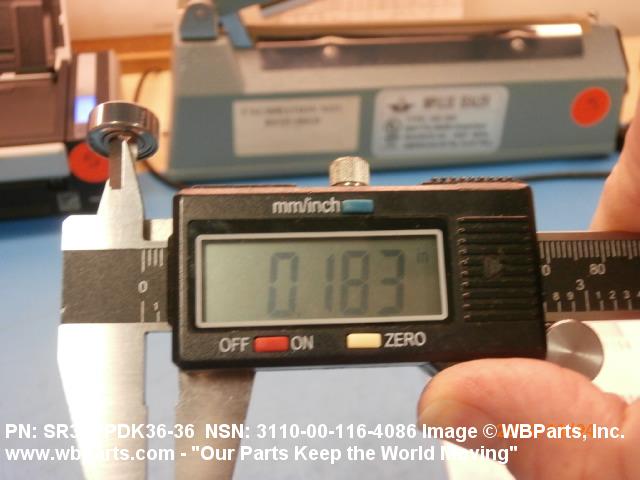

ABXV	BORE DIAMETER	0.1875 INCHES NOMINAL

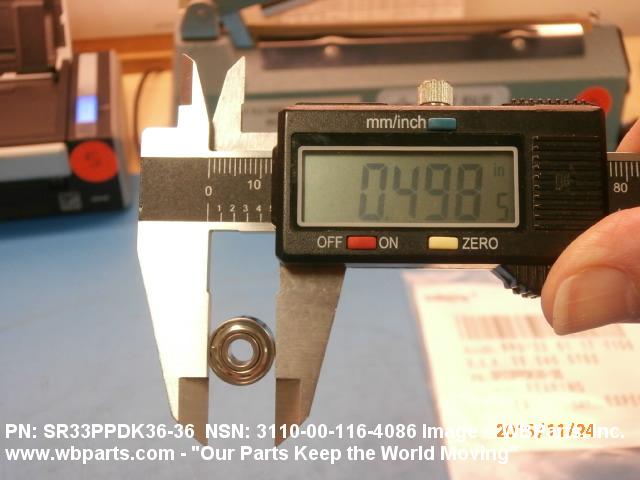

ADGA	OVERALL OUTSIDE DIAMETER	0.5000 INCHES NOMINAL
ADZG	LUBRICATION MATERIAL	GREASE
LMDC	LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	G300, FSCM 24446 MFR REF SINGLE MATERIAL RESPONSE
CTFZ	STANDARD TOLERANCE DESIGNATION	ABEC NO.3
AGZD	BORE SHAPE	STRAIGHT
AGYE	SURFACE FINISH	GROUND
AGYF	RETAINER FABRICATION METHOD	PRESSED
AGYK	SHIELD QUANTITY	2
AGZC	LOAD DIRECTION	RADIAL
AKVV	INTERNAL CLEARANCE	0.0003 INCHES MINIMUM RADIAL AND 0.0006 INCHES MAXIMUM RADIAL
SR-1	MANUFACTURERS CODE	81348
SR-1	NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-B-2844/05
SR-1	MANUFACTURERS CODE	81348
SR-1	DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB2844/05AD1XX
