3110-00-142-4315 - AIRFRAME BALL BEARING, AN200KS5, AN200KS5ANG25, AN200KS5MILG3278A

Product Details | AIRFRAME BALL BEARING

3110-00-142-4315 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: AN200KS5, AN200KS5ANG25, AN200KS5MILG3278A, N16B500720, N16B5007-20, KS5ANG25, KS5FS160, KS5, 3110-00-142-4315, 00-142-4315, 3110001424315, 001424315

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-142-4315	00041 ( BEARING, BALL, AIRFRAME )

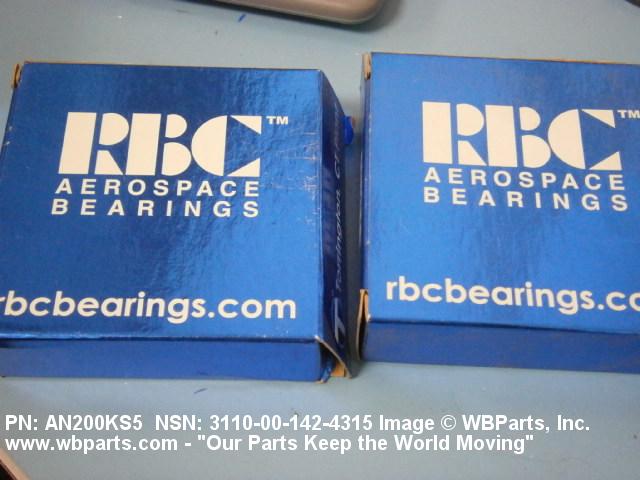

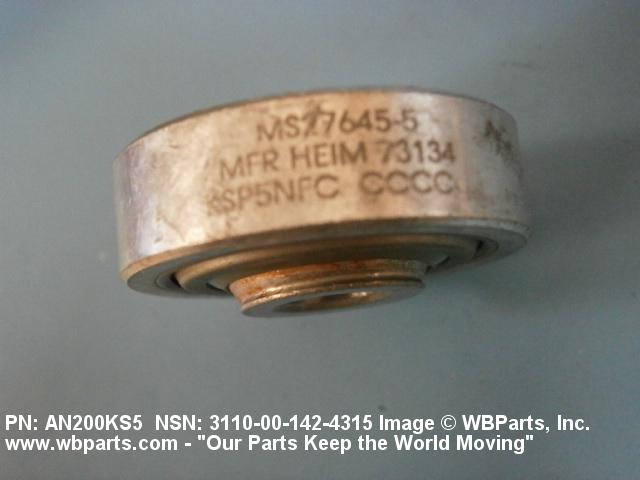

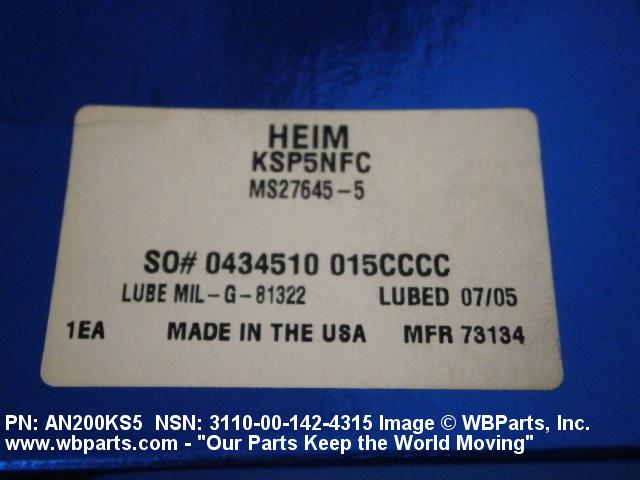

Drawings & Photos | NSN 3110-00-142-4315

Part Number	Request Date	QTY	Origin
AN200KS5	2019-06-03	11	US
AN200KS5	2018-11-17	2	PA
AN200KS5	2018-05-18	2	US
AN200KS5	2018-05-06	1	US
AN200KS5	2018-05-01	2	US
AN200KS5	2017-01-26	1	US
AN200KS5	2012-01-23	2	Italy
KS5FS160	2012-01-23	0	Italy
AN200KS5	2012-01-16	2	Italy
3110-00-142-4315	2010-04-27	2	US
AN200KS5	2009-09-08	1	US

Cross Reference | NSN 3110-00-142-4315

Part Number	Cage Code	Manufacturer
AN200KS5	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN200KS5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN200KS5ANG25	80059	JOINT AIRCRAFT COMMITTEE
AN200KS5MILG3278A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
KS5	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KS5	21760	SCHATZ BEARING CORPORATION
KS5	43991	FAG BEARINGS CORPORATION
KS5	52676	SKF USA INC.
KS5ANG25	21760	SCHATZ BEARING CORPORATION
KS5FS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KS5FS160	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
N16B5007-20	80133	NAVY ELECTRONICS SUPPLY OFFICE

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-142-4315

Compare

Related Products | NSN 3110-00-142-4315

3110-00-142-4316, 3110-00-142-4317, 3110-00-142-4318, 3110-00-142-4319, 3110-00-142-4324

Technical Data | NSN 3110-00-142-4315

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OVERALL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	1.2495 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM
OUTER RING WIDTH	0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM
INNER RING WIDTH	0.5530 INCHES MINIMUM AND 0.5580 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-3278 MIL SPEC SINGLE MATERIAL RESPONSE
SHIELD QUANTITY	2
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	10.0 DEGREE SELF ALIGNMENT IN EITHER DIRECTION
MANUFACTURERS CODE	81352
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN200KS5
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN200KS5
