Product Details | BEARING ADAPTER SLEEVE
3110-00-191-0476 An adapter sleeve used to mount and locate an antifriction bearing on a straight shaft permitting wide tolerances of shaft diameter and making it unnecessary to heat the bearing or use a press for mounting.
Part Alternates: SNW15, SNW15X2 7-16, SNW15X2716, 0920033, 09-20033, 3110-00-191-0476, 00-191-0476, 3110001910476, 001910476
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-191-0476 | 00025 ( ADAPTER SLEEVE, BEARING ) |

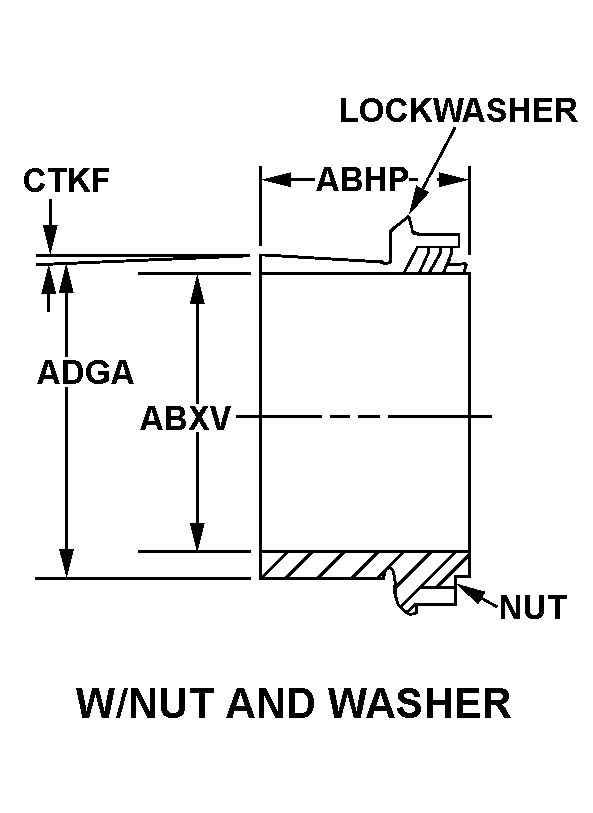

Drawings & Photos | NSN 3110-00-191-0476
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3110-00-191-0476
3110-00-191-0480, 3110-00-191-0481, 3110-00-191-0485, 3110-00-191-0490, 3110-00-191-0491
Technical Data | NSN 3110-00-191-0476
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 2 WITH NUT AND WASHER |
| TAPER | 1.0000 PER FOOT IN INCHES NOMINAL |
| OVERALL LENGTH | 2.3750 INCHES NOMINAL |
| BORE DIAMETER | 2.4375 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.8750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-00-191-0476
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-00-191-0476
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
