Product Details | ROD END ROLLER BEARING
3110-00-295-8805 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: SF44A, SF4-4A, 3110-00-295-8805, 00-295-8805, 3110002958805, 002958805
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 28 SEP 1973 | 00-295-8805 | 00050 ( BEARING, ROLLER, ROD END ) |
Drawings & Photos | NSN 3110-00-295-8805
Cross Reference | NSN 3110-00-295-8805
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SF4-4A | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-295-8805
Related Products | NSN 3110-00-295-8805
3110-00-295-9108, 3110-00-296-3847, 3110-00-296-6208, 3110-00-296-7215, 3110-00-296-9531
Technical Data | NSN 3110-00-295-8805
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340H INNER RING STEEL COMP E4340H OUTER RING STEEL COMP E4340H ROD END BODY STEEL COMP E4340H ROLLER RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING 66 FED STD SINGLE MATERIAL RESPONSE ROD END BODY 66 FED STD SINGLE MATERIAL RESPONSE ROLLER |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 468 SINGLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 2.1150 INCHES MINIMUM AND 2.1950 INCHES MAXIMUM |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.7500 INCHES MINIMUM AND 0.8000 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3350 INCHES MINIMUM AND 0.3500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 1.3650 INCHES MINIMUM AND 1.3950 INCHES MAXIMUM |

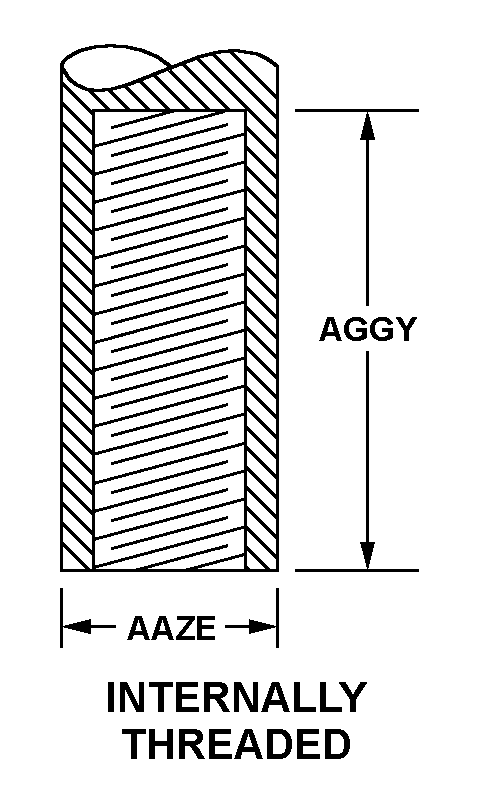

| SHANK STYLE | 653 INTERNALLY THREADED |
| SHANK DIAMETER | 0.4370 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.4370 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.7500 INCHES MINIMUM AND 0.8100 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | WITH MEANS FOR RELUBRICATION |
Restrictions/Controls & Freight Information | NSN 3110-00-295-8805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
