3110-00-554-3256 - ANNULAR BALL BEARING, M8000M163, R102ZZRDA1P17LG68KB, R-102ZZRDA1P17LG68KB

Product Details | ANNULAR BALL BEARING

3110-00-554-3256 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: M8000M163, R102ZZRDA1P17LG68KB, R-102ZZRDA1P17LG68KB, WA13422, WA134-22, FFB171/03J02C2C, FFB17103J02C2C, 11830451-2, 102KSFF54GRS, 10606681-1, 111101510X2004, 111X01510X2004, 111X01510X2101, 114C26577, 114C2657-7, 11637580, 6002-2Z/LHT64, 60022ZLHT64, 6102PPTFMILG3278A, 773L02XRIE, 9102FF1L1, 9102FF-1L1, 9102KDDC4FS160, 9102KDDMILG3278A, 3110-00-554-3256, 00-554-3256, 3110005543256 , 005543256, 106066811, 118304512

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-554-3256	00014 ( BEARING, BALL, ANNULAR )

Drawings & Photos | NSN 3110-00-554-3256

Part Number	Request Date	QTY	Origin
3110-00-554-3256	2024-01-23	638	United States
3110-00-554-3256	2023-08-25	360	KR
3110-00-554-3256	2022-01-27	1	NO
3110-00-554-3256	2021-05-11	3	Turkey
3110-00-554-3256	2020-06-28	21	SA
114C26577	2020-03-05	2	United States
3110-00-554-3256	2019-04-30	1	DIBBS-RFPs
114C26577	2017-06-29	25	United States
102KSFF54GRS	2017-02-22	27
3110-00-554-3256	2017-02-22	27	MANUAL
118304512	2015-11-17	18	US
118304512	2015-11-17	1	US
3110-00-554-3256	2014-07-13	7490	DIBBS
3110-00-554-3256	2014-07-01	1	DIBBS-RFPs
3110-00-554-3256	2014-05-01	6748	DIBBS
3110-00-554-3256	2014-04-03	6194	DIBBS
3110-00-554-3256	2013-12-09	1	DIBBS-RFPs
114C26577	2013-09-09	400	CA
3110-00-554-3256	2013-06-10	4090	DIBBS
3110-00-554-3256	2013-06-10	2858	DIBBS
3110-00-554-3256	2010-09-15	1555	US
3110-00-554-3256	2010-09-13	1555	DIBBS
3110-00-554-3256	2010-07-20	1835	DIBBS
3110-00-554-3256	2010-05-12	2250	DIBBS
3110-00-554-3256	2010-04-19	2293	DIBBS
3110-00-554-3256	2009-12-09	1459	DIBBS
3110-00-554-3256	2009-06-24	3919	DIBBS
3110-00-554-3256	2008-11-19	6250	DIBBS
9102KDDC4FS160	2008-02-11	36	us
3110-00-554-3256	2007-11-19	33	DIBBS
3110-00-554-3256	2007-11-09	1665	DIBBS
114C26577	2007-10-16	545	United States
3110-00-554-3256	2007-09-17	2779	DIBBS
3110-00-554-3256	2007-08-23	2057	DIBBS
3110-00-554-3256	2007-06-06	4082	DIBBS

Cross Reference | NSN 3110-00-554-3256

Part Number	Cage Code	Manufacturer
102KSFF54GRS	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
10606681-1	18876	U S ARMY AVIATION AND MISSILE COMMAND
111101510X2004	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
111X01510X2004	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
111X01510X2101	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
114C2657-7	05606	GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)
114C2657-7	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
114C2657-7	21760	SCHATZ BEARING CORPORATION
114C2657-7	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
114C2657-7	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
114C2657-7	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
114C2657-7	52676	SKF USA INC.
114C2657-7	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
11637580	19205	SPRINGFIELD ARMORY
11830451-2	19204	ARMY UNITED STATES DEPARTMENT OF THE
3110005543256	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6002-2Z/LHT64	52676	SKF USA INC.
6102PPTFMILG3278A	43991	FAG BEARINGS CORPORATION
773L02XRIE	24617	GENERAL MOTORS CORP
9102FF-1L1	21760	SCHATZ BEARING CORPORATION
9102KDDC4FS160	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
9102KDDMILG3278A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
FFB171/03J02C2C	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB171/03J02C2C	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
M8000M163	28298	SMITH AND SMITH AIRCRAFT CO
R-102ZZRDA1P17LG68KB	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
WA134-22	08484	BREEZE-EASTERN CORPORATION

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-554-3256

Compare

Related Products | NSN 3110-00-554-3256

3110-00-554-3257, 3110-00-554-3258, 3110-00-554-3259, 3110-00-554-3260, 3110-00-554-3261

Technical Data | NSN 3110-00-554-3256

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE

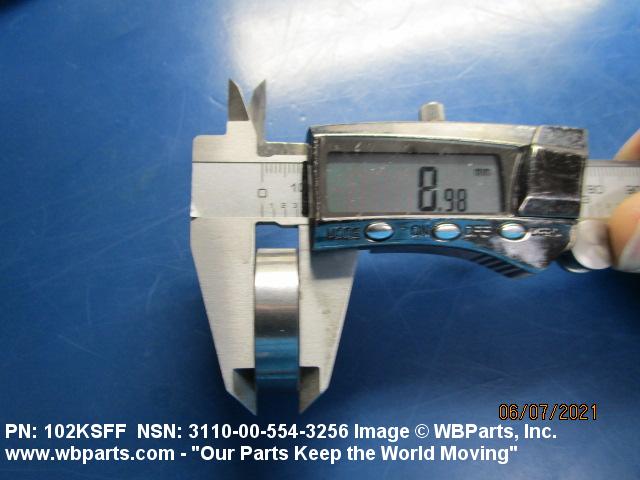

OVERALL WIDTH	9.0 MILLIMETERS NOMINAL

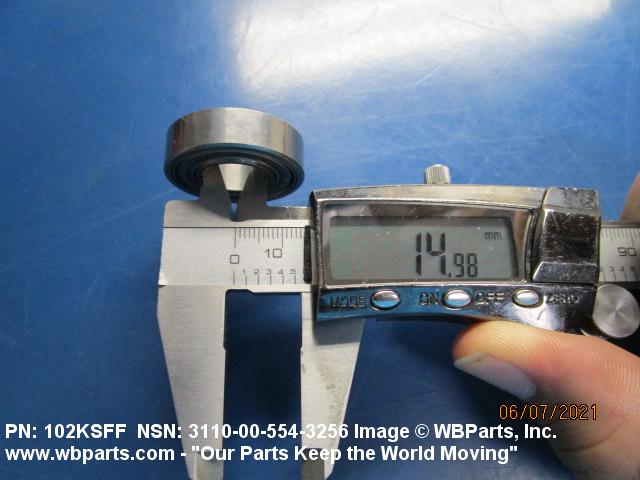

BORE DIAMETER	15.0 MILLIMETERS NOMINAL

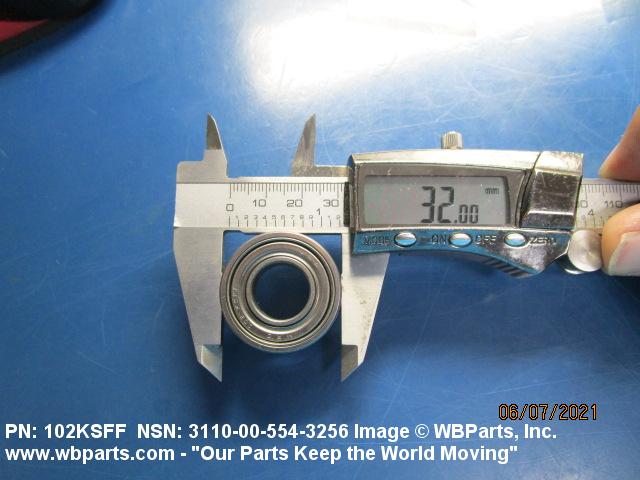

OVERALL OUTSIDE DIAMETER	32.0 MILLIMETERS NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SHIELD QUANTITY	2
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
