Product Details | AIRFRAME BALL BEARING
3110-01-126-8437 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS276475R, MS27647-5R, AS27647, 3110-01-126-8437, 01-126-8437, 3110011268437, 011268437
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 FEB 1982 | 01-126-8437 | 00041 ( BEARING, BALL, AIRFRAME ) |
Drawings & Photos | NSN 3110-01-126-8437
Demand History | NSN 3110-01-126-8437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS276475R | 2024-02-09 | 3 | United States |
| 3110-01-126-8437 | 2023-08-13 | 15 | DIBBS |
| 3110-01-126-8437 | 2023-04-24 | 15 | DIBBS |
| 3110-01-126-8437 | 2023-04-16 | 15 | DIBBS |
| 3110-01-126-8437 | 2023-01-18 | 25 | DIBBS |
| 3110-01-126-8437 | 2022-10-16 | 47 | DIBBS |
| 3110-01-126-8437 | 2022-06-22 | 15 | DIBBS |
| 3110-01-126-8437 | 2022-03-28 | 15 | DIBBS |
| 3110-01-126-8437 | 2022-03-20 | 15 | DIBBS |
| 3110-01-126-8437 | 2020-10-07 | 78 | DIBBS |
| 3110-01-126-8437 | 2019-02-11 | 95 | DIBBS |
| 3110-01-126-8437 | 2017-12-05 | 80 | DIBBS |
| 3110-01-126-8437 | 2016-03-09 | 67 | DIBBS |
| MS276475R | 2012-09-04 | 80 | United States |
| 3110-01-126-8437 | 2012-06-27 | 10 | CO |
| 3110-01-126-8437 | 2010-04-13 | 50 | DIBBS |
| MS276475R | 2010-04-08 | 10 | US |
| 3110-01-126-8437 | 2009-12-01 | 227 | DIBBS |
| 3110-01-126-8437 | 2009-09-08 | 11 | DIBBS |
| 3110-01-126-8437 | 2009-04-07 | 22 | DIBBS |
| 3110-01-126-8437 | 2008-08-28 | 15 | DIBBS |
| 3110-01-126-8437 | 2007-06-23 | 60 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-01-126-8437
Related Products | NSN 3110-01-126-8437
3110-01-126-8863, 3110-01-126-8864, 3110-01-126-9070, 3110-01-126-9071, 3110-01-126-9152
Technical Data | NSN 3110-01-126-8437
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD 1ST MATERIAL RESPONSE OR AMS 3666 ASSN STD 1ST MATERIAL RESPONSE AND AMS 3666 ASSN STD 2ND MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM BALL CADMIUM INNER RING CADMIUM OUTER RING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BALL QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE INNER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING |

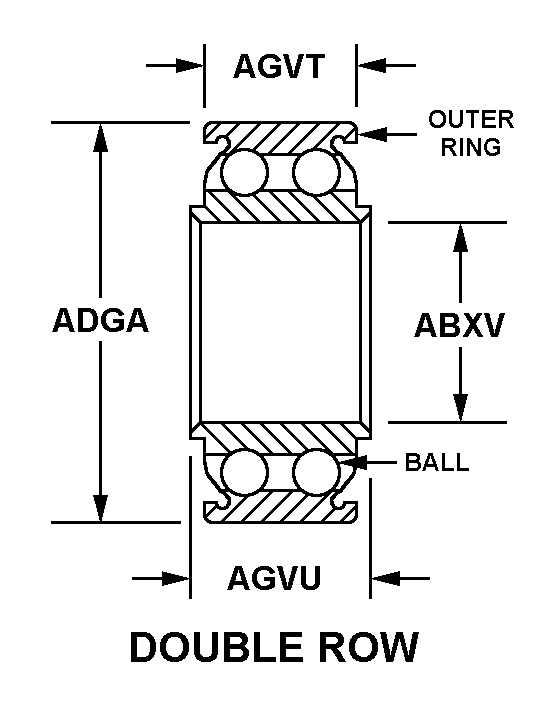

| STYLE DESIGNATOR | 204 DOUBLE ROW |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| OUTER RING WIDTH | 0.8130 INCHES NOMINAL |
| INNER RING WIDTH | 0.9380 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | ANGULAR |
| SPECIAL FEATURES | HEAT STABILIZED FOR OPERATION AT 250 DEG F; 80 PCT FULL OF SPECIFIED LUBRICANT; 0.0002 IN. MIN TO 0.0005 IN. MAX RADIAL PLAY |
Restrictions/Controls & Freight Information | NSN 3110-01-126-8437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-126-8437
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
