3110-01-165-6685 - INNER BEARING RING, MI239, MI-239, SB25063

Product Details | INNER BEARING RING

3110-01-165-6685 The inner component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.

Part Alternates: MI239, MI-239, SB25063, SB2506-3, IR44845210, IR448452-10, 3110-01-165-6685, 01-165-6685, 3110011656685, 011656685

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	03 NOV 1983	01-165-6685	00028 ( RING, BEARING, INNER )

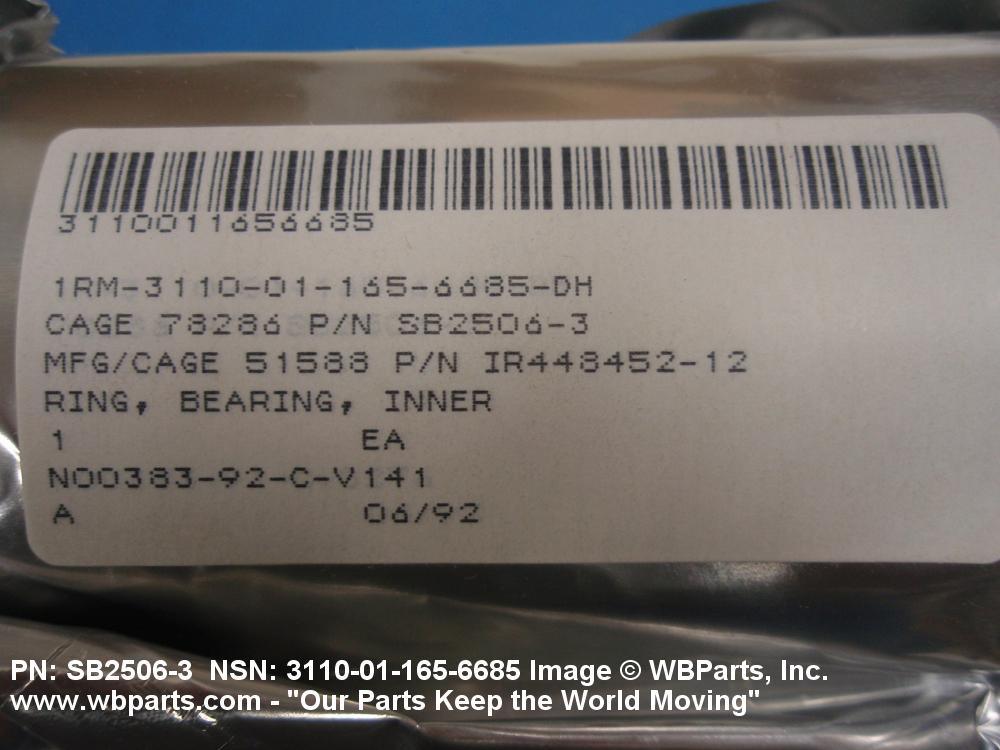

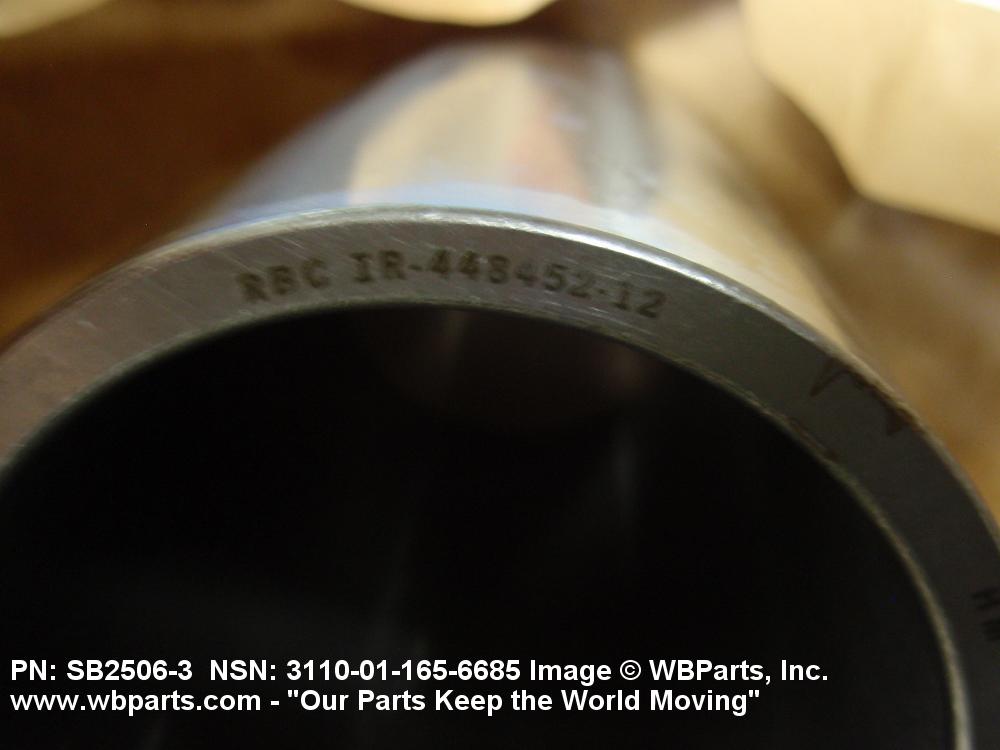

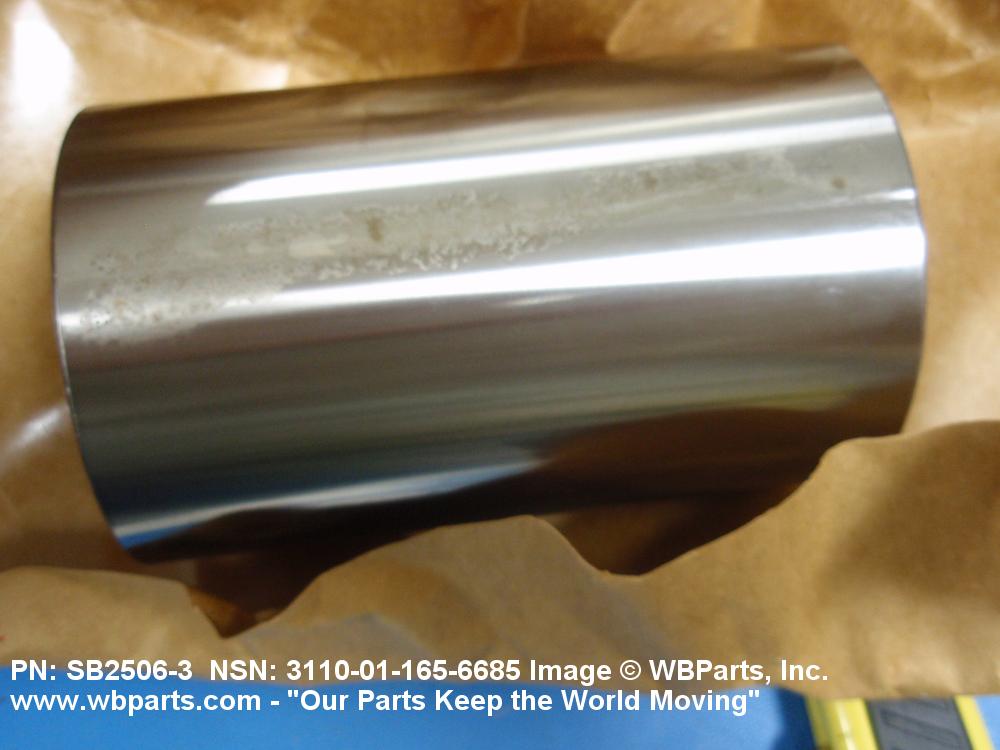

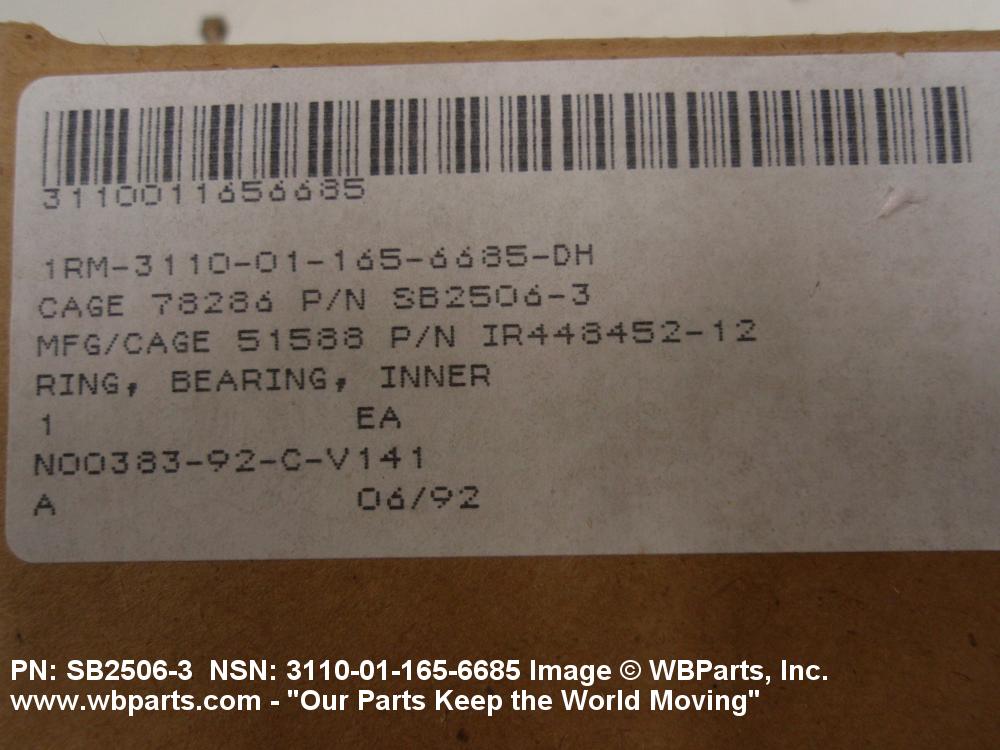

Drawings & Photos | NSN 3110-01-165-6685

Part Number	Request Date	QTY	Origin
3110-01-165-6685	2018-06-01	20	DIBBS
3110-01-165-6685	2018-05-24	20	DIBBS
SB25063	2013-06-03	5	South Korea
3110-01-165-6685	2012-03-09	15	DIBBS
3110-01-165-6685	2011-06-14	0	United States
3110-01-165-6685	2011-05-10	15	DIBBS
3110-01-165-6685	2008-05-22	8	DIBBS

Cross Reference | NSN 3110-01-165-6685

Part Number	Cage Code	Manufacturer
IR448452-10	51588	RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION
MI-239	39317	MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING.
MI-239	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION
SB2506-3	78286	SIKORSKY AIRCRAFT CORPORATION

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-01-165-6685

Compare

Related Products | NSN 3110-01-165-6685

3110-01-165-6876, 3110-01-165-7654, 3110-01-165-7761, 3110-01-165-8746, 3110-01-165-8981

Technical Data | NSN 3110-01-165-6685

Characteristic	Specifications
BORE SHAPE	STRAIGHT
MANUFACTURERS CODE	78286
MFR SOURCE CONTROLLING REFERENCE	SB2506-3

Restrictions/Controls & Freight Information | NSN 3110-01-165-6685

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-165-6685

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
