3110-01-495-2410 - NEEDLE BEARING CAM FOLLOWER, NAS5628FEE16A, NAS562-8FEE16A, HRS6CFAR16

Product Details | NEEDLE BEARING CAM FOLLOWER

3110-01-495-2410 An assembly consisting of a roller and stud used to effect a rolling contact with a cam, and convert the reciprocating or oscillating motion to linear motion.

Part Alternates: NAS5628FEE16A, NAS562-8FEE16A, HRS6CFAR16 , 3110-01-495-2410, 01-495-2410, 3110014952410, 014952410

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	11 MAR 2002	01-495-2410	00040 ( CAM FOLLOWER, NEEDLE BEARING )

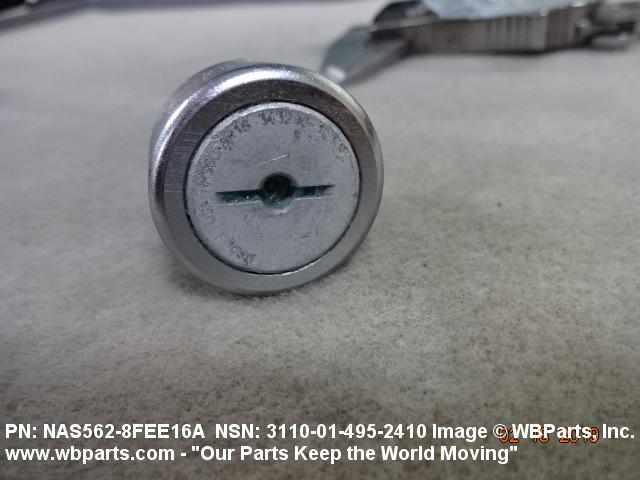

Drawings & Photos | NSN 3110-01-495-2410

Part Number	Request Date	QTY	Origin
3110-01-495-2410	2023-10-17	57	DIBBS
3110-01-495-2410	2023-06-19	43	DIBBS
3110-01-495-2410	2023-03-16	53	DIBBS
3110-01-495-2410	2022-11-20	38	DIBBS
3110-01-495-2410	2022-04-17	34	DIBBS
3110-01-495-2410	2021-12-19	118	DIBBS
3110-01-495-2410	2021-09-26	99	DIBBS
3110-01-495-2410	2021-09-22	99	DIBBS
NAS5628FEE16A	2019-01-28	1	United States
3110-01-495-2410	2015-08-28	1	DIBBS-RFPs
3110-01-495-2410	2015-08-12	212	DIBBS
3110-01-495-2410	2015-08-04	212	DIBBS
3110-01-495-2410	2014-05-20	81	DIBBS
3110-01-495-2410	2014-01-14	70	DIBBS
3110-01-495-2410	2010-05-10	5	DIBBS

Cross Reference | NSN 3110-01-495-2410

Part Number	Cage Code	Manufacturer
HRS6CFAR16	78286	SIKORSKY AIRCRAFT CORPORATION
NAS562-8FEE16A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-01-495-2410

Compare

Related Products | NSN 3110-01-495-2410

3110-01-495-2653, 3110-01-495-2717, 3110-01-495-3334, 3110-01-495-3344, 3110-01-495-3354

Technical Data | NSN 3110-01-495-2410

Characteristic	Specifications
MATERIAL	STEEL OVERALL PLASTIC ACETAL OR PLASTIC POLYAMIDE SHELL
SURFACE TREATMENT	CADMIUM AND CHROMATE END PLATE CHROMIUM OUTER RING CADMIUM AND CHROMATE STUD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416, TY 1, CL2 FED SPEC SINGLE TREATMENT RESPONSE END PLATE QQ-C-320, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416, TY 1, CL 2 FED SPEC SINGLE TREATMENT RESPONSE STUD
STYLE DESIGNATOR	440 CAM FOLLOWER

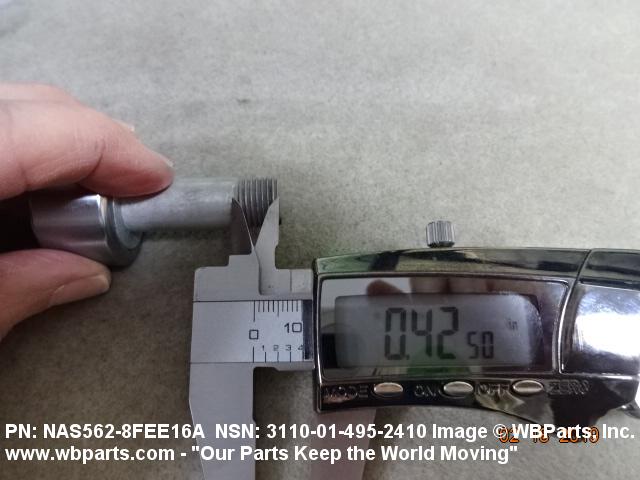

THREAD LENGTH	0.4220 INCHES NOMINAL

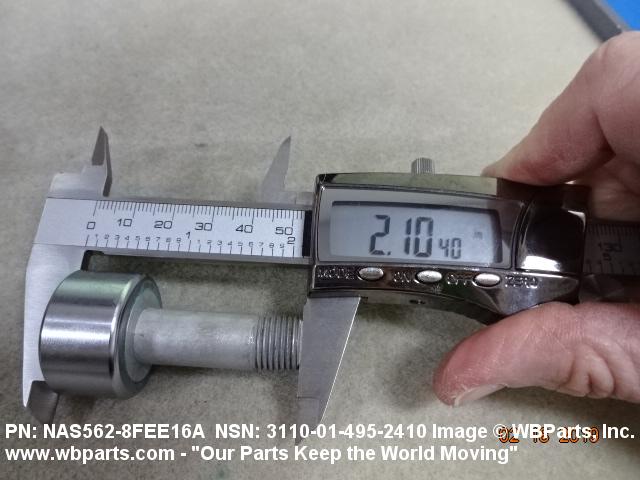

OVERALL LENGTH	2.1100 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.1245 INCHES MINIMUM AND 1.1260 INCHES MAXIMUM

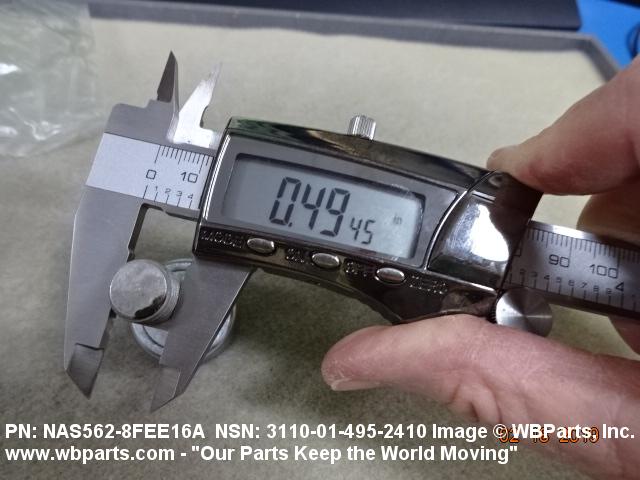

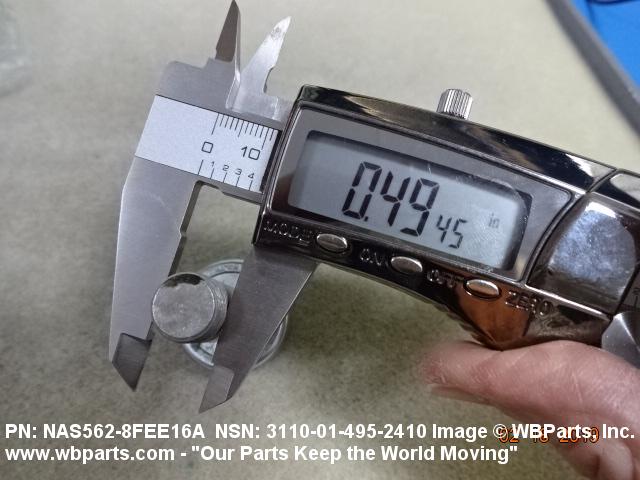

STUD DIAMETER	0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM
OUTER RING WIDTH	0.6510 INCHES MINIMUM AND 0.6560 INCHES MAXIMUM

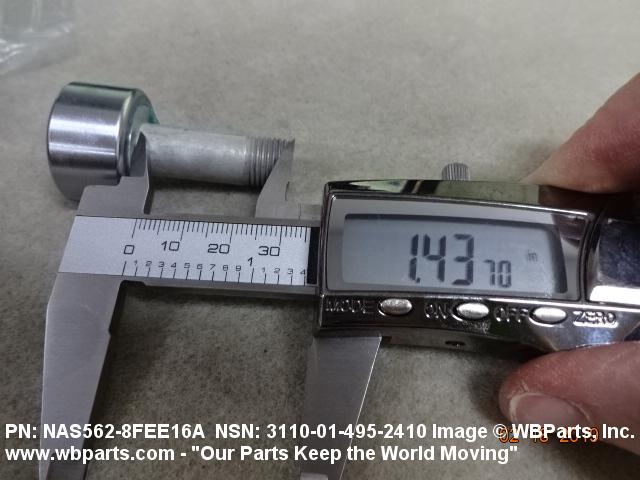

STUD LENGTH	1.4060 INCHES MINIMUM AND 1.4530 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	RIGID
SPECIAL FEATURES	NO COTTER PIN HOLE
SPECIFICATION/STANDARD DATA	80205-NAS562 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III END ITEM IDENTIFICATION	FLEET COMBAT

Restrictions/Controls & Freight Information | NSN 3110-01-495-2410

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114800	BEARING,ROLLER,THRUST
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
