Product Details | TAPERED ROLLER BEARING CONE
3110-01-603-9299 An inner component of a tapered roller bearing which provides a contact surface for the rolling elements of the bearing.
Part Alternates: L50794520629, L507945-20629, L5079452629, L507945-2-629, 3110-01-603-9299, 01-603-9299, 3110016039299, 016039299
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 MAR 2012 | 01-603-9299 | 00022 ( CONE, TAPERED ROLLER BEARING ) |

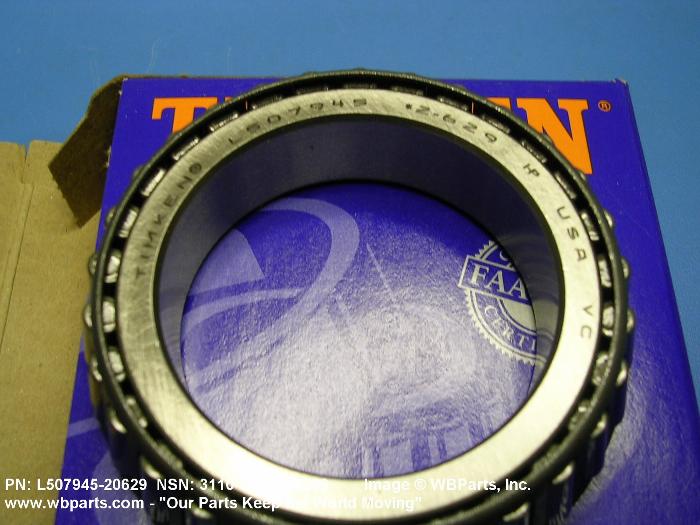

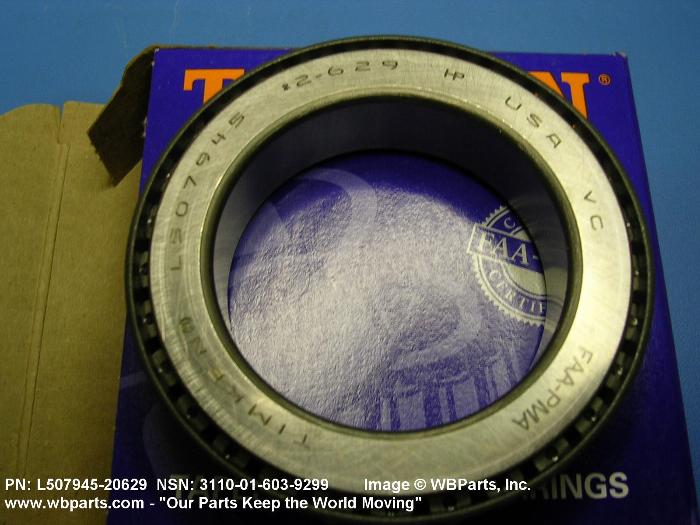

Drawings & Photos | NSN 3110-01-603-9299
Demand History | NSN 3110-01-603-9299
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3110-01-603-9299
3110-01-605-4869, 3110-01-605-7998, 3120-00-088-2346, 3120-00-122-4015, 3120-00-413-4785
Technical Data | NSN 3110-01-603-9299
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NORMAL ANGLE |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| BORE DIAMETER | 2.125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.4375 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| CONE WIDTH | 0.7188 INCHES NOMINAL |
| END ITEM IDENTIFICATION | LANDING WHEEL, AIRCRAFT |
| CONE CORNER RADIUS | 0.06 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-01-603-9299
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
