3120-00-172-2761 - SELF-ALIGNING PLAIN BEARING, ASB8V22, HSP8DU101, P51268400

Product Details | SELF-ALIGNING PLAIN BEARING

3120-00-172-2761 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: ASB8V22, HSP8DU101, P51268400, P5126-8400 , 1061301, 106-130-1 , 205012710001, 205-012-710-001 , 2050127101, 205-012-710-1, 3120-00-172-2761, 00-172-2761, 3120001722761, 001722761

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	27 AUG 1972	00-172-2761	13208 ( BEARING, PLAIN, SELF-ALIGNING )

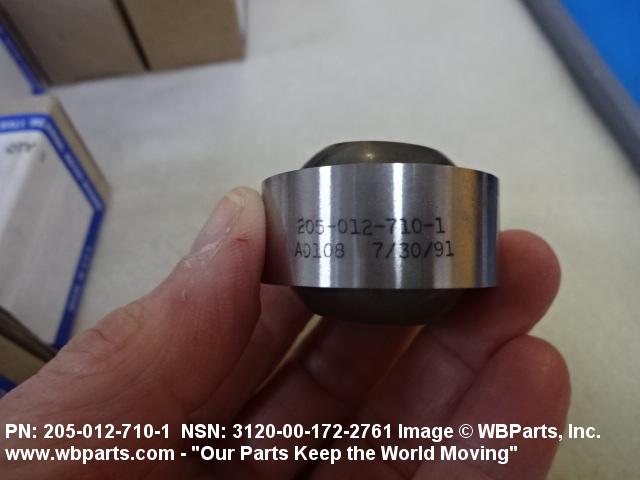

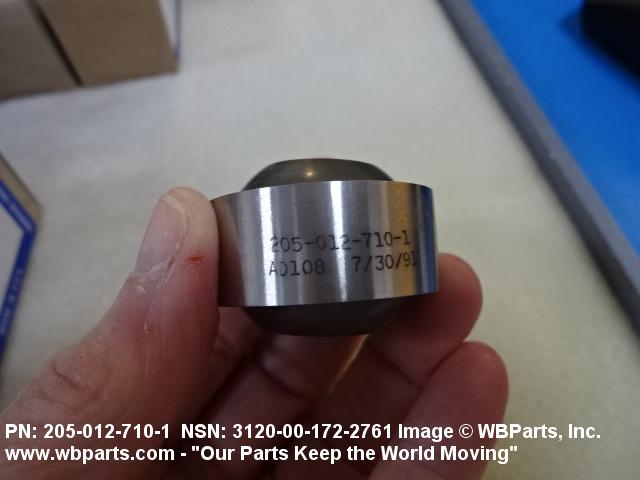

Drawings & Photos | NSN 3120-00-172-2761

Part Number	Request Date	QTY	Origin
3120-00-172-2761	2023-03-15	1	US
2050127101	2021-08-10	2	PH
3120-00-172-2761	2020-10-30	1	DIBBS-RFPs
3120-00-172-2761	2020-04-18	12	ID
205-012-710-001	2019-11-13	443	DIBBS
3120-00-172-2761	2018-09-13	311	DIBBS
2050127101	2018-06-05	21	United States
3120-00-172-2761	2017-12-05	283	DIBBS
3120-00-172-2761	2017-06-26	228	DIBBS
3120-00-172-2761	2017-02-07	177	DIBBS
3120-00-172-2761	2016-12-16	33	DIBBS
3120-00-172-2761	2016-12-08	33	DIBBS
205-012-710-001	2015-03-17	10	TH
3120-00-172-2761	2015-01-27	50	Hong Kong
205-012-710-001	2014-07-02	1	US
205-012-710-001	2013-11-18	4	Belgium
3120-00-172-2761	2013-09-30	10	ZA
2050127101	2013-02-17	15	SE
3120-00-172-2761	2013-02-17	20	SE
3120-00-172-2761	2013-02-08	1	US
205-012-710-001	2013-01-07	4	Indonesia
3120-00-172-2761	2010-08-09	315	DIBBS
205012710001	2010-06-18	10	Indonesia
3120-00-172-2761	2010-05-20	300	DIBBS
3120-00-172-2761	2010-05-04	243	DIBBS
3120-00-172-2761	2010-03-08	192	DIBBS
2050127101	2010-02-11	15	RU
3120-00-172-2761	2009-10-21	150	France
3120-00-172-2761	2009-10-05	194	DIBBS
2050127101	2009-05-30	160	Malaysia
3120-00-172-2761	2009-05-06	10	IT
3120-00-172-2761	2009-04-30	106	DIBBS
205012710001	2009-03-31	2	Philippines
3120-00-172-2761	2008-05-31	109	DIBBS
2050127101	2008-04-16	16	SH
3120-00-172-2761	2008-04-09	539	DIBBS
3120-00-172-2761	2008-04-07	16	SH

Cross Reference | NSN 3120-00-172-2761

Part Number	Cage Code	Manufacturer
205-012-710-001	02758	U S BEARINGS
205-012-710-001	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
205-012-710-001	97499	BELL HELICOPTER TEXTRON INC.
205-012-710-1	97499	BELL HELICOPTER TEXTRON INC.
ASB8V22	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
HSP8DU101	02758	U S BEARINGS

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3120-00-172-2761

Compare

Related Products | NSN 3120-00-172-2761

3120-00-172-2766, 3120-00-172-2769, 3120-00-172-3182, 3120-00-172-3183, 3120-00-172-3209

Technical Data | NSN 3120-00-172-2761

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OUTER RACE MEMBER
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
SURFACE TREATMENT	ANODIZE AND CHROMATE INNER MEMBER
STYLE DESIGNATOR	10A WITH INSERT AND/OR LINER WITH STAKING GROOVE
BORE DIAMETER	0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM

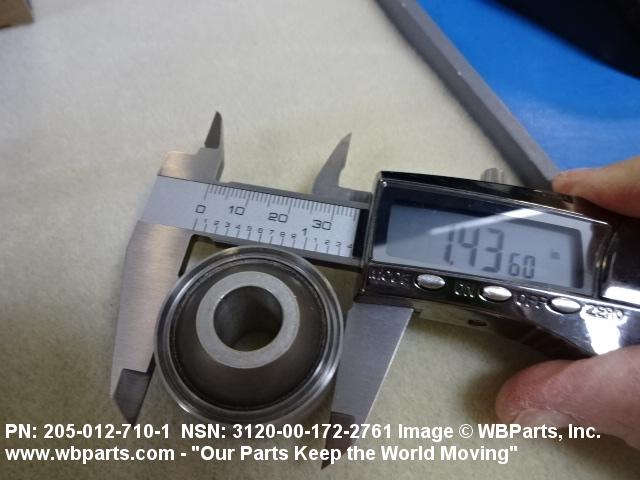

OUTER MEMBER OUTSIDE DIAMETER	1.4370 INCHES MINIMUM AND 1.4375 INCHES MAXIMUM

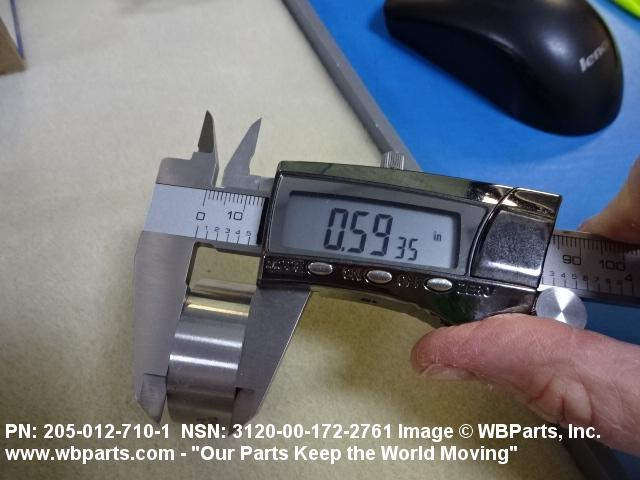

OUTER MEMBER WIDTH	0.5880 INCHES MINIMUM AND 0.5980 INCHES MAXIMUM
INNER MEMBER WIDTH	0.9980 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM
MANUFACTURERS CODE	97499
MFR SOURCE CONTROLLING REFERENCE	205-012-710-1
