Product Details | LINEAR-ROTARY MOTION ROLLER
3120-00-886-1321 A cylindrical body having a centrally located hole to accommodate a pin or shaft for attachment to a push rod guide, yoke, rocker arm, turntable, or rail. The item provides a rolling contact with the face of a valve stem, or the lobes of a cam ring or camshaft on engines, fuel injection pumps, latches, turntables, parallel bearing surfaces requiring a roller support, and the like. Excludes BEARING, ROLLER, CYLINDRICAL; ROLLER, ELECTRICAL SWITCH; and friction bearings. See also CAM FOLLOWER, NEEDLE BEARING.
Part Alternates: 114S17101, 114S1710-1, 3120-00-886-1321, 00-886-1321, 3120008861321, 008861321
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-886-1321 | 28215 ( ROLLER, LINEAR-ROTARY MOTION ) |

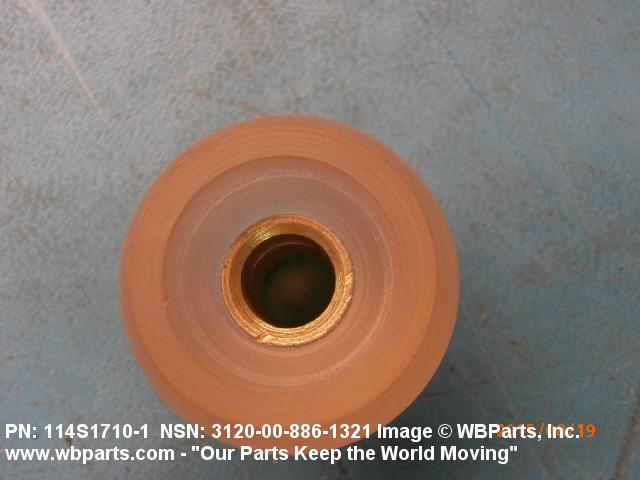

Drawings & Photos | NSN 3120-00-886-1321
Demand History | NSN 3120-00-886-1321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-886-1321 | 2024-04-02 | 845 | DIBBS |
| 3120-00-886-1321 | 2022-07-28 | 384 | DIBBS |
| 3120-00-886-1321 | 2022-06-30 | 84 | DIBBS |
| 3120-00-886-1321 | 2015-08-06 | 10 | United States |
| 3120-00-886-1321 | 2009-04-21 | 89 | DIBBS |
| 3120-00-886-1321 | 2009-04-09 | 746 | DIBBS |
| 3120-00-886-1321 | 2009-03-04 | 907 | DIBBS |
| 3120-00-886-1321 | 2009-01-22 | 203 | DIBBS |
| 3120-00-886-1321 | 2009-01-13 | 160 | DIBBS |
| 3120-00-886-1321 | 2008-09-03 | 991 | DIBBS |
| 3120-00-886-1321 | 2008-05-01 | 888 | DIBBS |
| 3120-00-886-1321 | 2008-02-06 | 751 | DIBBS |
| 3120-00-886-1321 | 2008-02-05 | 751 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-00-886-1321
Related Products | NSN 3120-00-886-1321
3120-00-886-1437, 3120-00-886-1859, 3120-00-886-2991, 3120-00-886-4593, 3120-00-886-5668
Technical Data | NSN 3120-00-886-1321
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC,PLT-1,FSCM 83616 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

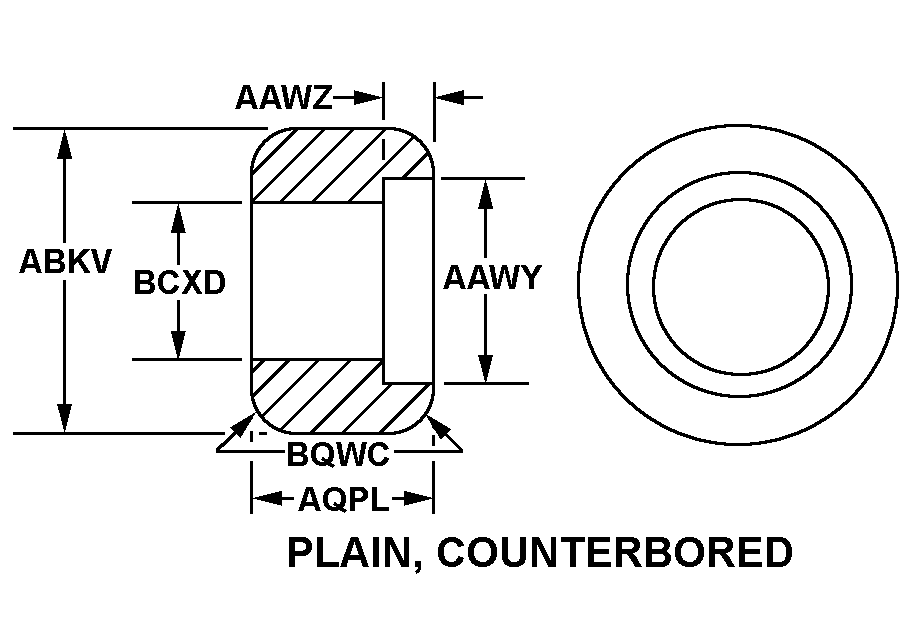

| STYLE DESIGNATOR | R9 PLAIN, COUNTERBORED |
| COUNTERBORE DIAMETER | 0.700 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.190 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| FACE WIDTH | 0.812 INCHES NOMINAL |
| BORE INSIDE DIAMETER | 0.313 INCHES NOMINAL |
| CHAMFER/RADIUS OF OUTSIDE CORNER | 0.562 IN. RADIUS |
| MANUFACTURERS CODE | 60763 |
| DESIGN CONTROL REFERENCE | 114S1710-1 |
Restrictions/Controls & Freight Information | NSN 3120-00-886-1321
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
