Product Details | SLEEVE BEARING
3120-01-053-1964 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: MS17795, MS1779528, MS17795-28, 3120-01-053-1964, 01-053-1964, 3120010531964, 010531964
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 DEC 1977 | 01-053-1964 | 13205 ( BEARING, SLEEVE ) |

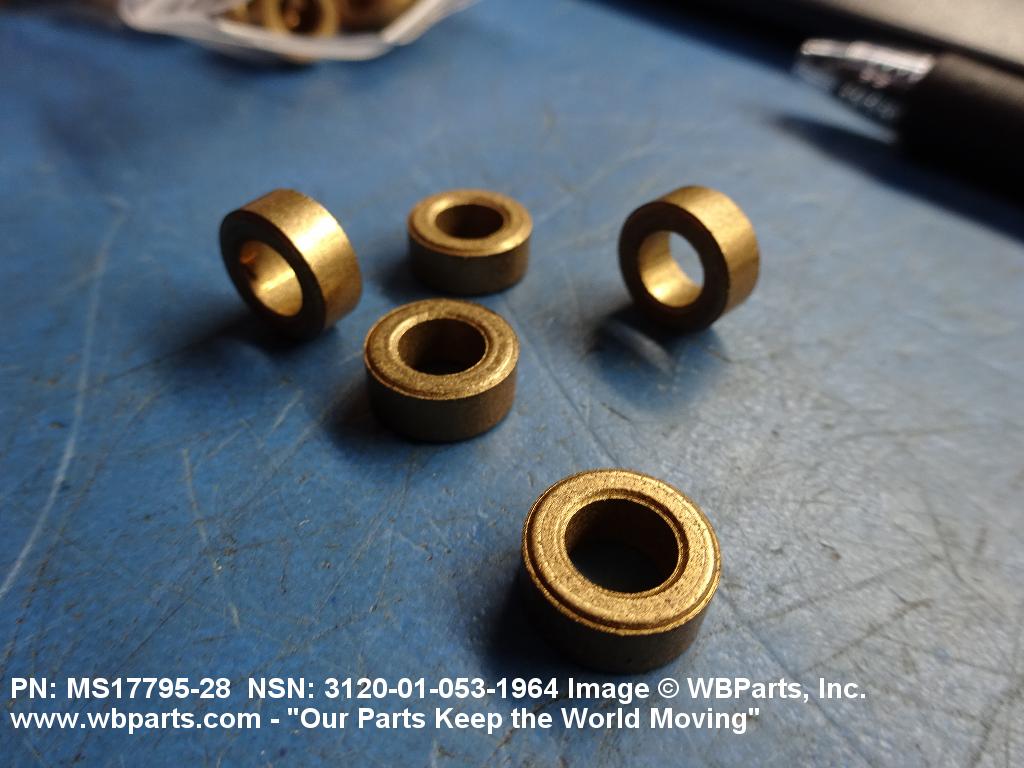

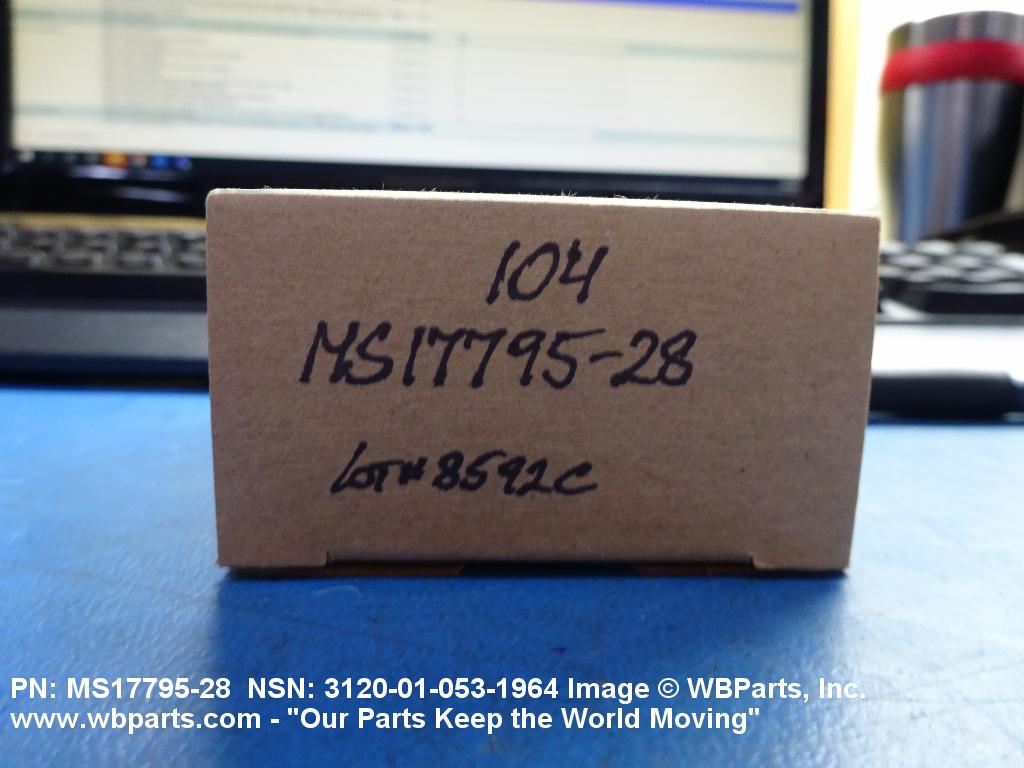

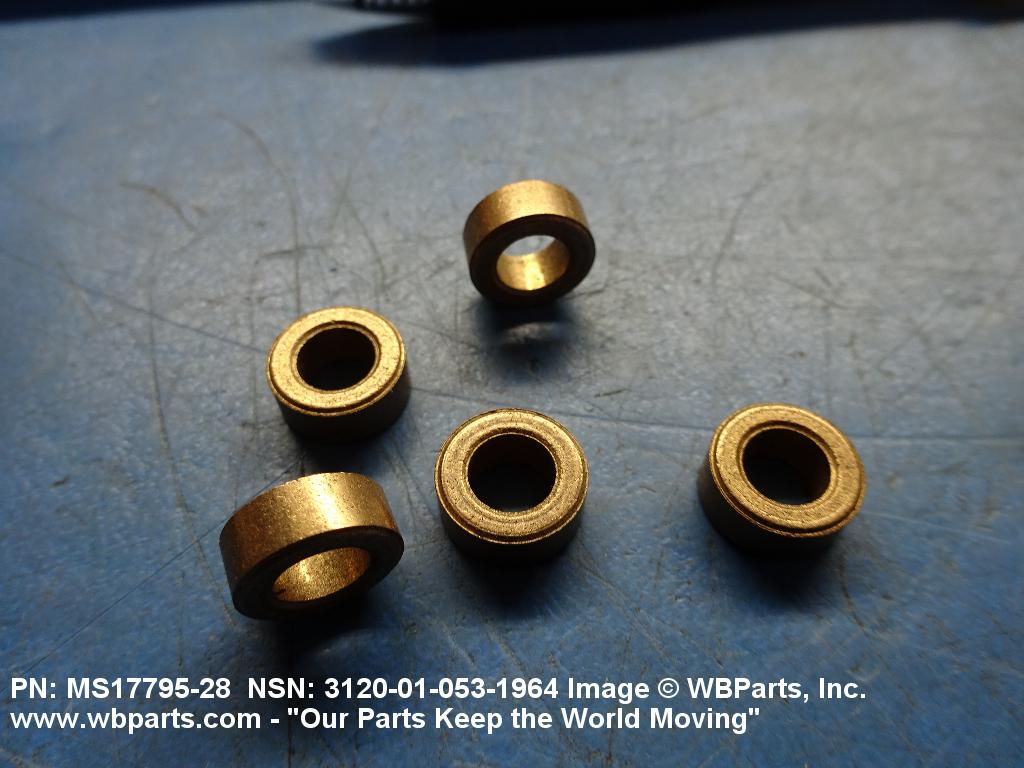

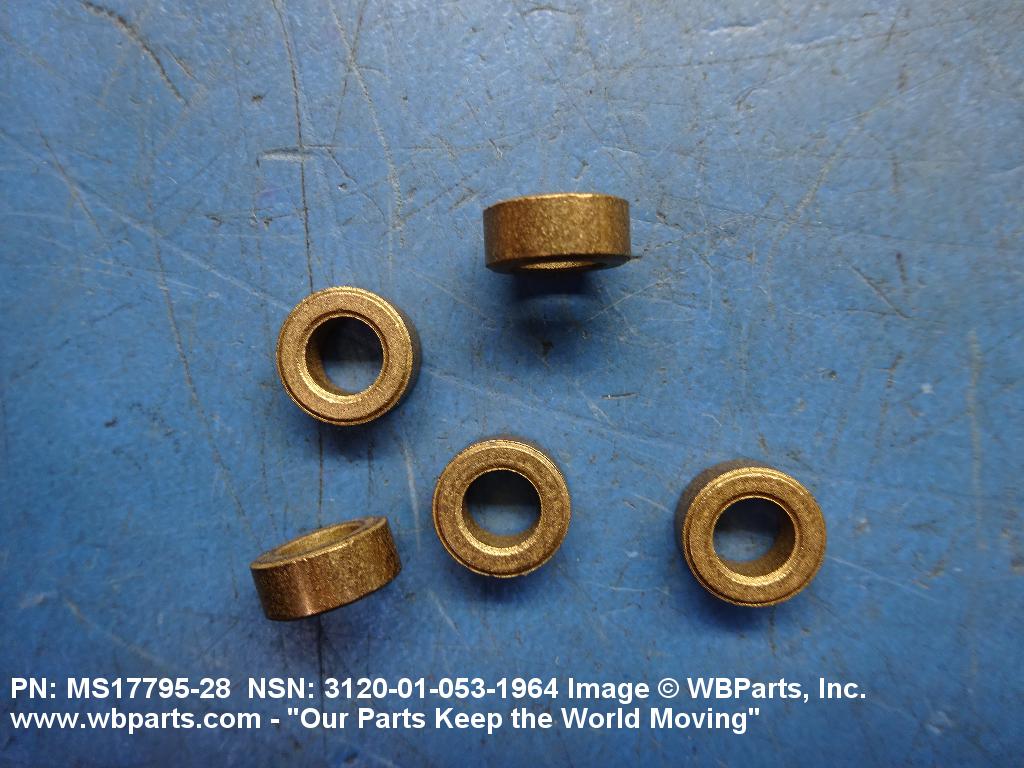

Drawings & Photos | NSN 3120-01-053-1964
Demand History | NSN 3120-01-053-1964
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1779528 | 2024-04-25 | 28 | United States |
| MS1779528 | 2024-04-25 | 56 | United States |
| 3120-01-053-1964 | 2023-08-21 | 320 | US |
| 3120-01-053-1964 | 2022-06-06 | 104 | United States |
| MS1779528 | 2021-02-19 | 2640 | US |
| 3120-01-053-1964 | 2017-03-30 | 105 | DIBBS |
| MS1779528 | 2015-03-12 | 520 | US |
| MS1779528 | 2015-01-16 | 600 | US |
| MS1779528 | 2013-10-31 | 250 | US |
| MS1779528 | 2012-02-09 | 3 | United States |
| 3120-01-053-1964 | 2009-02-23 | 1200 | US |
| 3120-01-053-1964 | 2009-02-19 | 1230 | US |
| MS1779528 | 2008-09-02 | 108 | us |
| 3120-01-053-1964 | 2008-06-11 | 500 | United States |
| 3120-01-053-1964 | 2008-06-03 | 330 | us |
| MS1779528 | 2008-05-19 | 300 | United States |
| MS1779528 | 2007-10-25 | 1500 | US |
| MS1779528 | 2007-10-23 | 270 | US |
| MS1779528 | 2007-09-28 | 260 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3120-01-053-1964
3120-01-053-1965, 3120-01-053-1966, 3120-01-053-2605, 3120-01-053-2944, 3120-01-053-2945
Technical Data | NSN 3120-01-053-1964
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL H MINIMUM AND 70.0 ROCKWELL H MAXIMUM OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

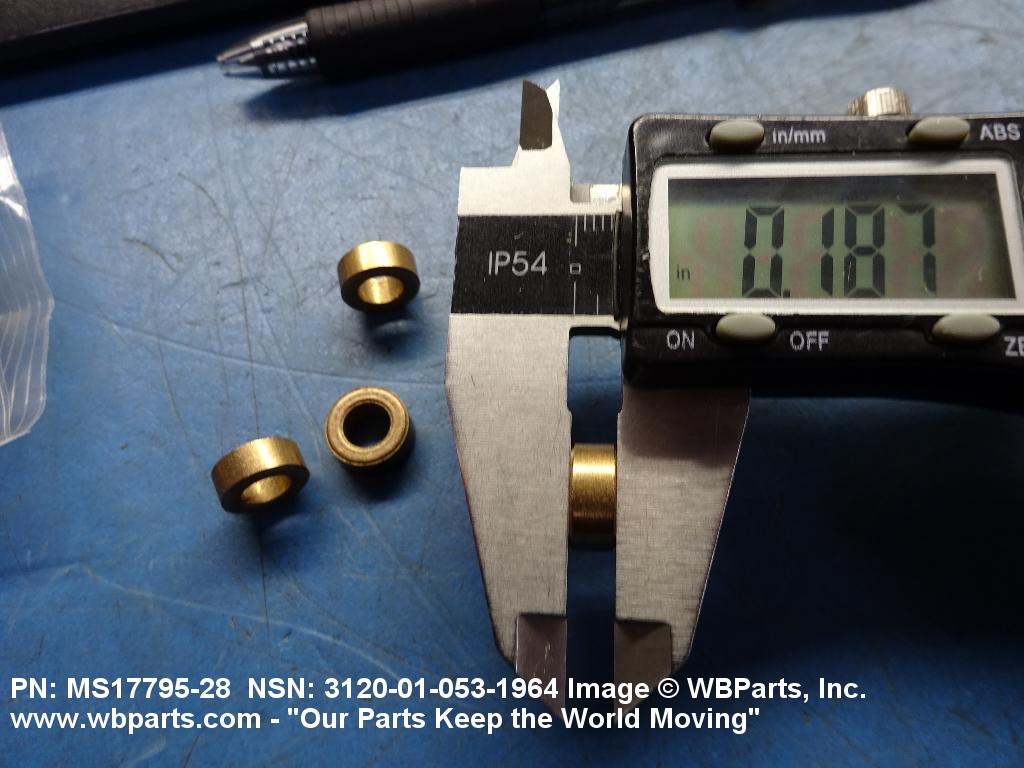

| OVERALL LENGTH | 0.1825 INCHES MINIMUM AND 0.1925 INCHES MAXIMUM |

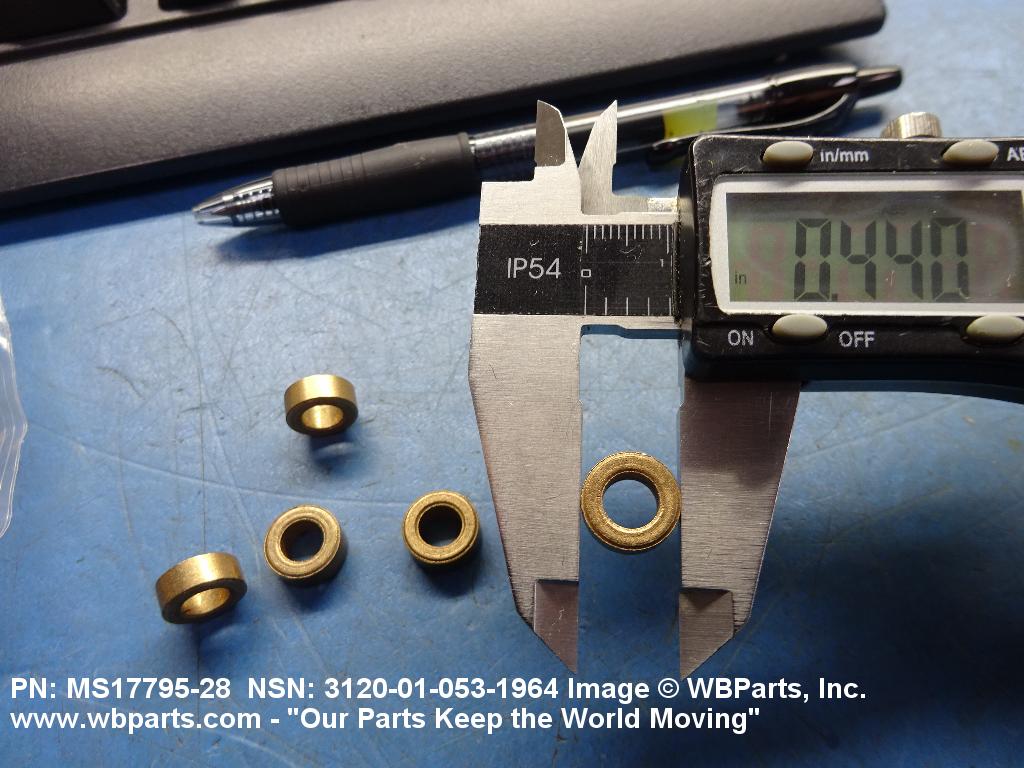

| BODY OUTSIDE DIAMETER | 0.4390 INCHES MINIMUM AND 0.4400 INCHES MAXIMUM |

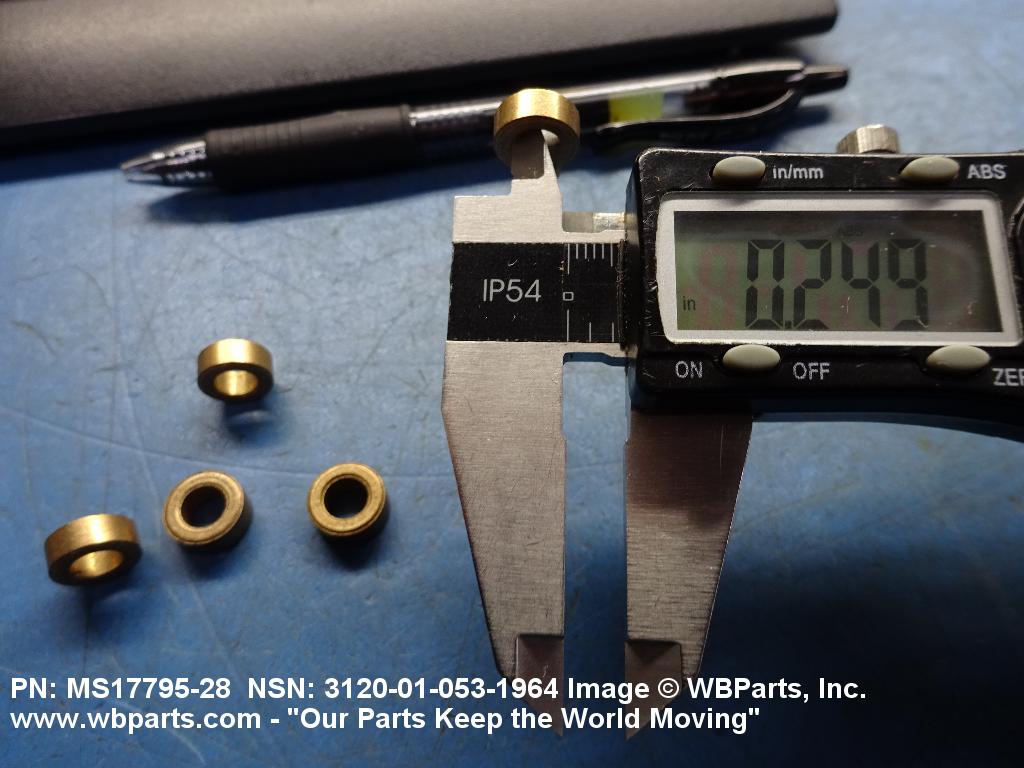

| BODY INSIDE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2510 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| LUBRICATION MATERIAL | LUBRICATING OIL, MIL-L-15016, SYMBOL 2190 |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17795 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17795-28 |
Restrictions/Controls & Freight Information | NSN 3120-01-053-1964
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-053-1964
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
