Product Details | SLEEVE BEARING HALF
3120-01-065-9504 A half of a two-piece split type BEARING, SLEEVE.
Part Alternates: PWA519837, PWA51983-7, 3120-01-065-9504, 01-065-9504, 3120010659504, 010659504
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 SEP 1978 | 01-065-9504 | 22210 ( BEARING HALF, SLEEVE ) |

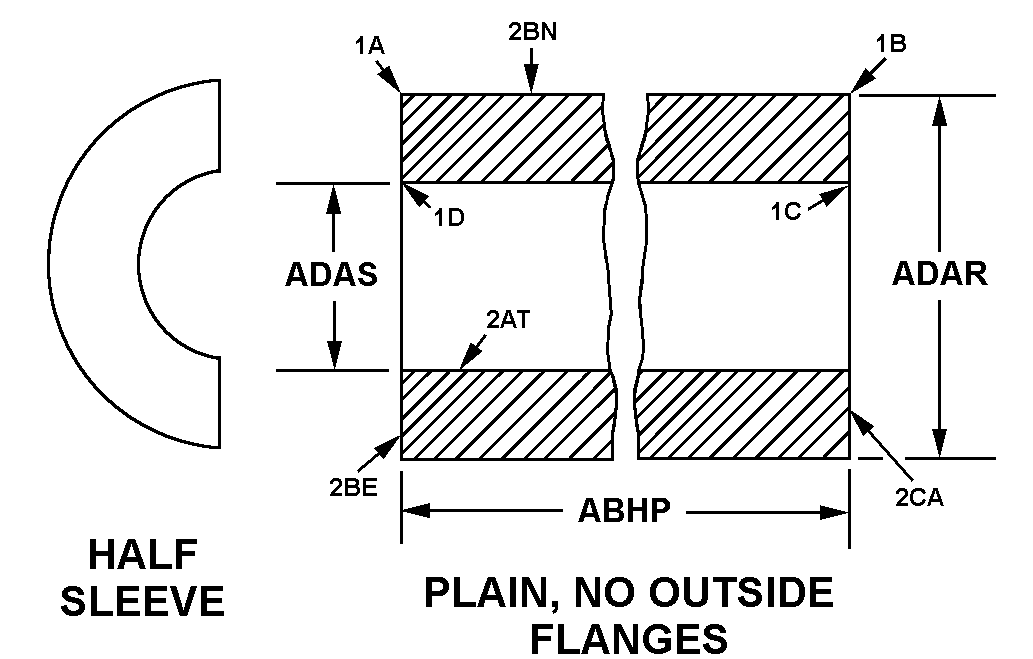

Drawings & Photos | NSN 3120-01-065-9504
Cross Reference | NSN 3120-01-065-9504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA51983-7 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-065-9504
Related Products | NSN 3120-01-065-9504
3120-01-065-9773, 3120-01-065-9774, 3120-01-066-0093, 3120-01-066-0094, 3120-01-066-0688
Technical Data | NSN 3120-01-065-9504
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 17D HALF SLEEVE |
| OVERALL LENGTH | 0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.2496 INCHES MINIMUM AND 2.2498 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.0000 INCHES MINIMUM AND 1.0002 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| III END ITEM IDENTIFICATION | ARBOR BALANCE,77445 PWA51983 |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA51983-7 |
Restrictions/Controls & Freight Information | NSN 3120-01-065-9504
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-065-9504
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | KU | TG:NON-AUTOMATIC AVIONICS TEST EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
