Product Details | ROD END PLAIN BEARING

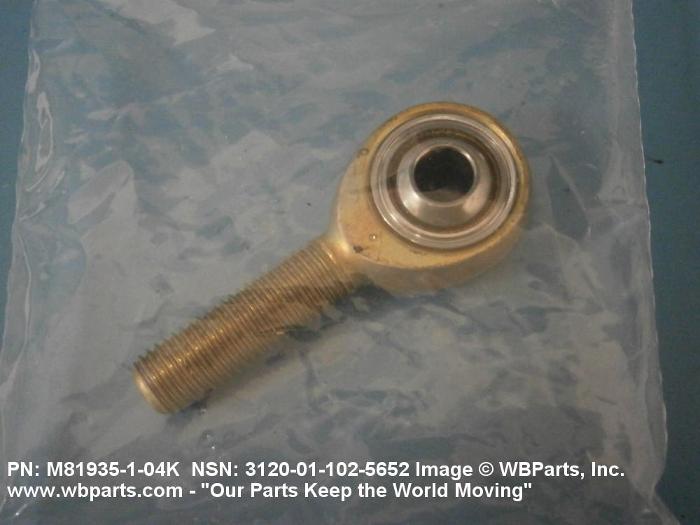

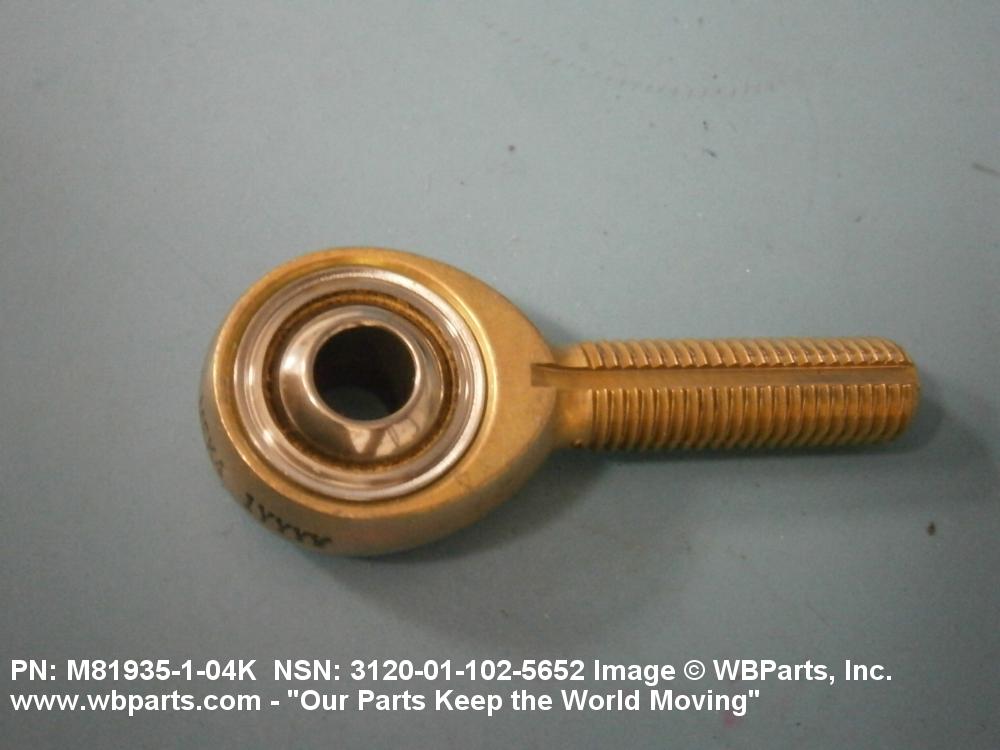

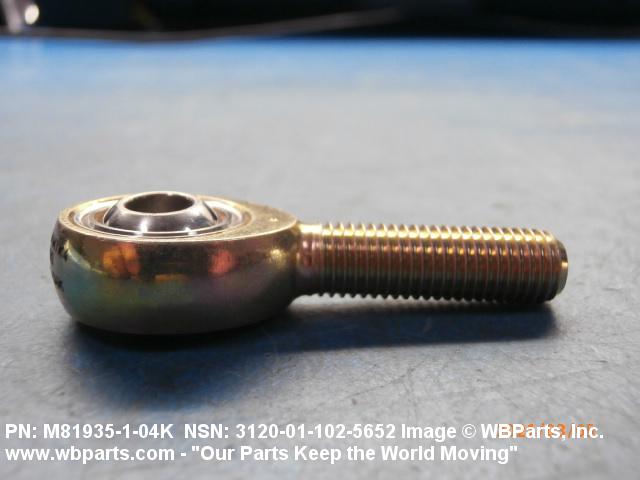

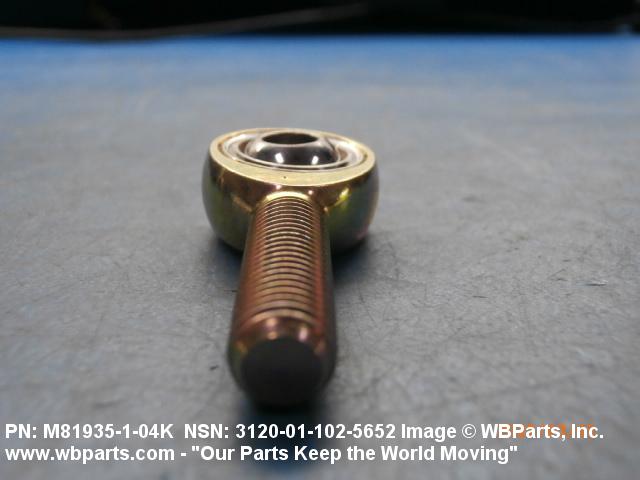

3120-01-102-5652 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: MS2124S04K, M81935/1-04K, M81935104K, ANM4W, ANM4WL1, AS81935/1, AS81935/1-04K, AS819351, AS81935104K, SWRKMS4500, SWRKMS-4-500, REMS8W10M, REMS8W10M S8, REMS8W10MS8, EMRL635RKX, EMRL6-35RKX , KBDE4351W, KBDE4-351W, MILB81935, MIL-B-81935, 01824041, 01-824-041, 04A0774K, 04A077-4K, 10085916 , 3120-01-102-5652, 01-102-5652, 3120011025652, 011025652
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 OCT 1980 | 01-102-5652 | 13209 ( BEARING, PLAIN, ROD END ) |

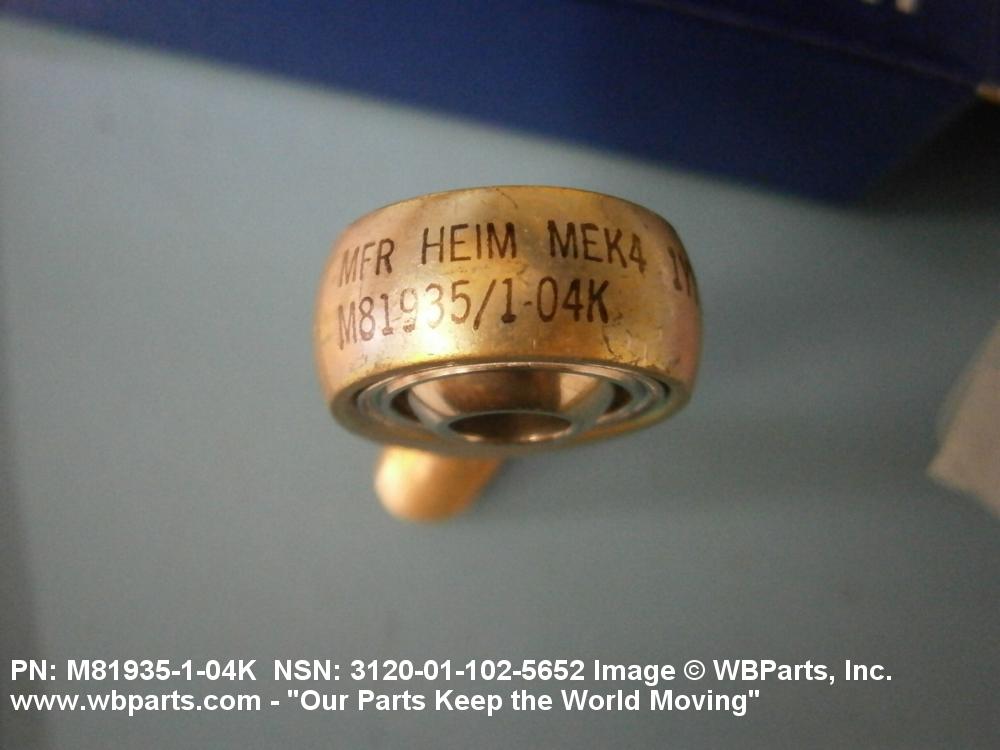

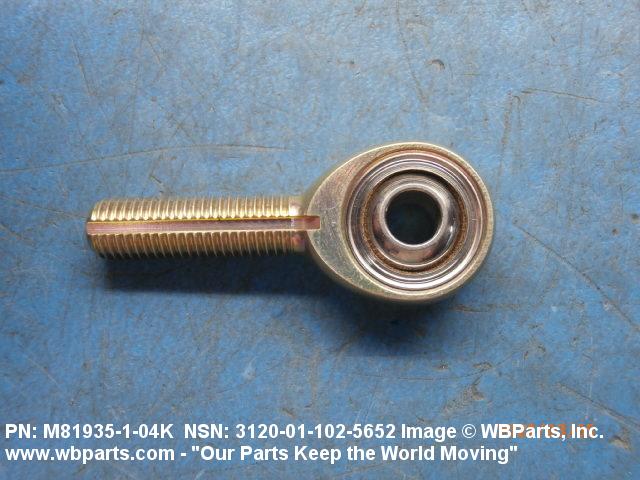

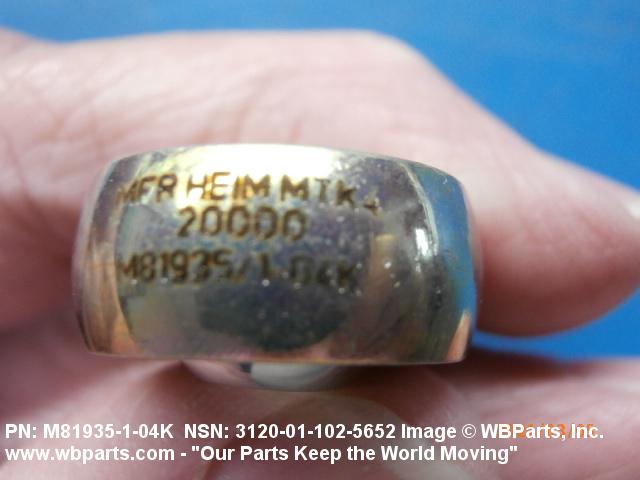

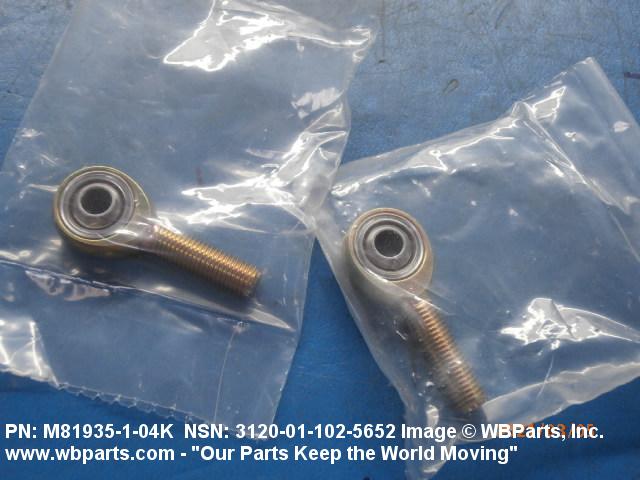

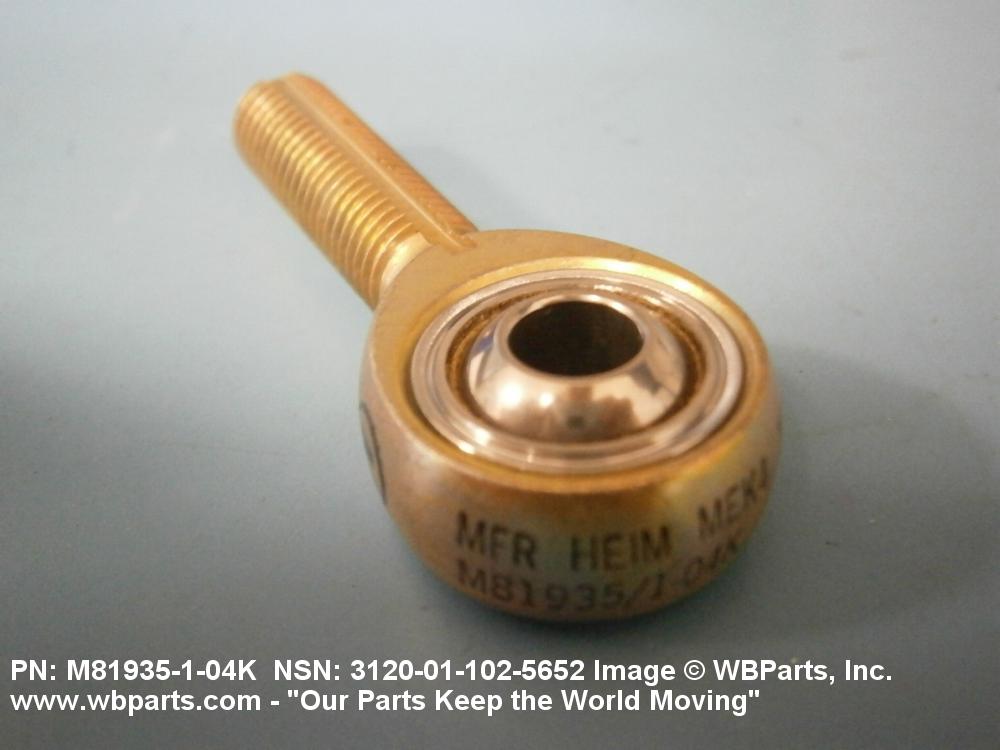

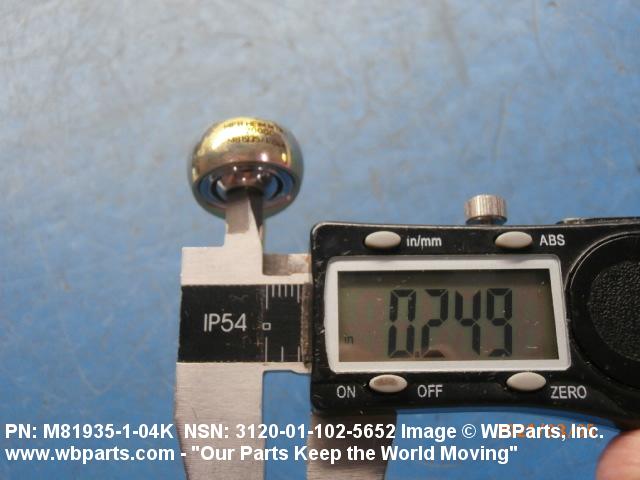

Drawings & Photos | NSN 3120-01-102-5652
Demand History | NSN 3120-01-102-5652
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-102-5652 | 2024-01-17 | 29 | DIBBS |
| M81935104K | 2023-07-13 | 8 | United States |
| M81935104K | 2021-11-18 | 50 | United States |
| 3120-01-102-5652 | 2021-02-24 | 2 | United States |
| M81935104K | 2020-01-15 | 10 | AU |
| M81935104K | 2020-01-06 | 50 | United States |
| M81935104K | 2020-01-06 | 50 | United States |
| 3120-01-102-5652 | 2019-03-18 | 40 | us |
| 04A0774K | 2018-12-10 | 1 | US |
| 04A0774K | 2018-12-10 | 5 | US |
| 04A0774K | 2018-12-10 | 10 | US |
| 04A0774K | 2018-11-09 | 1 | United States |
| 3120-01-102-5652 | 2018-11-07 | 1 | DIBBS-RFPs |
| M81935104K | 2017-11-27 | 32 | United States |
| M81935104K | 2016-12-29 | 50 | United States |
| 3120-01-102-5652 | 2016-11-16 | 52 | United States |
| REMS8W10M | 2015-05-27 | 32 | Romania |
| 3120-01-102-5652 | 2013-02-28 | 284 | DIBBS |
| 3120-01-102-5652 | 2012-04-11 | 26 | US |
| 3120-01-102-5652 | 2012-03-31 | 30 | DIBBS |
| MILB81935 | 2011-11-14 | 30 | United Kingdom |
| 3120-01-102-5652 | 2011-02-09 | 10 | US |
| 3120-01-102-5652 | 2009-09-29 | 13 | IT |
| 3120-01-102-5652 | 2009-06-13 | 40 | United States |
| 3120-01-102-5652 | 2009-02-12 | 164 | DIBBS |
| 3120-01-102-5652 | 2008-11-12 | 290 | DIBBS |
Cross Reference | NSN 3120-01-102-5652
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-824-041 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 04A077-4K | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| ANM4W | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| ANM4W(L1) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AS81935/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/1-04K | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KBDE4-351W | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| M81935/1-04K | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-04K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS2124S04K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REMS8W10M | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REMS8W10M | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| REMS8W10M S8 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| SWRKMS-4-500 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-102-5652
Related Products | NSN 3120-01-102-5652
3120-01-102-5653, 3120-01-102-5751, 3120-01-102-6117, 3120-01-102-6511, 3120-01-102-6512
Technical Data | NSN 3120-01-102-5652

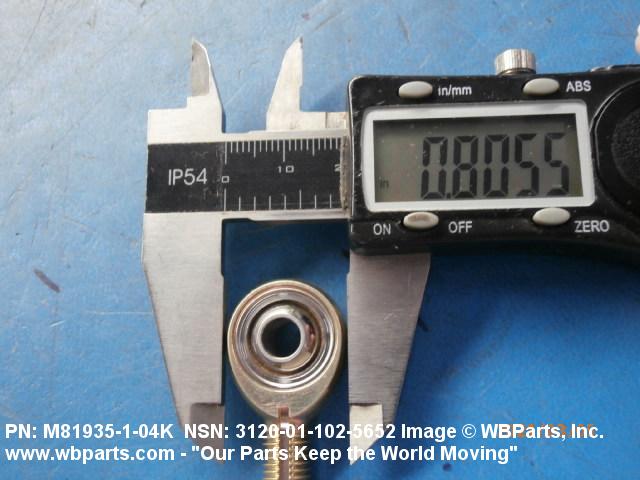

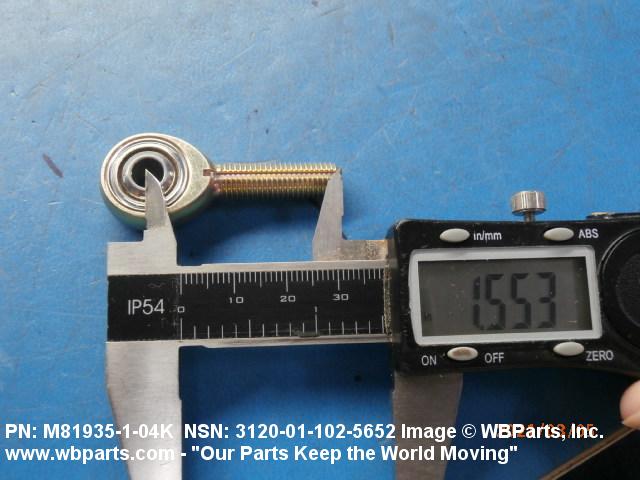

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP E4340 ROD END BODY |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 1.9650 INCHES NOMINAL |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7960 INCHES MINIMUM AND 0.8160 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3320 INCHES MINIMUM AND 0.3420 INCHES MAXIMUM |

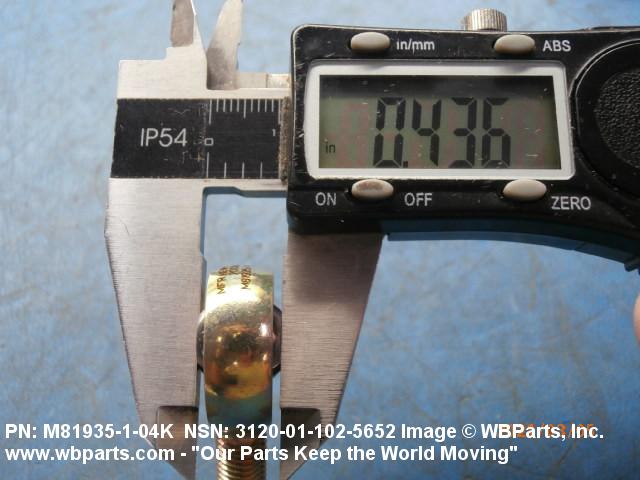

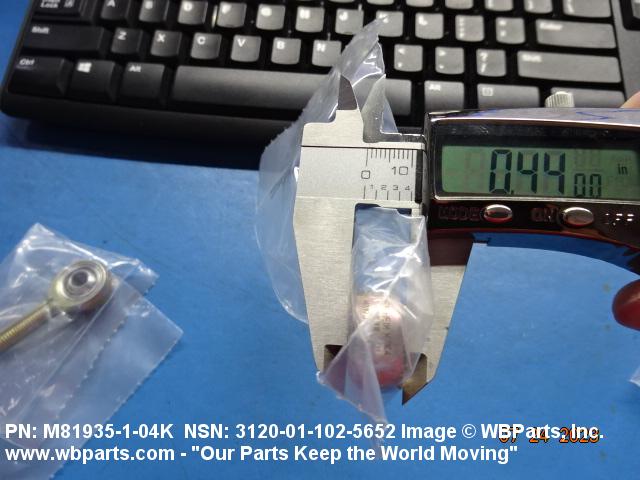

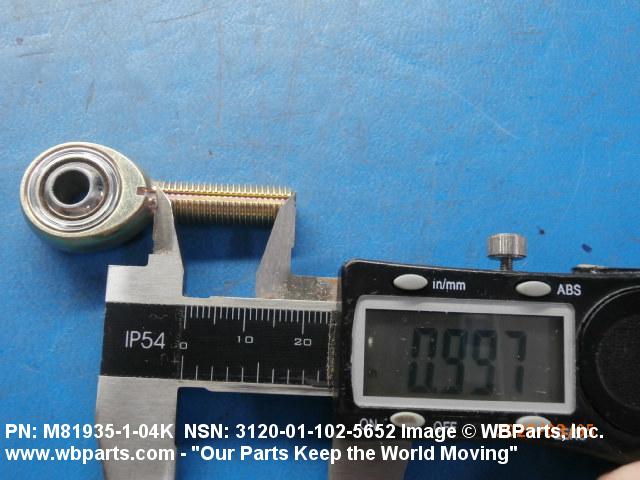

| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 4860 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 0.9370 INCHES MINIMUM AND 0.9990 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |

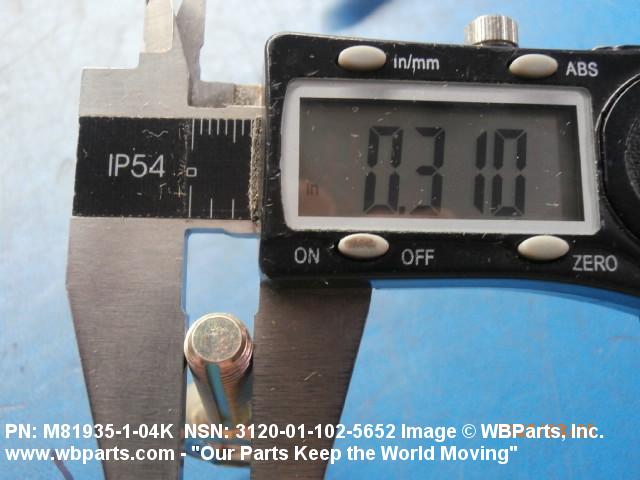

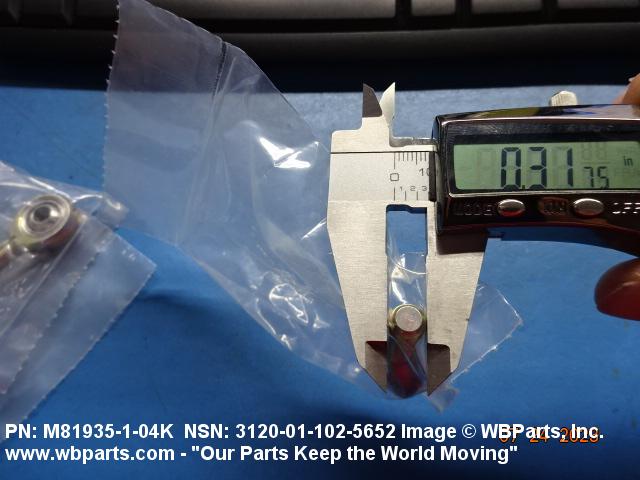

| THREAD DIAMETER | 0.312 INCHES NOMINAL |
