Product Details | ROD END PLAIN BEARING
3120-01-180-0539 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: M81935/1-04KL, M81935104KL, AS81935, AS81935/1, AS819351, MILB81935, MIL-B-81935, 3120-01-180-0539, 01-180-0539, 3120011800539, 011800539
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 MAY 1984 | 01-180-0539 | 13209 ( BEARING, PLAIN, ROD END ) |

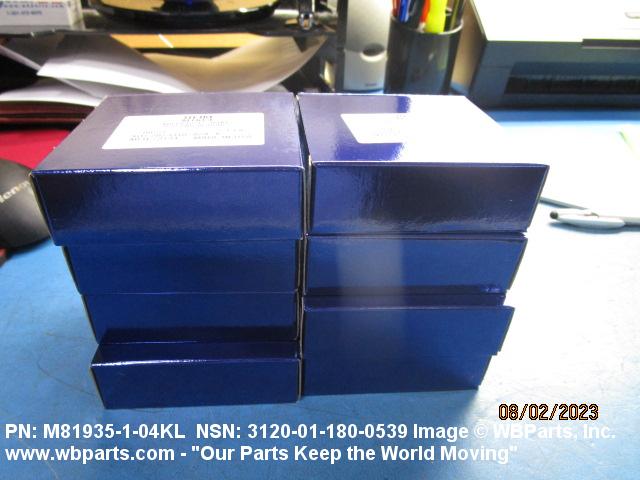

Drawings & Photos | NSN 3120-01-180-0539
Demand History | NSN 3120-01-180-0539
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M81935104KL | 2023-07-31 | 8 | United States |
| M81935104KL | 2023-07-13 | 8 | United States |
| 3120-01-180-0539 | 2019-03-18 | 40 | us |
| 3120-01-180-0539 | 2019-01-02 | 123 | DIBBS |
| 3120-01-180-0539 | 2018-10-24 | 20 | DIBBS |
| 3120-01-180-0539 | 2018-09-17 | 25 | DIBBS |
| M81935104KL | 2016-12-29 | 50 | United States |
| M81935104KL | 2015-03-25 | 120 | US |
| 3120-01-180-0539 | 2014-03-05 | 10 | Singapore |
| 3120-01-180-0539 | 2012-06-11 | 61 | DIBBS |
| 3120-01-180-0539 | 2012-04-11 | 26 | US |
| 3120-01-180-0539 | 2012-04-10 | 34 | DIBBS |
| 3120-01-180-0539 | 2012-02-09 | 23 | DIBBS |
| 3120-01-180-0539 | 2012-01-25 | 4 | DIBBS |
| 3120-01-180-0539 | 2011-12-14 | 30 | DIBBS |
| MILB81935 | 2011-11-14 | 30 | United Kingdom |
| 3120-01-180-0539 | 2011-07-15 | 11 | DIBBS |
| M81935104KL | 2010-10-13 | 2 | US |
| 3120-01-180-0539 | 2009-05-31 | 37 | DIBBS |
| 3120-01-180-0539 | 2009-04-15 | 29 | DIBBS |
| 3120-01-180-0539 | 2008-06-26 | 60 | DIBBS |
| 3120-01-180-0539 | 2008-03-26 | 29 | DIBBS |
| AS81935 | 2008-02-11 | 4 | US |
Cross Reference | NSN 3120-01-180-0539
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-04KL | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-04KL | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-180-0539
Related Products | NSN 3120-01-180-0539
3120-01-180-0540, 3120-01-180-0671, 3120-01-180-0678, 3120-01-180-1940, 3120-01-180-2450
Technical Data | NSN 3120-01-180-0539
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP E4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RING 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

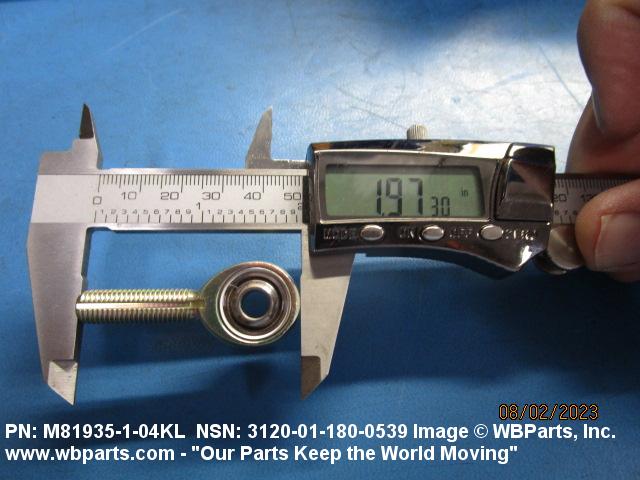

| OVERALL LENGTH | 1.9650 INCHES NOMINAL |

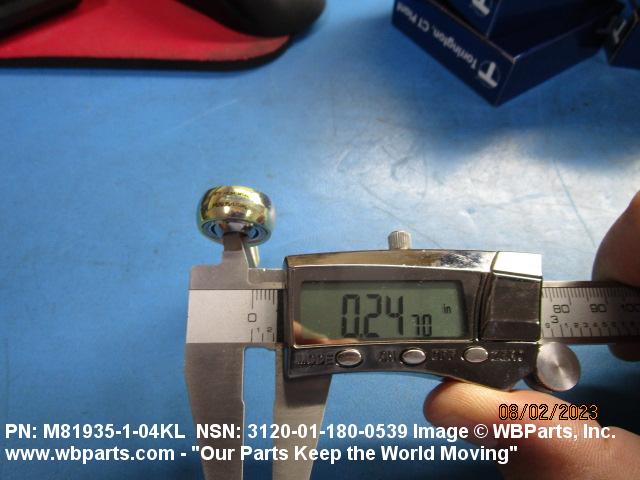

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7960 INCHES MINIMUM AND 0.8160 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3320 INCHES MINIMUM AND 0.3420 INCHES MAXIMUM |

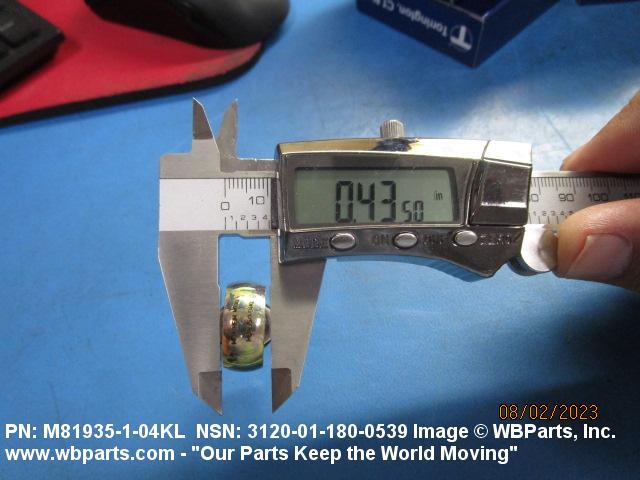

| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 4860 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |

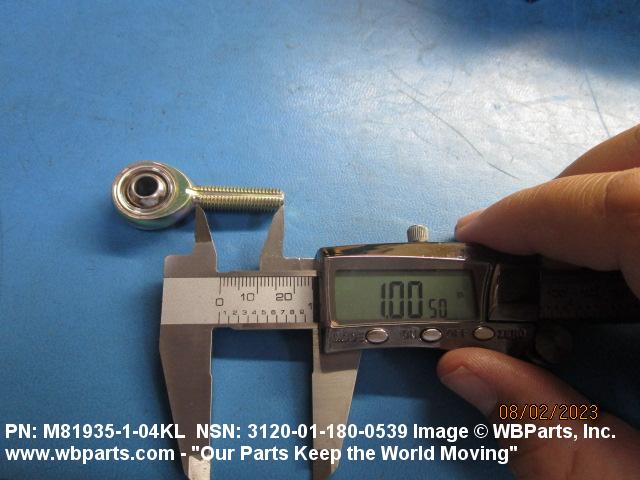

| SHANK THREAD LENGTH | 0.9370 INCHES MINIMUM AND 0.9990 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |

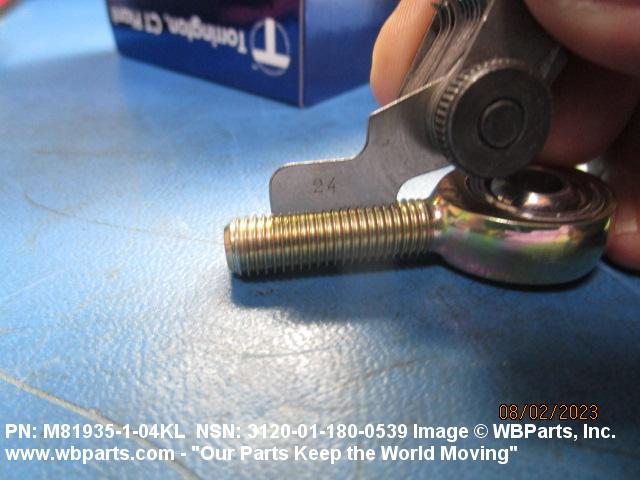

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
| SPECIAL FEATURES | KEYWAY IN SHANK 0.093 IN. MIN WIDE 0.098 IN. MAX WIDE; 0.060 IN. MIN DEEP 0.065 IN. MAX DEEP; SURFACE FINISH ON BALL PASSIVATE PER MIL-S-5002 OPTIONAL |
| SPECIFICATION/STANDARD DATA | 81349-MIL-B-81935/1A GOVERNMENT SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 3120-01-180-0539
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
