Product Details | ROD END PLAIN BEARING
3120-01-242-0349 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: MS21242S3K, M81935/1-03K, M81935103K, AS81935, AS81935/1, AS81935/1-3K, AS819351, AS8193513K, MIL-B-81935/1, MILB819351, 3120-01-242-0349, 01-242-0349, 3120012420349, 012420349
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 OCT 1986 | 01-242-0349 | 13209 ( BEARING, PLAIN, ROD END ) |

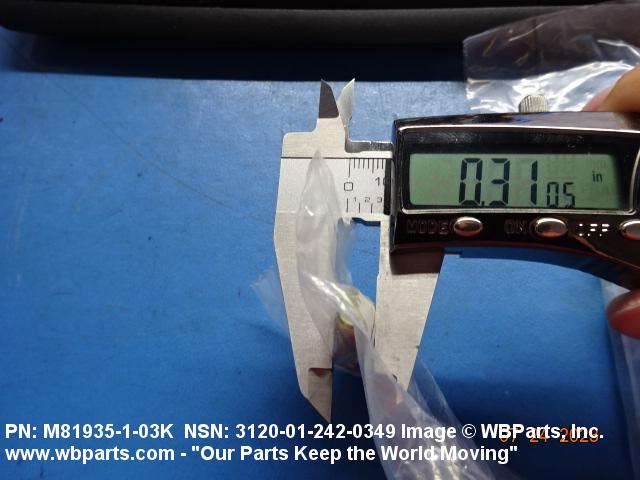

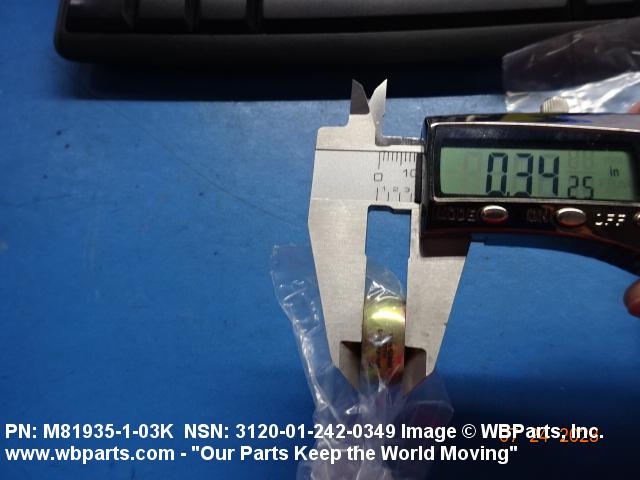

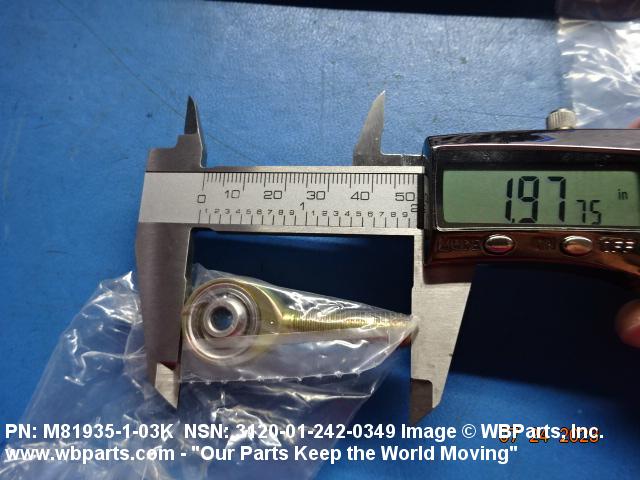

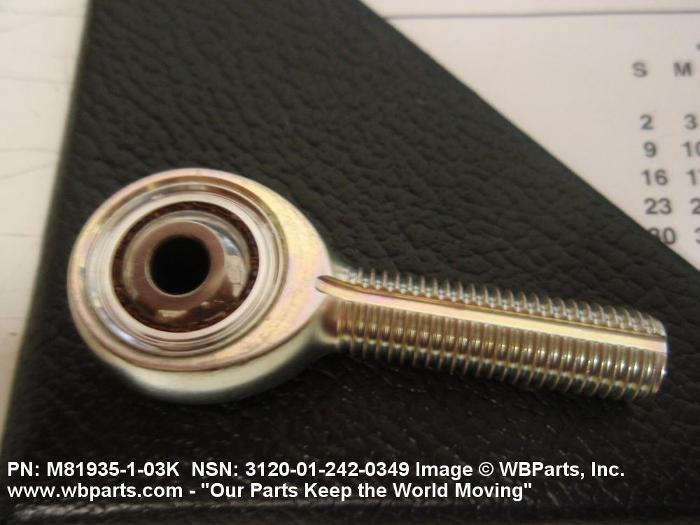

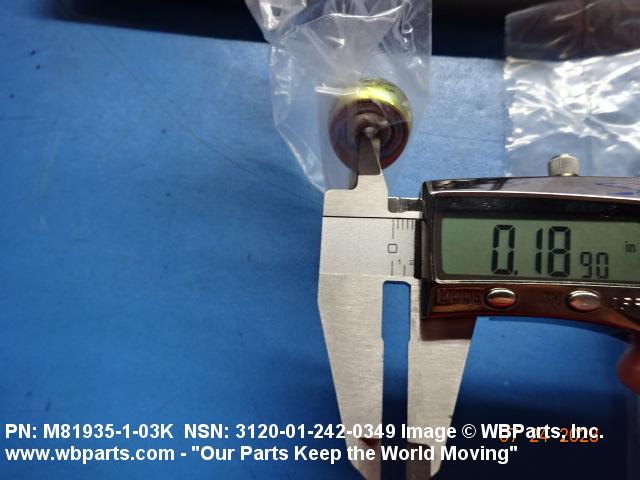

Drawings & Photos | NSN 3120-01-242-0349
Demand History | NSN 3120-01-242-0349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-242-0349 | 2023-07-13 | 14 | United States |
| 3120-01-242-0349 | 2023-06-28 | 14 | United States |
| 3120-01-242-0349 | 2023-05-18 | 62 | DIBBS |
| 3120-01-242-0349 | 2022-01-11 | 260 | FR |
| 3120-01-242-0349 | 2022-01-10 | 258 | FR |
| M81935103K | 2021-01-26 | 16 | Israel |
| 3120-01-242-0349 | 2018-06-21 | 17 | DIBBS |
| M81935103K | 2015-03-18 | 10 | United States |
| 3120-01-242-0349 | 2014-02-24 | 5 | DIBBS |
| 3120-01-242-0349 | 2013-07-01 | 9 | DIBBS |
| 3120-01-242-0349 | 2013-01-30 | 22 | DIBBS |
| 3120-01-242-0349 | 2012-06-14 | 7 | DIBBS |
| 3120-01-242-0349 | 2011-01-14 | 2 | United States |
| 3120-01-242-0349 | 2010-12-06 | 3 | DIBBS |
| 3120-01-242-0349 | 2010-09-04 | 13 | DIBBS |
| 3120-01-242-0349 | 2010-06-28 | 3 | DIBBS |
| 3120-01-242-0349 | 2010-02-24 | 6 | DIBBS |
| 3120-01-242-0349 | 2009-01-07 | 7 | DIBBS |
| AS81935 | 2008-02-11 | 4 | US |
| 3120-01-242-0349 | 2007-11-21 | 14 | DIBBS |
| 3120-01-242-0349 | 2007-11-16 | 16 | DIBBS |
| 3120-01-242-0349 | 2007-07-06 | 5 | DIBBS |
Cross Reference | NSN 3120-01-242-0349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/1-3K | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-03K | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-03K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21242S3K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-242-0349
Related Products | NSN 3120-01-242-0349
3120-01-242-0395, 3120-01-242-0506, 3120-01-242-0507, 3120-01-242-0509, 3120-01-242-0510
Technical Data | NSN 3120-01-242-0349
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP E4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 1.9650 INCHES NOMINAL |
| BORE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.7960 INCHES MINIMUM AND 0.8160 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.5520 INCHES MINIMUM AND 1.5720 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3320 INCHES MINIMUM AND 0.3420 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 2360 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 0.9370 INCHES MINIMUM AND 0.9990 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | KEYWAY IN SHANK |
Restrictions/Controls & Freight Information | NSN 3120-01-242-0349
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-242-0349
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
