Product Details | ROD END PLAIN BEARING

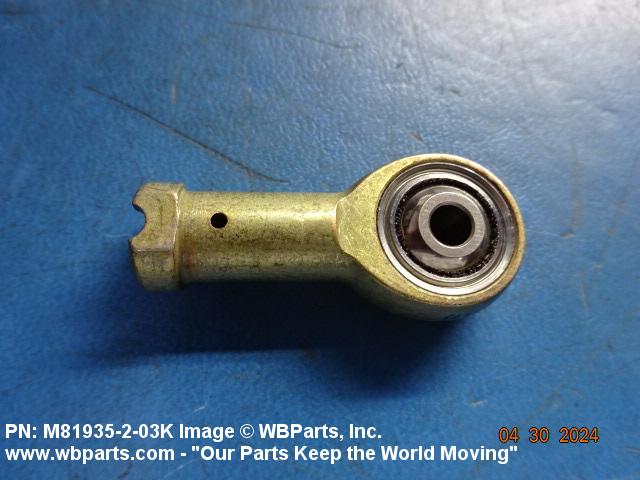

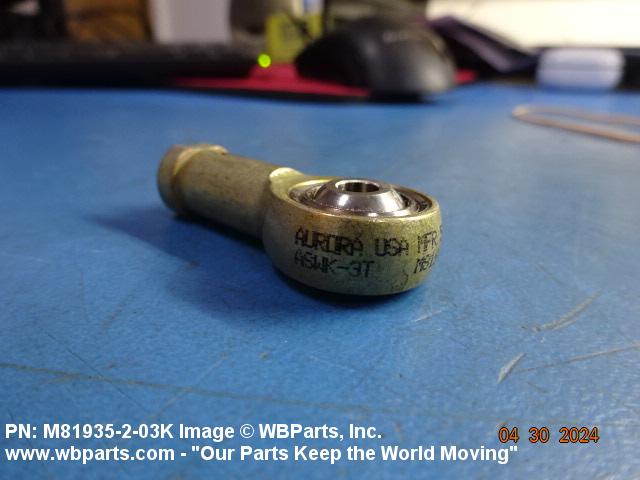

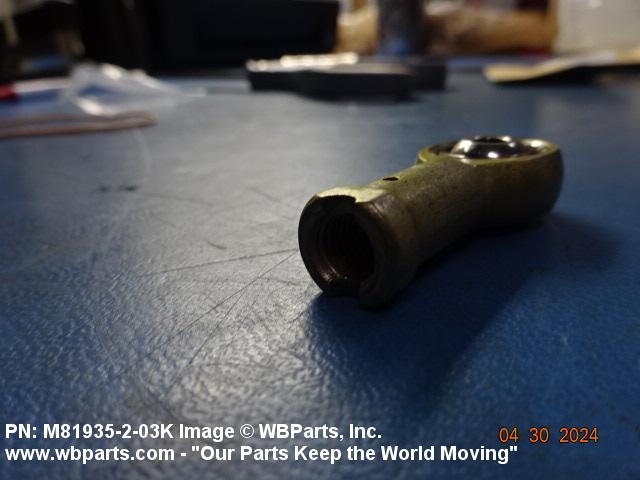

3120-01-407-5724 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: M81935/2-03K, M81935203K, AS81935/2, AS81935/2-03K, AS819352, AS81935203K, MIL-B-81935/2, MILB819352, 3120-01-407-5724, 01-407-5724, 3120014075724, 014075724
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 JAN 1984 | 01-407-5724 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-407-5724
Demand History | NSN 3120-01-407-5724
Cross Reference | NSN 3120-01-407-5724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81935/2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/2-03K | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/2-03K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-407-5724
Related Products | NSN 3120-01-407-5724
3120-01-407-6179, 3120-01-407-6200, 3120-01-407-6461, 3120-01-407-6486, 3120-01-407-6556
Technical Data | NSN 3120-01-407-5724
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER STEEL COMP E4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RING 39.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM ROD END BODY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

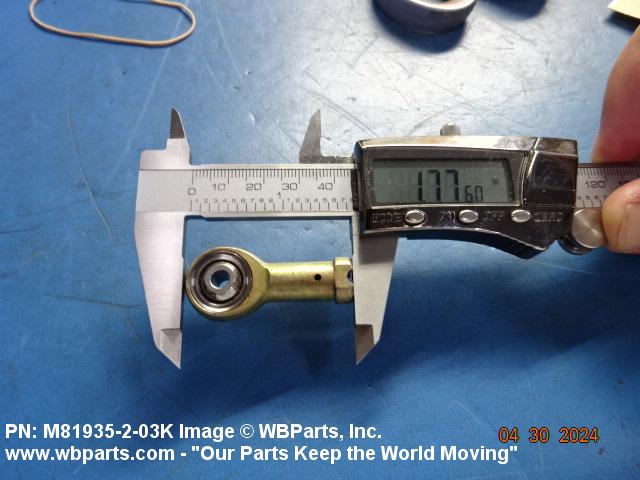

| OVERALL LENGTH | 1.7780 INCHES NOMINAL |

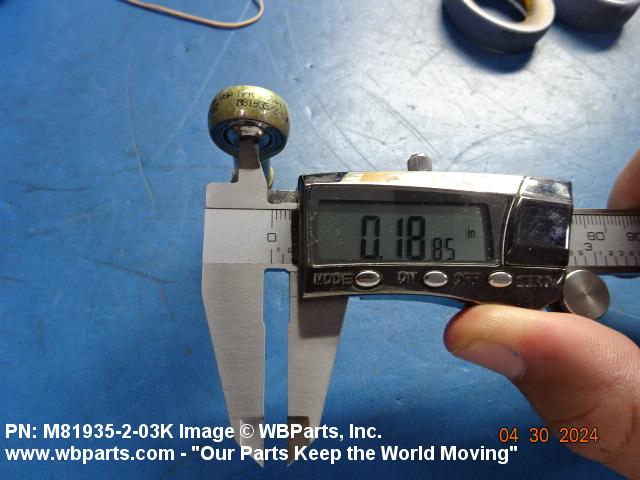

| BORE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |

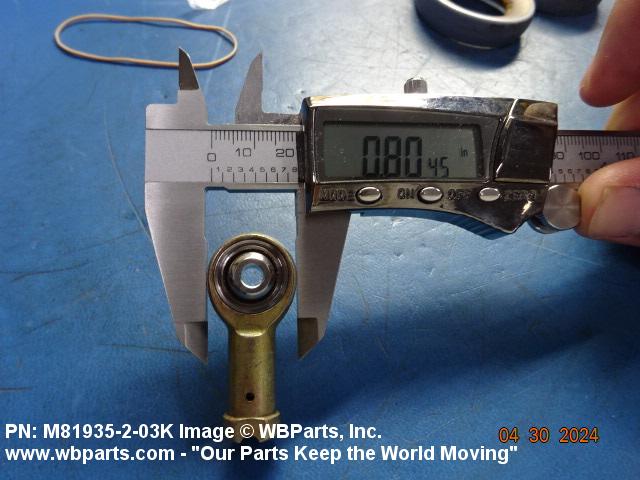

| OUTER MEMBER OUTSIDE DIAMETER | 0.7960 INCHES MINIMUM AND 0.8160 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.3650 INCHES MINIMUM AND 1.3850 INCHES MAXIMUM |

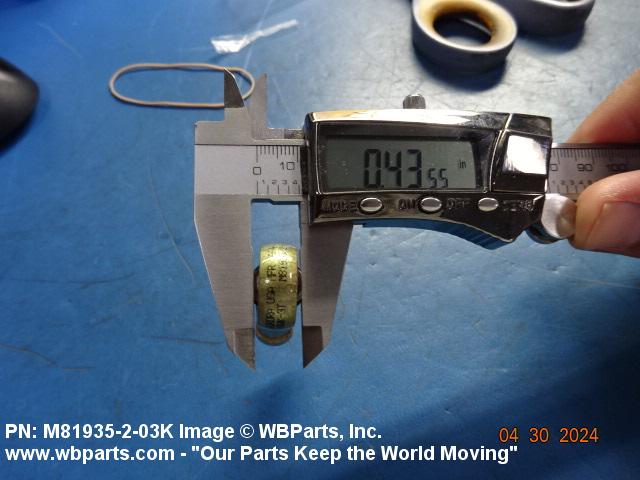

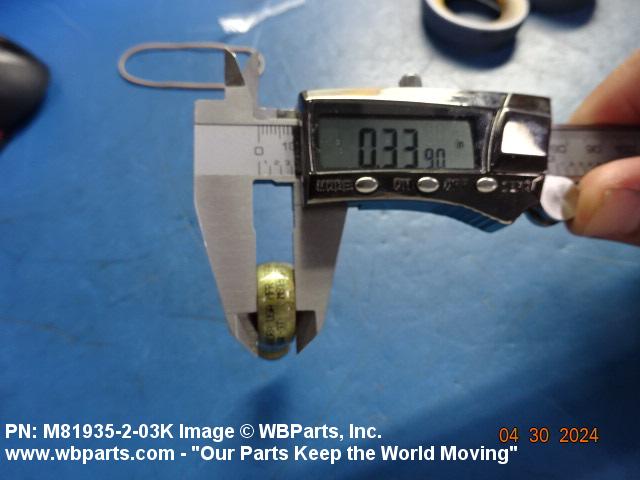

| OUTER MEMBER WIDTH | 0.3320 INCHES MINIMUM AND 0.3420 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 2360 POUNDS |
| SHANK STYLE | 7 INTERNALLY THREADED W/HEXAGON END AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 0.7500 INCHES NOMINAL |
| INSPECTION HOLE CENTER TO END DISTANCE | 0.3550 INCHES MINIMUM AND 0.3950 INCHES MAXIMUM |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.4270 INCHES MINIMUM AND 0.4390 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.312 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | KEYWAY IN SHANK; SURFACE FINISH ON BALL PASSIVATE PER MIL-S-5002 OPTIONAL |
| SPECIFICATION/STANDARD DATA | 81349-MIL-B-81935 GOVERNMENT SPECIFICATION |
