Product Details | WIRE ROPE
4010-01-200-7079 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Part Alternates: 012007079
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01-200-7079 | 30295 ( ROPE, WIRE ) |

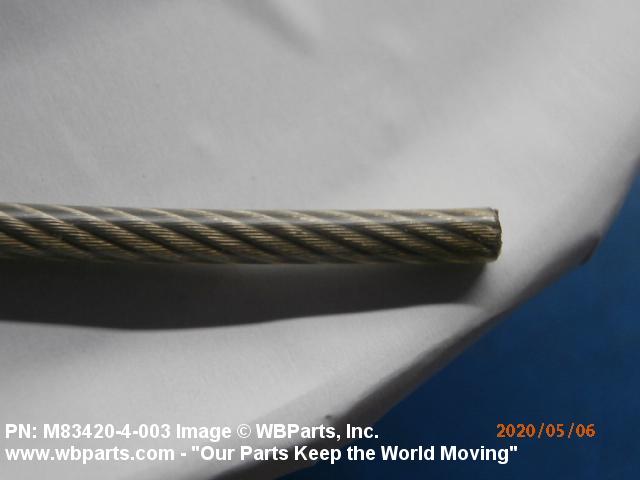

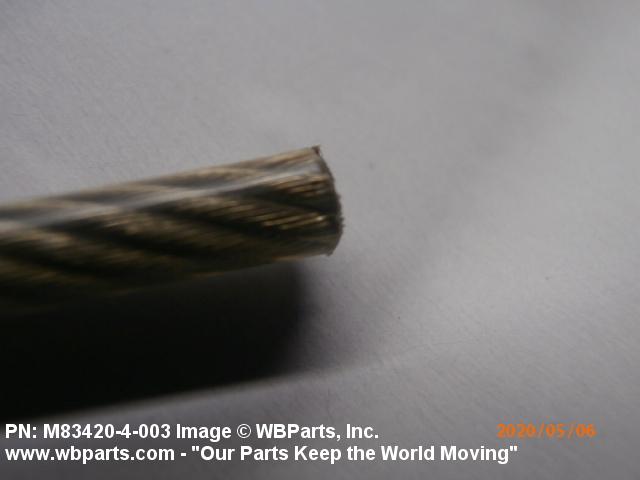

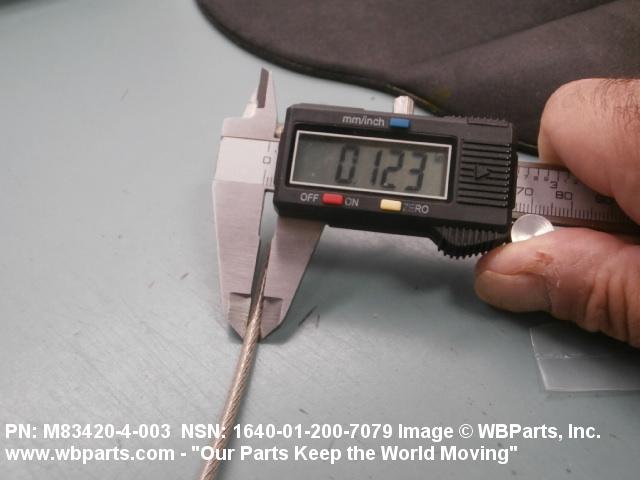

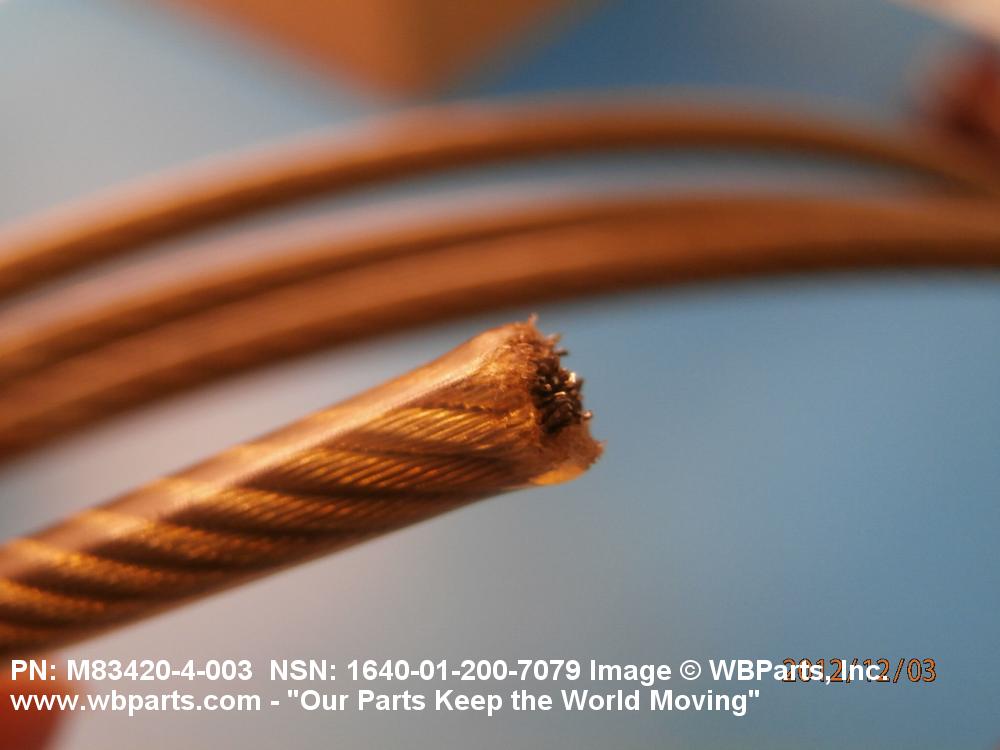

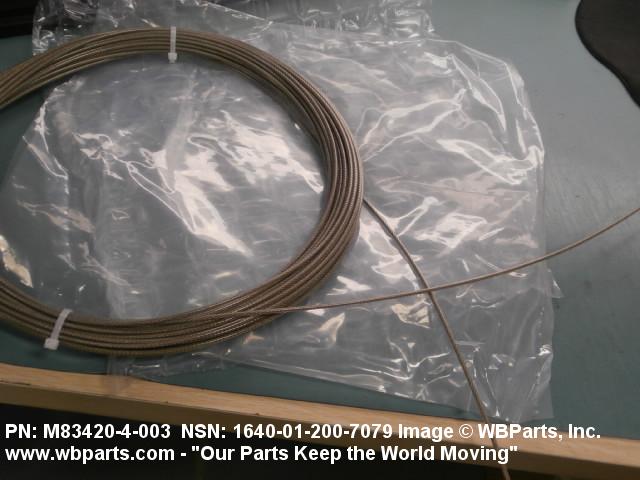

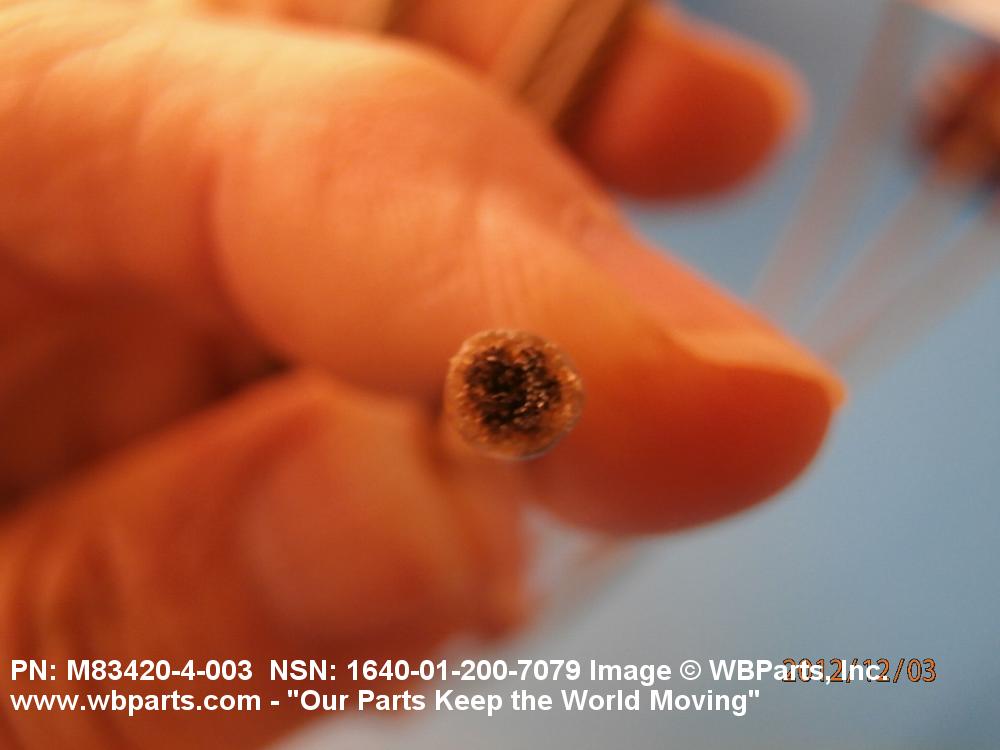

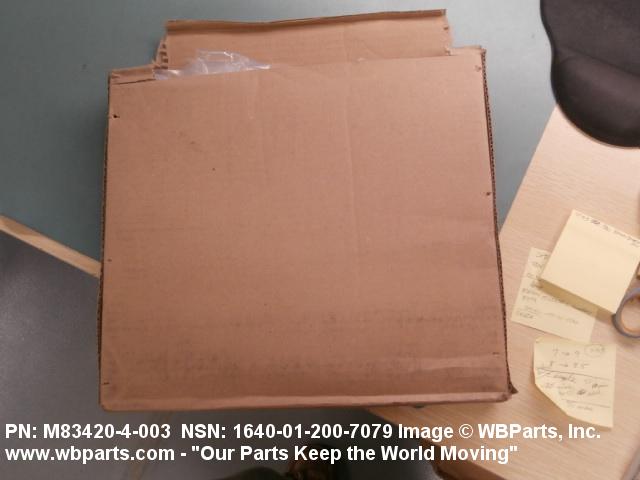

Drawings & Photos | NSN 1640-01-200-7079
Demand History | NSN 4010-01-200-7079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-01-200-7079 | 2017-12-11 | 1 | US |
| M834204003 | 2015-12-15 | 11 | Canada |
| M834204003 | 2014-11-20 | 22 | United States |
| M834204003 | 2014-04-22 | 50 | United States |
| M834204003 | 2014-04-22 | 50 | United States |
| 1640-01-200-7079 | 2012-11-09 | 1 | United States |
| MILDTL834204 | 2012-10-04 | 3 | Canada |
| M834204003 | 2012-08-08 | 1 | United States |
| M83420/4-003 | 2012-08-06 | 675 | United States |
| M834204003 | 2012-05-09 | 80 | US |
| M834204003 | 2012-03-09 | 35 | US |
| 1640-01-200-7079 | 2012-02-28 | 50 | US |
| M834204003 | 2012-02-03 | 2400 | US |
| M834204003 | 2012-01-19 | 100 | US |
| 8930T34 | 2011-04-21 | 12 | United States |
| M834204003 | 2011-04-18 | 27 | US |
| 1640-01-200-7079 | 2011-04-11 | 15 | US |
| 1640-01-200-7079 | 2011-01-12 | 30 | US |
| 1640-01-200-7079 | 2011-01-04 | 120 | US |
| 1640-01-200-7079 | 2010-08-31 | 22 | US |
| M834204003 | 2010-08-31 | 100 | US |
| 1640-01-200-7079 | 2010-07-29 | 1200 | US |
| M834204003 | 2010-07-21 | 230 | US |
| M834204003 | 2010-05-14 | 250 | US |
| M834204003 | 2010-03-10 | 4 | US |
| 1640-01-200-7079 | 2010-01-26 | 2500 | DIBBS |
| 1640-01-200-7079 | 2010-01-04 | 2469 | DIBBS |
| 1640-01-200-7079 | 2009-11-03 | 13318 | DIBBS |
| M834204003 | 2009-10-14 | 1 | US |
| 1640-01-200-7079 | 2009-10-07 | 125 | US |
| 1640-01-200-7079 | 2009-09-21 | 300 | United States |
| M834204003 | 2009-07-22 | 4 | US |
| M834204003 | 2009-05-14 | 20 | US |
| M834204003 | 2009-05-13 | 25600 | US |
| 1640-01-200-7079 | 2009-05-05 | 5622 | DIBBS |
| M834204003 | 2008-11-12 | 250 | United States |
| 1640-01-200-7079 | 2008-11-11 | 4604 | DIBBS |
| 1640-01-200-7079 | 2008-07-01 | 3100 | DIBBS |
| 1640-01-200-7079 | 2008-05-19 | 3201 | DIBBS |
| 1640-01-200-7079 | 2008-03-20 | 1 | US |
| 1640-01-200-7079 | 2008-03-10 | 2006 | DIBBS |
| 1640-01-200-7079 | 2007-08-09 | 2114 | DIBBS |
| 1640-01-200-7079 | 2007-07-09 | 2557 | DIBBS |
| M834204003 | 2007-06-27 | 500 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4010-01-200-7079
Related Products | NSN 4010-01-200-7079
1640-01-201-0215, 1640-01-201-9062, 1640-01-202-2838, 1640-01-202-7014, 1640-01-203-0941
Technical Data | NSN 4010-01-200-7079
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PLASTIC OVERALL |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | A124 7 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | STRAIGHT OR PREFORMED |
| OVERALL LENGTH | 100.000 FEET NOMINAL |
| DIAMETER | 0.094 INCHES MINIMUM AND 0.104 INCHES MAXIMUM ROPE |
| BREAKING STRENGTH | 920.0 POUNDS MINIMUM |
| PROOF TEST LOAD | 736.000 POUNDS |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND B COMPOSITION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-83420/4 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83420/4-003 |
Restrictions/Controls & Freight Information | NSN 4010-01-200-7079
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
