Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-328-6153 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: SW516, SW-5-16, 4010-01-328-6153, 01-328-6153, 4010013286153, 013286153
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 06 NOV 1990 | 01-328-6153 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-328-6153
Cross Reference | NSN 4010-01-328-6153
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SW-5-16 | 91796 | DETROIT DIAMOND DRILLING INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4010-01-328-6153
4010-01-328-6565, 4010-01-328-7141, 4010-01-328-7407, 4010-01-328-7557, 4010-01-328-8515
Technical Data | NSN 4010-01-328-6153
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL WIRE ROPE |

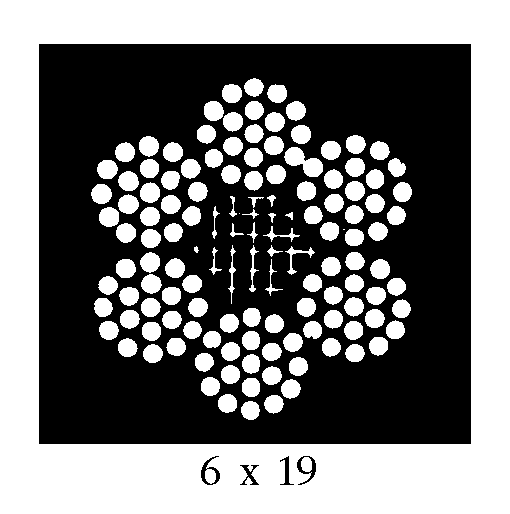

| STYLE DESIGNATOR | A56 6 X 19 |
| DIAMETER | 0.500 INCHES NOMINAL ROPE |
| END TYPE | LOOP BOTH ENDS |
| LOOP RETENTION METHOD | CLAMP |

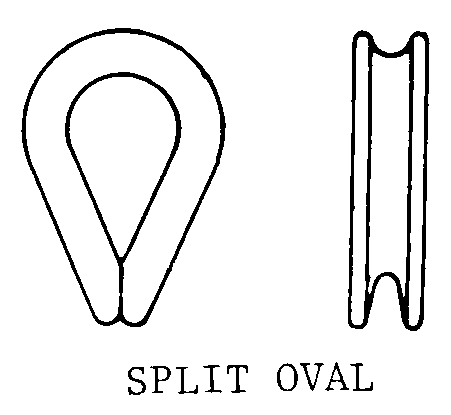

| THIMBLE STYLE | E6 SPLIT OVAL BOTH ENDS |
| THIMBLE QUANTITY | 2 BOTH ENDS |
| FURNISHED ITEMS AND QUANTITY | 2 CLAMP |
Restrictions/Controls & Freight Information | NSN 4010-01-328-6153
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
