Product Details | SINGLE LEG CHAIN ASSEMBLY
4010-01-413-0743 An assembly of chain(s) with attachment(s) in a continuous run from end to end. It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), swivel(s), or hook(s), etc..
Part Alternates: BACC19B7042, BACC19B7-042, 4010-01-413-0743, 01-413-0743, 4010014130743, 014130743
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 05 MAY 1995 | 01-413-0743 | 09765 ( CHAIN ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-413-0743
Cross Reference | NSN 4010-01-413-0743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACC19B7-042 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4010-01-413-0743
4010-01-413-2109, 4010-01-413-2111, 4010-01-413-2665, 4010-01-413-3701, 4010-01-413-4014
Technical Data | NSN 4010-01-413-0743
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

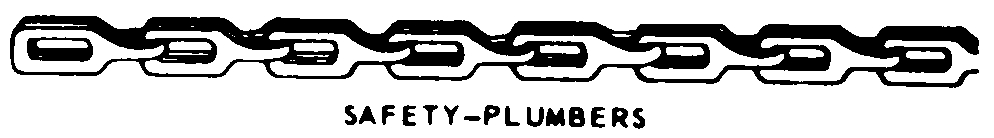

| STYLE DESIGNATOR | C7 SAFETY-PLUMBERS |
| OVERALL LENGTH | 4.500 FEET NOMINAL |
| THICKNESS | 0.023 INCHES NOMINAL |
| FABRICATION METHOD | COLD DRAWN |
| END TYPE | TERMINAL ATTACHMENT FIRST END PLAIN SECOND END |

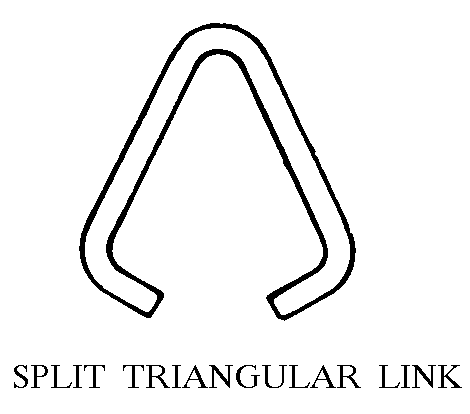

| ATTACHMENT STYLE | D91 SPLIT TRIANGULAR LINK TERMINAL ATTACHMENT FIRST END D161 EYE AND LINK SWIVEL 1ST INTERMEDIATE ATTACHMENT |
Restrictions/Controls & Freight Information | NSN 4010-01-413-0743
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
