Product Details | SINGLE LEG FIBER ROPE ASSEMBLY
4020-00-541-6777 An assembly of fiber rope with or without terminal attachments in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain intermediate and/or end attachments such as sliding or fixed ring(s) or hook(s).
Part Alternates: WIRESTRANDMANILA, 4020-00-541-6777, 00-541-6777, 4020005416777, 005416777
Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-541-6777 | 09766 ( FIBER ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4020-00-541-6777
Cross Reference | NSN 4020-00-541-6777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WIRESTRANDMANILA | 90160 | AMERICAN MFG CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4020-00-541-6777
Related Products | NSN 4020-00-541-6777
4020-00-541-7075, 4020-00-542-2061, 4020-00-542-2523, 4020-00-542-2780, 4020-00-542-3001
Technical Data | NSN 4020-00-541-6777
| Characteristic | Specifications |
|---|---|
| CORE YARN QUANTITY | 1 |
| STRAND QUANTITY | 3 |
| CIRCUMFERENCE | 1.375 INCHES NOMINAL |
| BREAKING STRENGTH | 2650.0 POUNDS MINIMUM |
| FABRICATION METHOD | TWISTED |
| ENVIRONMENTAL PROTECTION | MILDEW RESISTANT |
| COLOR | NATURAL |
| LENGTH PER WEIGHT | ANY ACCEPTABLE |
| LENGTH PER TEN TURNS | 16.125 INCHES NOMINAL |

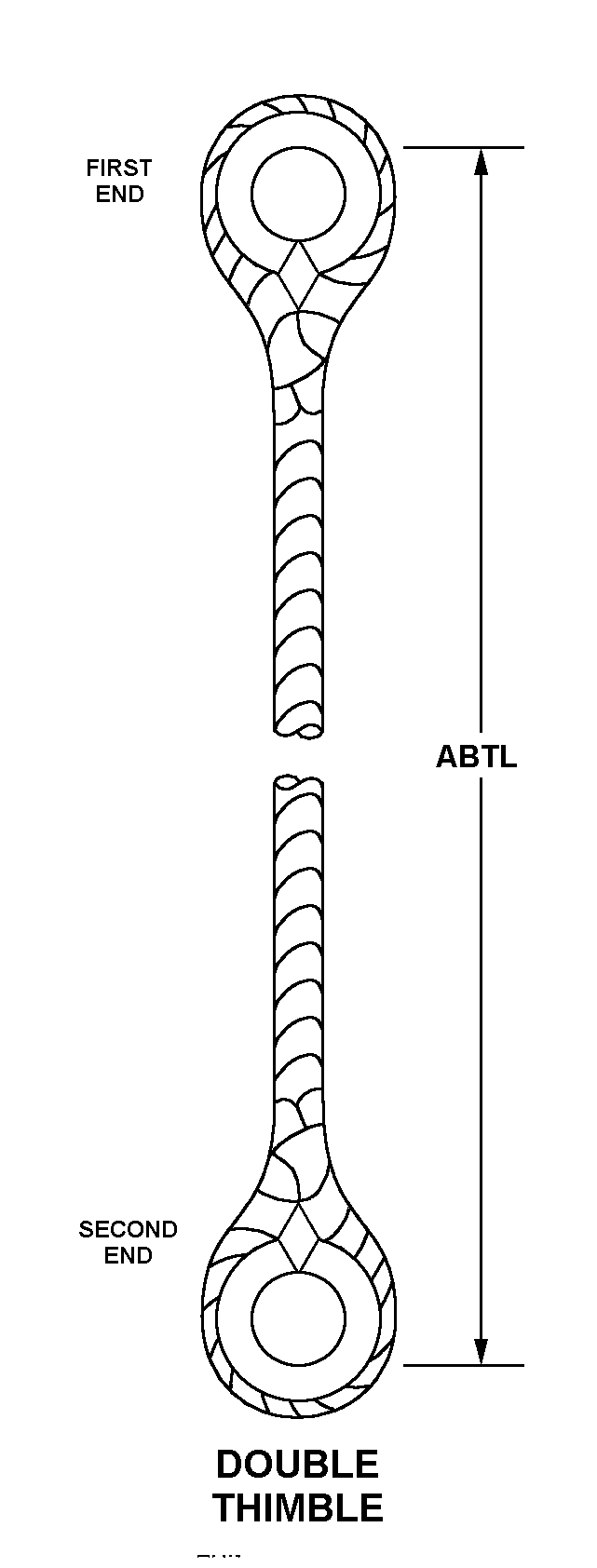

| ROPE STYLE | 5 DOUBLE THIMBLE |
| LOOP RETENTION METHOD | SPLICE |

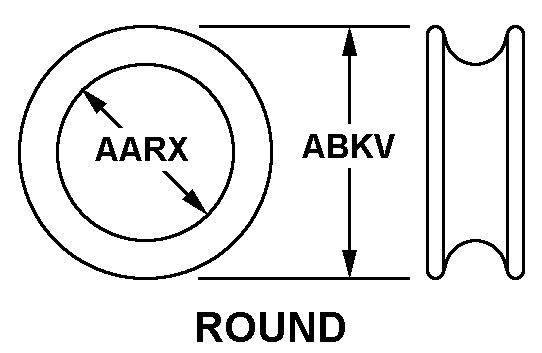

| THIMBLE STYLE | 1 ROUND |
| INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| OUTSIDE DIAMETER | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4020-00-541-6777
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 053390 | CORD/CORDAGE/ROPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4020-00-541-6777
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
