Product Details | FIBROUS CORD
4020-00-818-4880 A braided cordage item (or twisted fiber glass item) of any diameter with or without a core (includes natural or synthetic fibers). Excludes items with fittings; LINE (as modified). See also TWINE, FIBROUS and ROPE, FIBROUS.
Part Alternates: TC571, 4020-00-818-4880, 00-818-4880, 4020008184880, 008184880
Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-818-4880 | 31132 ( CORD, FIBROUS ) |

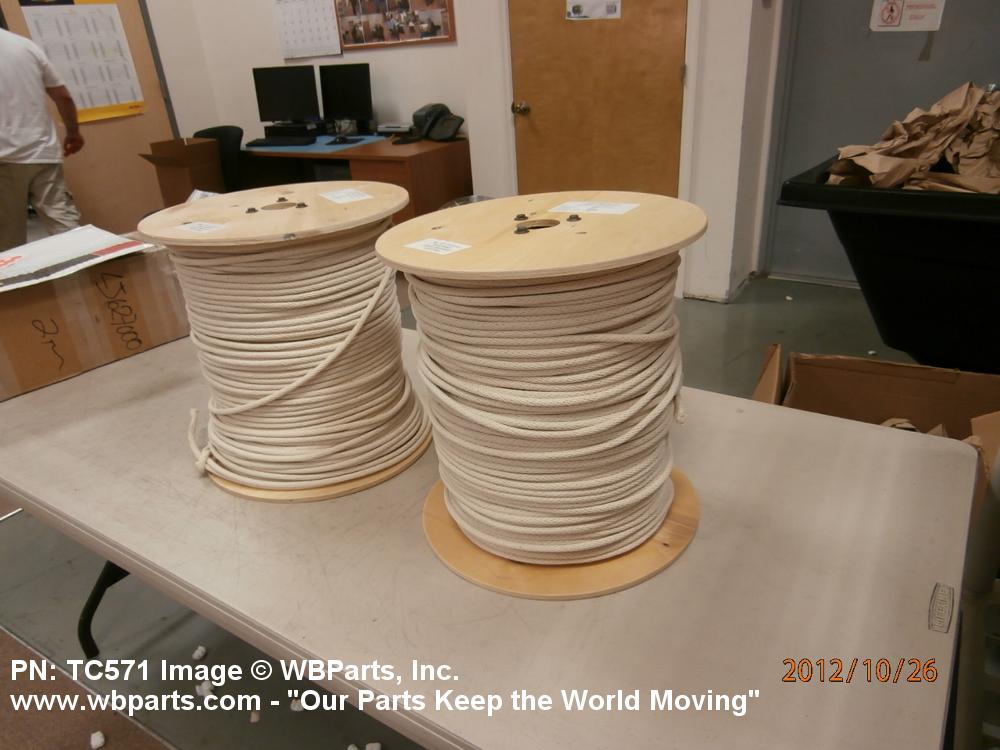

Drawings & Photos | NSN 4020-00-818-4880
Demand History | NSN 4020-00-818-4880
Cross Reference | NSN 4020-00-818-4880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TC571 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4020-00-818-4880
4020-00-819-3537, 4020-00-820-0928, 4020-00-821-1144, 4020-00-823-6933, 4020-00-823-6934
Technical Data | NSN 4020-00-818-4880
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | COTTON OVERALL |
| CORE YARN QUANTITY | ANY ACCEPTABLE |
| STRAND QUANTITY | 12 |
| BREAKING STRENGTH | 240.0 POUNDS MINIMUM |
| FABRICATION METHOD | BRAIDED |
| SURFACE CONDITION | SOFT |
| ENVIRONMENTAL PROTECTION | MILDEW RESISTANT AND WATER REPELLENT |
| IMPREGNATION MATERIAL | COPPER-8-QUINOLINOLATE AND COMPOUND, WATER REPELLENT |
| COLOR | NATURAL |
| OVERALL DIAMETER | 0.188 INCHES NOMINAL |
| LENGTH PER WEIGHT | 55.000 FEET PER POUND NOMINAL |
| ISSUE FORM | COIL |
| LENGTH | 400.000 YARDS MINIMUM AND 440.000 YARDS MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 CLASS AND 6 SIZE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | TC571 |
Restrictions/Controls & Freight Information | NSN 4020-00-818-4880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
