Product Details | SINGLE LEG FIBER ROPE ASSEMBLY
4020-01-388-5789 An assembly of fiber rope with or without terminal attachments in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain intermediate and/or end attachments such as sliding or fixed ring(s) or hook(s).
Part Alternates: 261120, 6286, 4020-01-388-5789, 01-388-5789, 4020013885789, 013885789
Rope, Cable, Chain, and Fittings | Fiber Rope, Cordage, and Twine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 04 APR 1994 | 01-388-5789 | 09766 ( FIBER ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4020-01-388-5789
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4020-01-388-5789
4020-01-388-9111, 4020-01-389-8657, 4020-01-390-3026, 4020-01-390-4999, 4020-01-390-6741
Technical Data | NSN 4020-01-388-5789
| Characteristic | Specifications |
|---|---|
| STRAND QUANTITY | 12 |
| FABRICATION METHOD | BRAIDED |
| COLOR | BLACK |

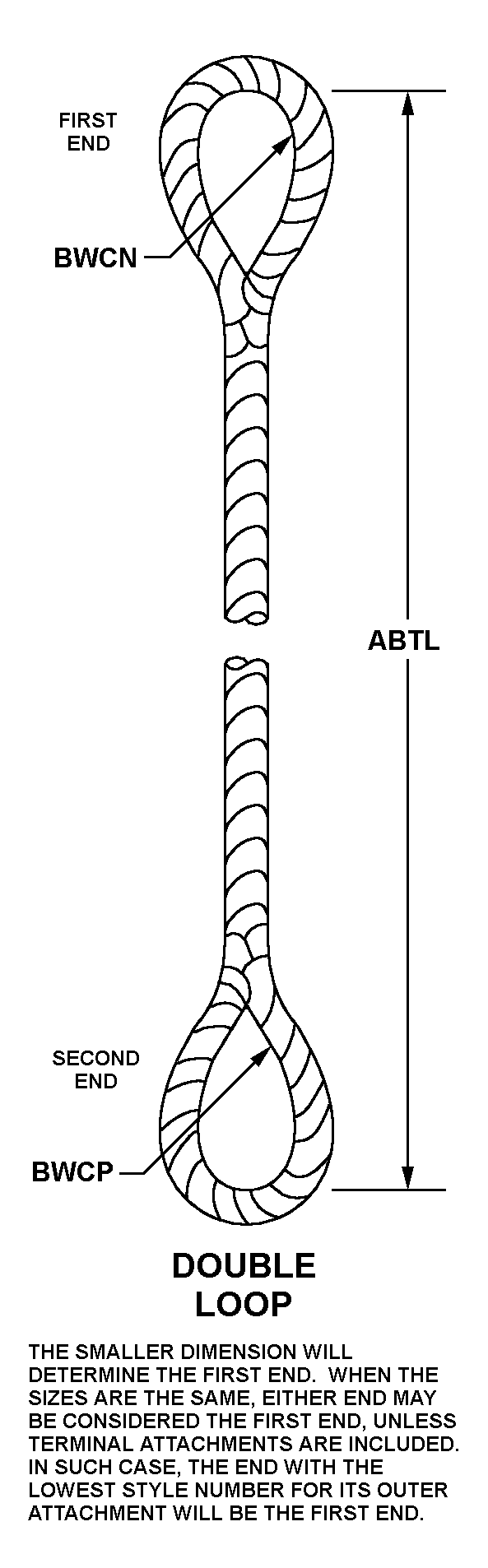

| ROPE STYLE | 1 DOUBLE LOOP |
| FIRST INNER PERIMETER | 0.700 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| SECOND INNER PERIMETER | 0.700 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| LOOP RETENTION METHOD | SPLICE |
| ASSEMBLY MATERIAL AND LOCATION | FIBER ROPE |
Restrictions/Controls & Freight Information | NSN 4020-01-388-5789
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 053390 | CORD/CORDAGE/ROPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4020-01-388-5789
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
