Product Details | CENTRIFUGAL PUMP UNIT
4320-00-211-9152 An assembled unit consisting of a commonly mounted centrifugal pump(s), prime mover(s), and the necessary components to provide for a complete operation.
Part Alternates: A670S47003131702, A670S4700-3131702, A670, 4320-00-211-9152, 00-211-9152, 4320002119152, 002119152
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-211-9152 | 17988 ( PUMP UNIT, CENTRIFUGAL ) |

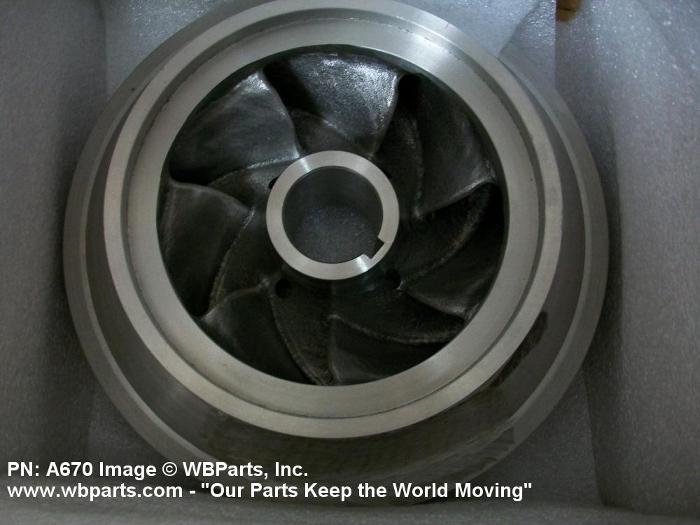

Drawings & Photos | NSN 4320-00-211-9152
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4320-00-211-9152
Related Products | NSN 4320-00-211-9152
4320-00-212-0030, 4320-00-212-0632, 4320-00-212-1451, 4320-00-212-1518, 4320-00-212-1519
Technical Data | NSN 4320-00-211-9152
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 25.0 GALLONS PER MINUTE |
| TOTAL HEAD | 10.000 FEET |
| OPERATING SPEED AT RATED CAPACITY | 1750.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | OIL |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| CENTRIFUGAL PUMP DESIGN | RADIAL FLOW |
| CENTRIFUGAL PUMP IMPELLER QUANTITY | 2 |
| CENTRIFUGAL PUMP IMPELLER SUCTION TYPE | SINGLE |
| STAGE QUANTITY | 1 |
| FEATURES PROVIDED | SELF-PRIMING |
| OPERATION RELATIONSHIP DESIGN | SIMULTANEOUS |
| PUMP QUANTITY | 2 |
| INTAKE CONNECTION QUANTITY | 2 |
| INTAKE CONNECTION TYPE | ROUND FLANGE |
| DISCHARGE CONNECTION QUANTITY | 2 |
| DISCHARGE CONNECTION TYPE | ROUND FLANGE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PRIME MOVER COOLING MEDIUM | AIR |
| PRIME MOVER QUANTITY | 1 |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 230.0 |
| CURRENT RATING IN AMPS | 2.3 |
| INCLOSURE TYPE | FULLY INCLOSED |
| ENVIRONMENTAL PROTECTION | SPLASH PROOF |
| COOLING METHOD | BLOWER COOLED |
| MANUFACTURERS CODE | 64392 |
| DESIGN CONTROL REFERENCE | A670S4700-3131702 |
Restrictions/Controls & Freight Information | NSN 4320-00-211-9152
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
