Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4540-01-328-6083 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: SK-3459-0057506 2, SK345900575062, 5750275005, 5750275-005, 2615750275, 261-5750275, 26157502751, 261-5750275-1, 00575062, 4540-01-328-6083, 01-328-6083, 4540013286083, 013286083
Plumbing, Heating, and Waste Disposal Equipment | Waste Disposal Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 06 NOV 1990 | 01-328-6083 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |

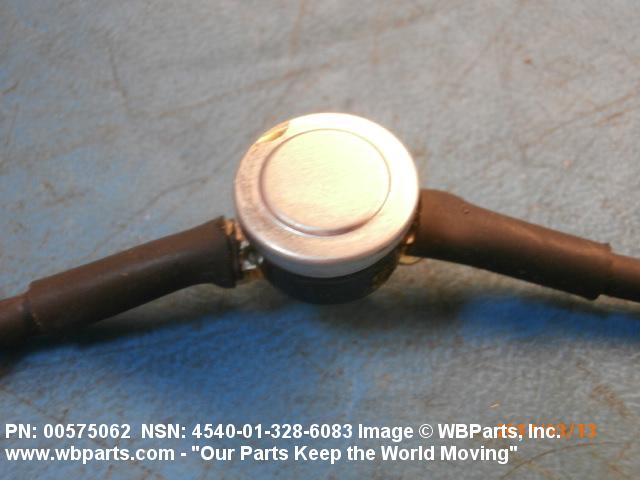

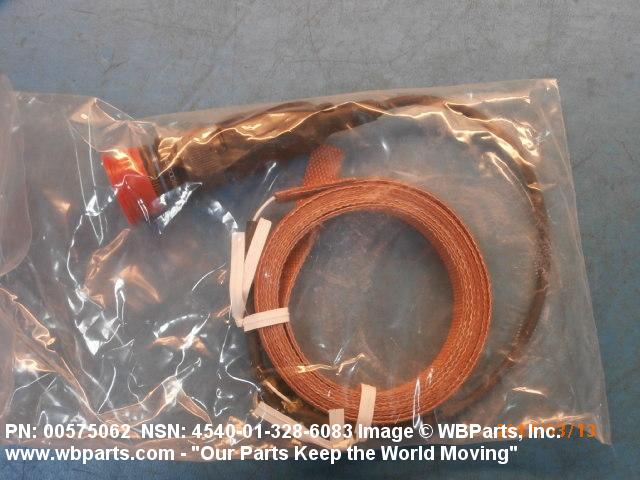

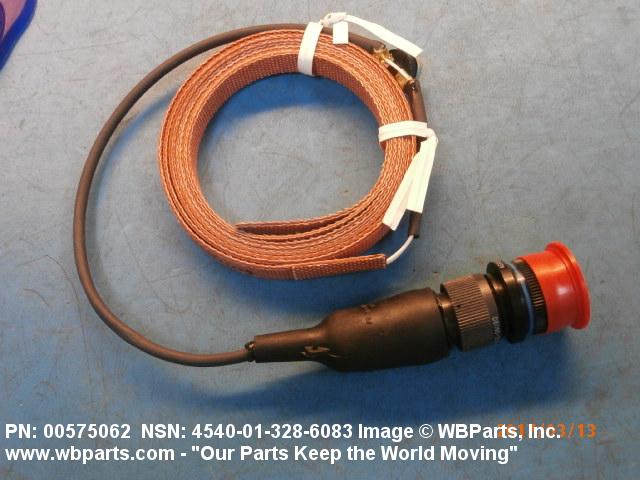

Drawings & Photos | NSN 4540-01-328-6083
Demand History | NSN 4540-01-328-6083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4540-01-328-6083 | 2017-03-01 | 1 | United States |
| 4540-01-328-6083 | 2016-01-10 | 6 | DIBBS |
| 4540-01-328-6083 | 2015-05-14 | 6 | DIBBS |
| 4540-01-328-6083 | 2015-03-15 | 5 | DIBBS |
| 4540-01-328-6083 | 2013-06-11 | 5 | DIBBS |
| 4540-01-328-6083 | 2011-07-12 | 3 | DIBBS |
| 4540-01-328-6083 | 2011-03-25 | 2 | DIBBS |
| 4540-01-328-6083 | 2011-01-30 | 1 | DIBBS |
| 4540-01-328-6083 | 2010-07-13 | 5 | DIBBS |
| 4540-01-328-6083 | 2010-01-21 | 5 | DIBBS |
Cross Reference | NSN 4540-01-328-6083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00575062 | 79221 | WATLOW ELECTRIC MANUFACTURING COMPANY |
| 261-5750275 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 261-5750275-1 | 50079 | TEXTRON INC. DBA TEXTRON SYSTEMS MARINE & LAND |
| 5750275-005 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5750275-005 | 79221 | WATLOW ELECTRIC MANUFACTURING COMPANY |
| SK-3459-0057506 2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4540-01-328-6083
4540-01-328-6084, 4540-01-328-6085, 4540-01-328-8540, 4540-01-329-2121, 4540-01-329-3452
Technical Data | NSN 4540-01-328-6083
| Characteristic | Specifications |
|---|---|
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| OVERALL LENGTH | 93.000 INCHES NOMINAL |

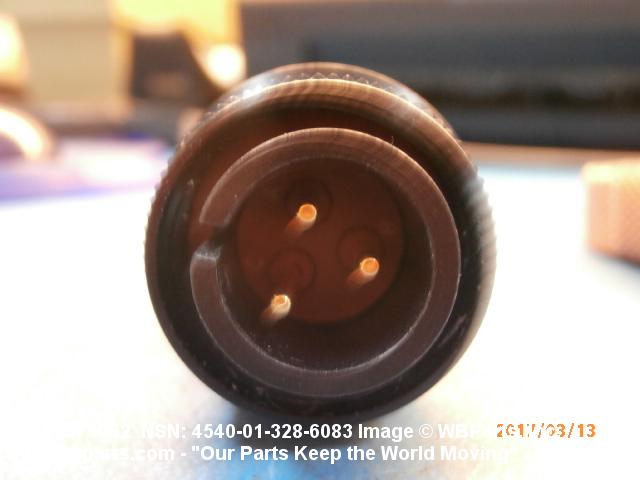

| ELEMENT CONNECTION STYLE | CONNECTOR RECEPTACLE |

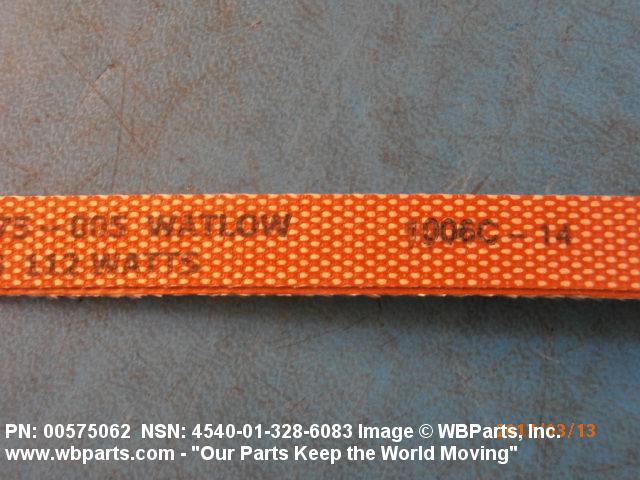

| MAXIMUM WATTAGE RATING IN WATTS | 112.0 SINGLE VOLTAGE |
| BODY STYLE | TUBULAR, SCREW TYPE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |

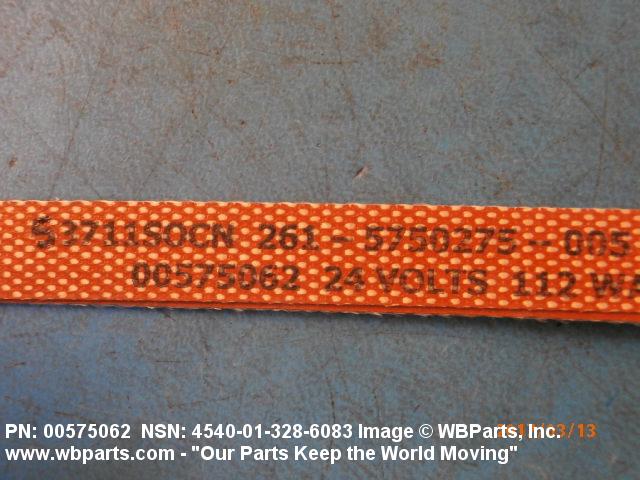

| VOLTAGE IN VOLTS AND CURRENT TYPE | 24.0 DC SINGLE VOLTAGE |
| MATERIAL | PLASTIC RESISTANCE WIRE |
Restrictions/Controls & Freight Information | NSN 4540-01-328-6083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4540-01-328-6083
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
