Product Details | METAL TUBE ASSEMBLY
4710-01-074-7231 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 30013781, 3001378-1, 4710-01-074-7231, 01-074-7231, 4710010747231, 010747231
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 APR 1979 | 01-074-7231 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-074-7231
Cross Reference | NSN 4710-01-074-7231
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3001378-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4710-01-074-7231
4710-01-074-7358, 4710-01-074-7855, 4710-01-074-7856, 4710-01-074-7857, 4710-01-074-8135
Technical Data | NSN 4710-01-074-7231
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL |
| TUBE OUTSIDE DIAMETER | 0.188 INCHES NOMINAL |
| WALL THICKNESS | 0.094 INCHES NOMINAL |

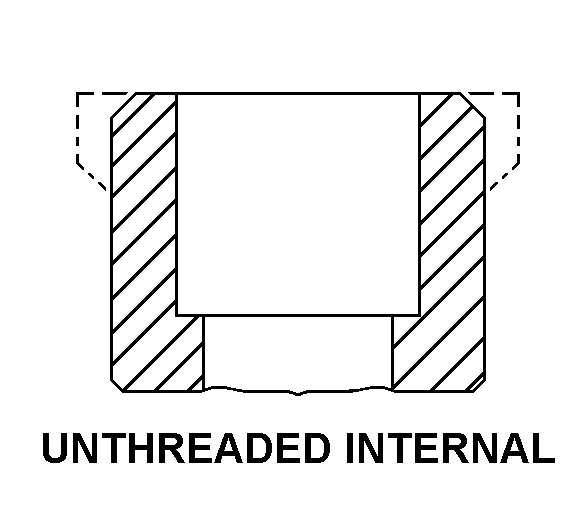

| END CONNECTION STYLE | B21 UNTHREADED INTERNAL B70 PLAIN |
| CONNECTION SPECIAL DESIGN | UNION UNION |
| MATING END QUANTITY | 1 1 |
| MATERIAL | STEEL STEEL |
| BOLT HOLE QUANTITY | 2 |
| BOLT HOLE DIAMETER | 0.218 INCHES NOMINAL |
| DESIGN FORM | STRAIGHT |
| OVERALL LENGTH | 4.704 INCHES NOMINAL |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3001378-1 |
Restrictions/Controls & Freight Information | NSN 4710-01-074-7231
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4710-01-074-7231
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
