Product Details | METAL TUBE ASSEMBLY
4710-01-457-1303 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: BBD314030, 14105, 4710-01-457-1303, 01-457-1303, 4710014571303, 014571303
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 JUL 1998 | 01-457-1303 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-457-1303
Demand History | NSN 4710-01-457-1303
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14105 | 2014-12-02 | 2 | SA |
| 4710-01-457-1303 | 2014-08-04 | 32 | DIBBS |
| 4710-01-457-1303 | 2014-07-22 | 32 | DIBBS |
| 4710-01-457-1303 | 2013-02-01 | 17 | DIBBS |
| 4710-01-457-1303 | 2012-09-19 | 8 | DIBBS |
| 4710-01-457-1303 | 2012-09-06 | 6 | DIBBS |
| 4710-01-457-1303 | 2012-08-14 | 27 | DIBBS |
| 4710-01-457-1303 | 2012-05-08 | 9 | DIBBS |
| 4710-01-457-1303 | 2012-03-29 | 3 | DIBBS |
| 4710-01-457-1303 | 2012-03-23 | 1 | DIBBS |
| 4710-01-457-1303 | 2011-07-15 | 9 | DIBBS |
| 4710-01-457-1303 | 2011-06-06 | 5 | DIBBS |
| 4710-01-457-1303 | 2010-07-02 | 7 | DIBBS |
| 4710-01-457-1303 | 2010-02-16 | 4 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4710-01-457-1303
Related Products | NSN 4710-01-457-1303
4710-01-457-1375, 4710-01-457-1474, 4710-01-457-1475, 4710-01-457-1599, 4710-01-457-1942
Technical Data | NSN 4710-01-457-1303
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL |
| TUBE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |

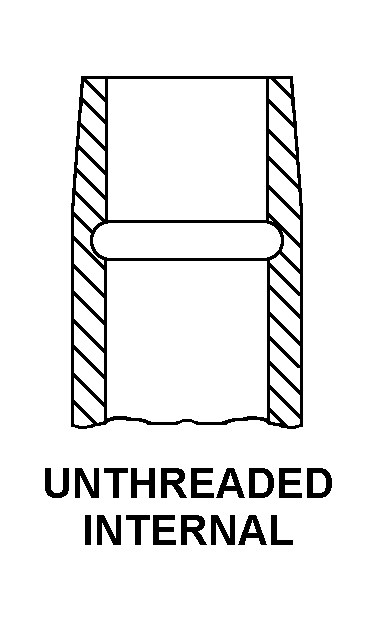

| END CONNECTION STYLE | B28 UNTHREADED INTERNAL |
| MATING END QUANTITY | 2 |
| MATERIAL | STEEL |
| SEAT ANGLE IN DEG | 37.0 |
| SPECIAL FEATURES | INCLUDES TUBE, HYDRAULIC, P/N 13933 1 EA; SLEEVE, P/N 4 TX-S 2 EA; NUT P/N 4BTX-S 2 EA. |
| III END ITEM IDENTIFICATION | 3990-01-442-1939 BAP (BRIDGE ADAPTER PALLET) |
Restrictions/Controls & Freight Information | NSN 4710-01-457-1303
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-457-1303
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
