Product Details | PREFORMED HOSE
4720-00-287-8620 A length of nonmetallic hose, molded to a predetermined shape and size.
Part Alternates: VF122, M70, 1313HD, 26501, 4720-00-287-8620, 00-287-8620, 4720002878620, 002878620
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 SEP 1973 | 00-287-8620 | 17271 ( HOSE, PREFORMED ) |

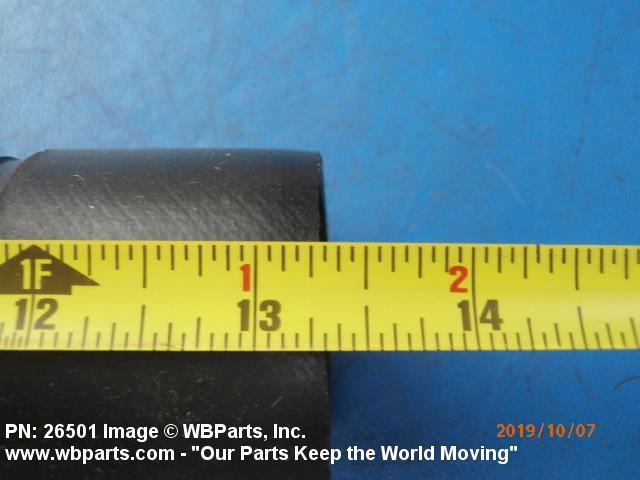

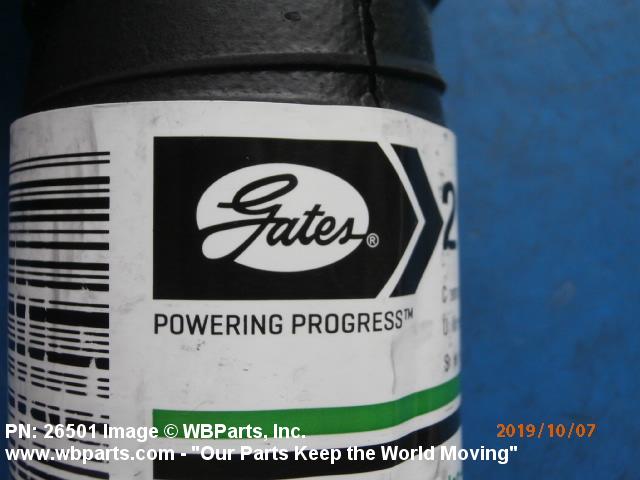

Drawings & Photos | NSN 4720-00-287-8620
Demand History | NSN 4720-00-287-8620
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M70 | 2023-04-06 | 121 | DIBBS |
| M70 | 2021-09-28 | 49 | DIBBS |
| 26501 | 2019-09-26 | 5 | United States |
| 26501 | 2019-09-24 | 4 | US |
| 26501 | 2019-09-24 | 10 | US |
| 26501 | 2019-09-24 | 20 | US |
| 26501 | 2019-09-06 | 5 | US |
| 26501 | 2017-06-26 | 1 | United States |
| 4720-00-287-8620 | 2012-07-24 | 53 | DIBBS |
| 4720-00-287-8620 | 2011-10-05 | 24 | DIBBS |
| 4720-00-287-8620 | 2011-07-30 | 18 | DIBBS |
| 4720-00-287-8620 | 2011-07-10 | 4 | DIBBS |
| 4720-00-287-8620 | 2011-06-05 | 10 | DIBBS |
| 4720-00-287-8620 | 2011-05-12 | 1 | DIBBS |
| 4720-00-287-8620 | 2011-05-01 | 8 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4720-00-287-8620
Related Products | NSN 4720-00-287-8620
4720-00-287-8836, 4720-00-288-0547, 4720-00-288-0551, 4720-00-288-3975, 4720-00-288-6810
Technical Data | NSN 4720-00-287-8620
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC |
| COVER MATERIAL | RUBBERIZED FABRIC |
| STYLE DESIGNATOR | C8 STRAIGHT CORRUGATED |

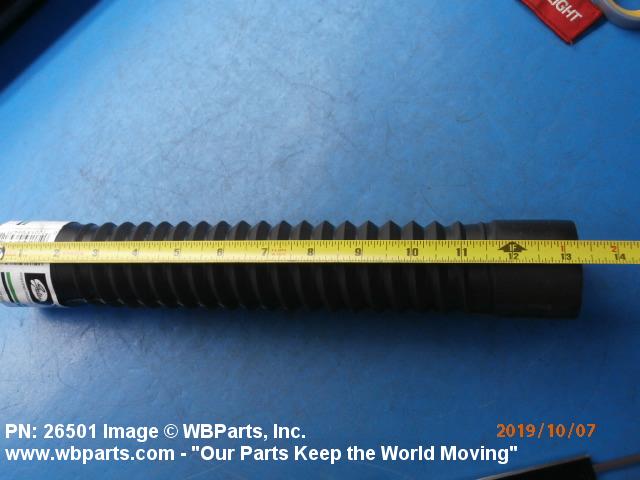

| EFFECTIVE LENGTH | 13.000 INCHES NOMINAL |
| PLAIN END LENGTH | 2.000 INCHES NOMINAL |
| ENLARGED END | NOT PROVIDED |

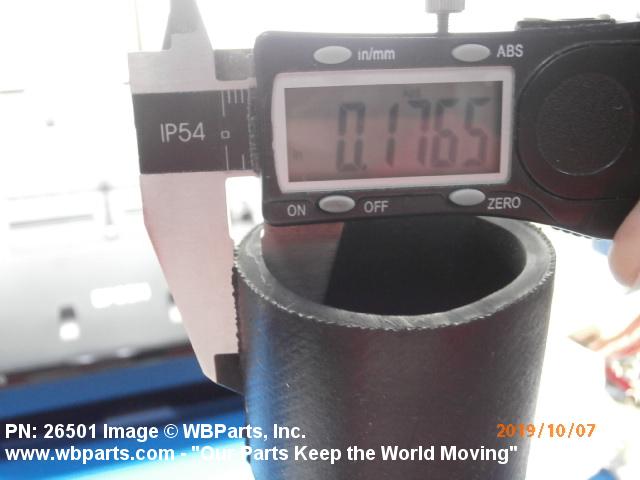

| WALL THICKNESS | 0.150 INCHES NOMINAL |

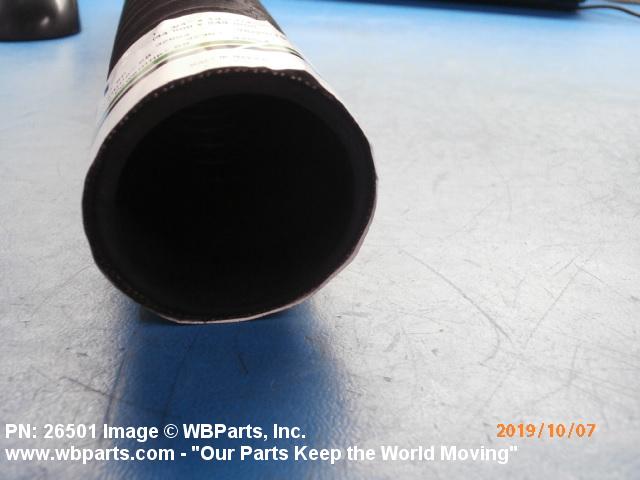

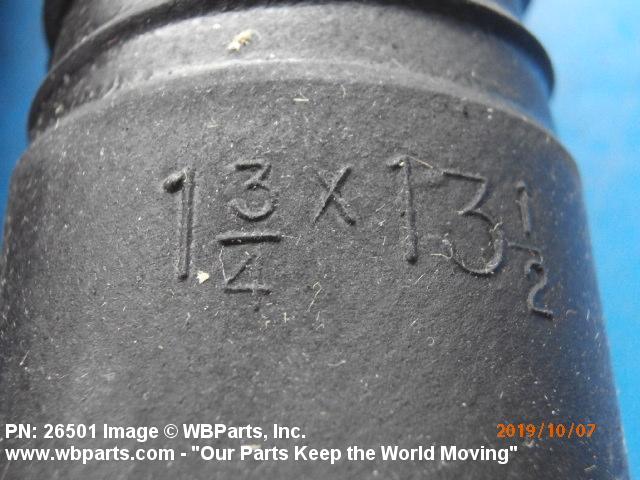

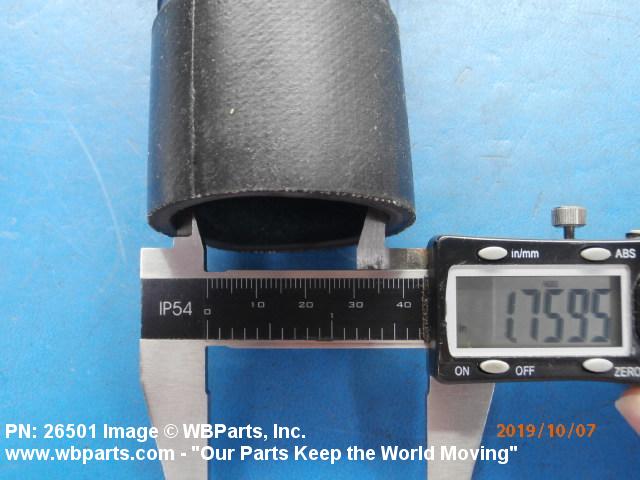

| HOSE INSIDE DIAMETER | 1.750 INCHES NOMINAL |
| PROTECTIVE CAP | NOT INCLUDED |
| SPECIAL FEATURES | FURNISHED W/ HELICAL SPRING WIRE INSERT FOR INTERNAL SUPPORT |
Restrictions/Controls & Freight Information | NSN 4720-00-287-8620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-287-8620
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
