Product Details | NONMETALLIC HOSE
4720-00-540-1962 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M1LH5593S1ZE4, M55934, M5593-4, AN627040021, AN6270-40-021, AN62704D0075, AN6270-4D0075, AN62704D0140, AN6270-4D0140, MILH5593, MIL-H-5593, MILH5593 .250ID, MILH5593250ID, MILH55934, MILH5593-4, 84085600, 840856-00, 10111158 , 157E242201, 157E24-2201 , 1934, 193-4, 3064, 306-4, 33H12760, 33H127-60, 3H2L410, 3H2L4-10, 3H2L412, 3H2L4-12, 3H2L415, 3H2L4-15, 3H2L418, 3H2L4-18, 3H2L421, 3H2L4-21, 3H2L424, 3H2L4-24, 3H2L430, 3H2L4-30, 3H55934, 3H5593-4, 4720-00-540-1962, 00-540-1962, 4720005401962 , 005401962
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-1962 | 22670 ( HOSE, NONMETALLIC ) |

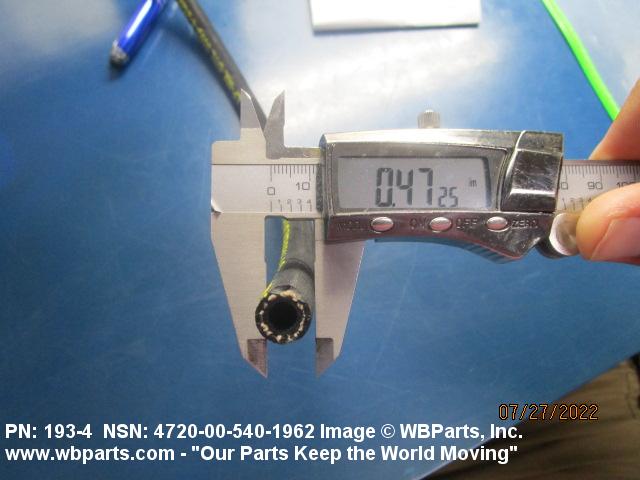

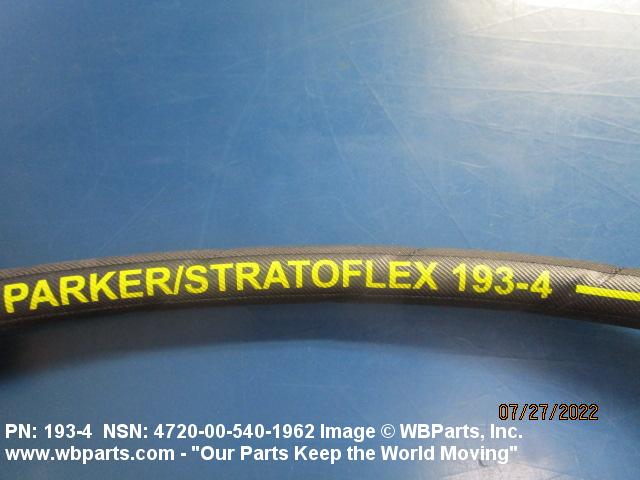

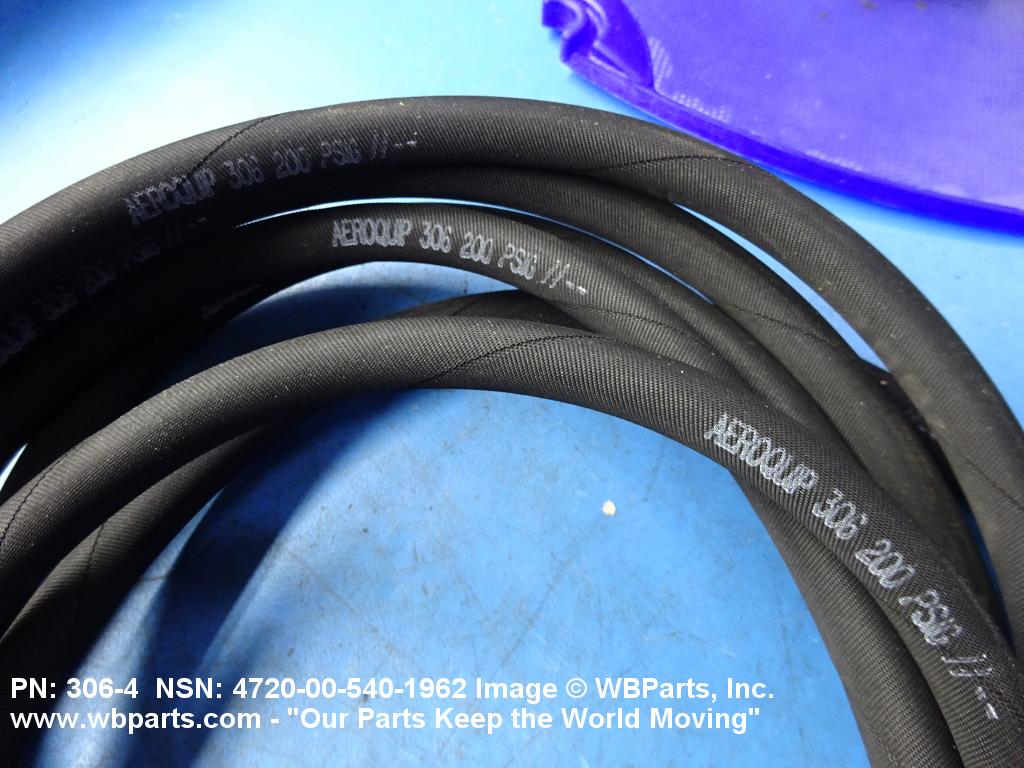

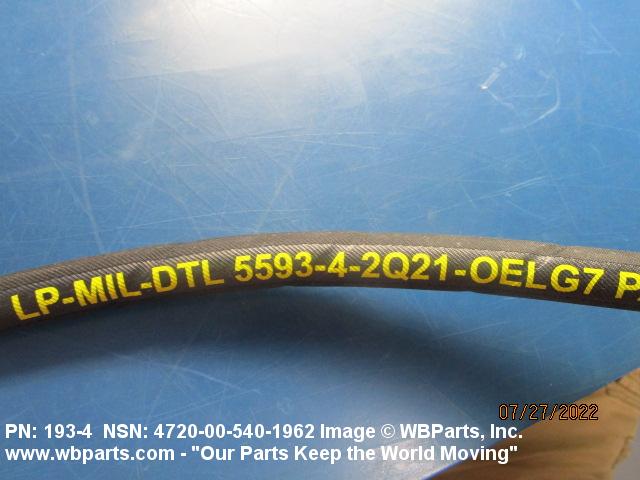

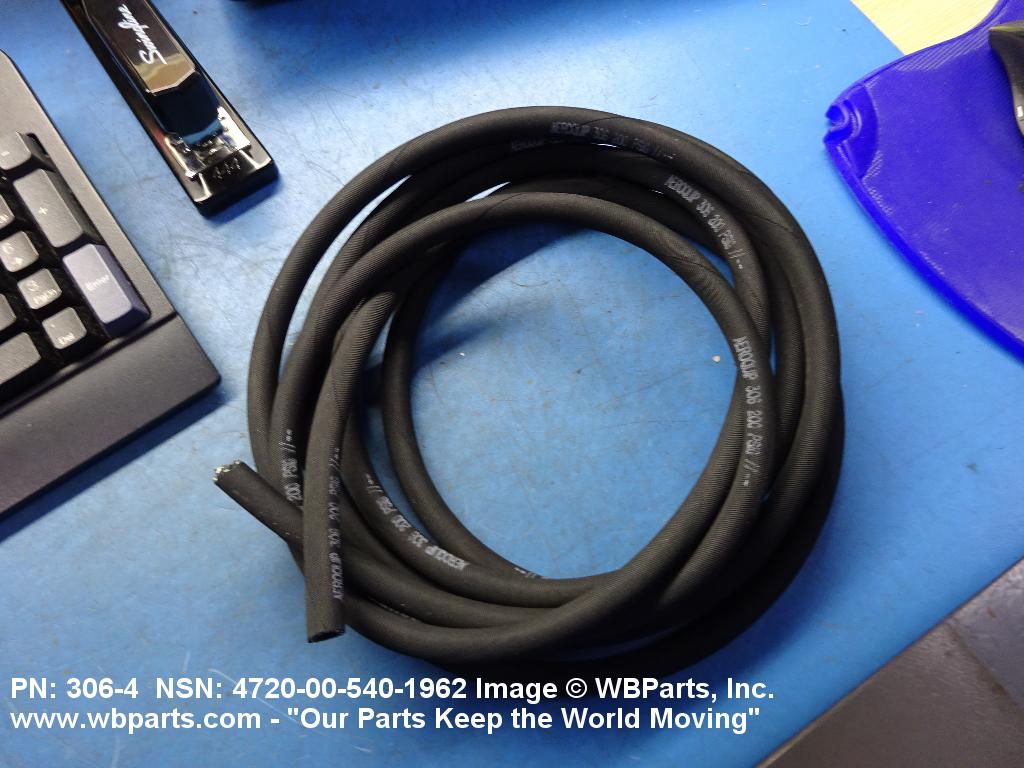

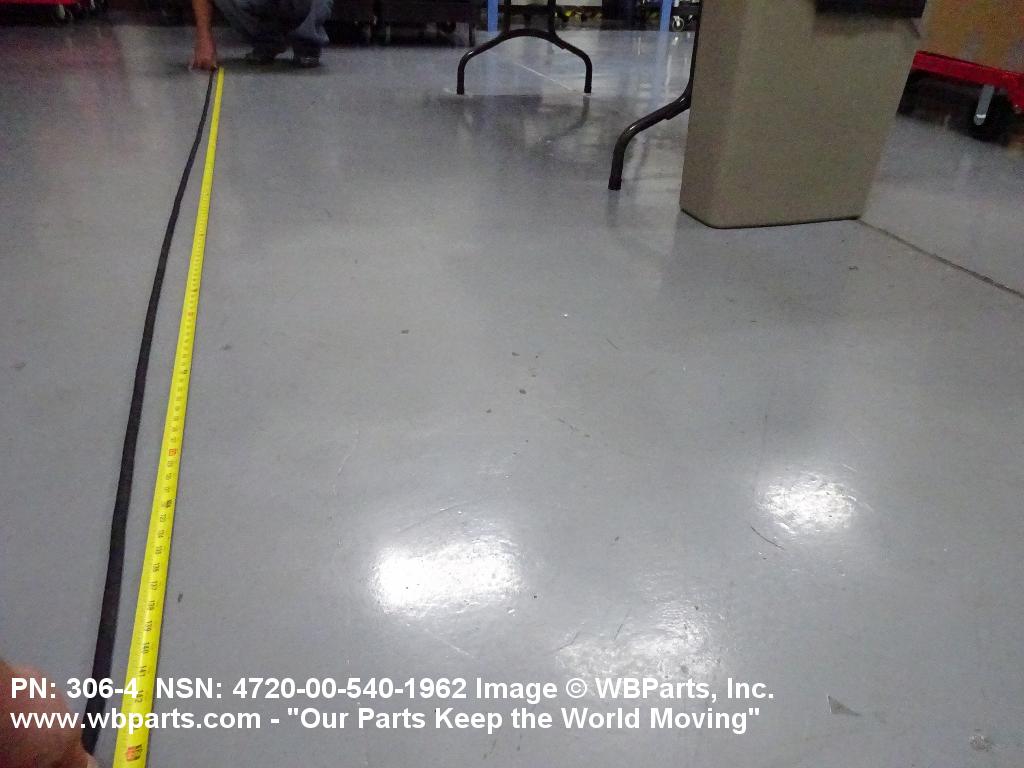

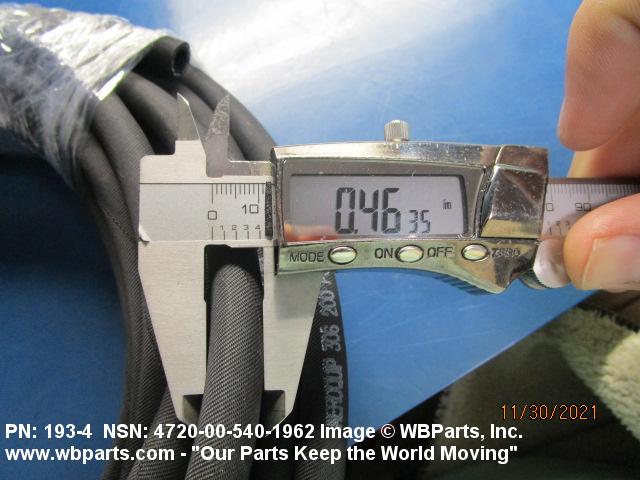

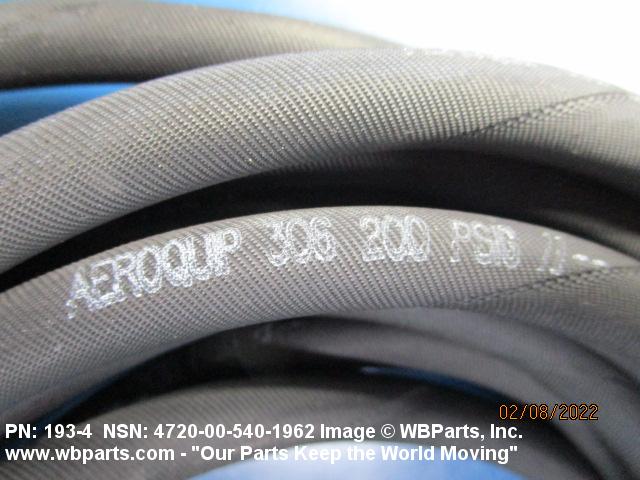

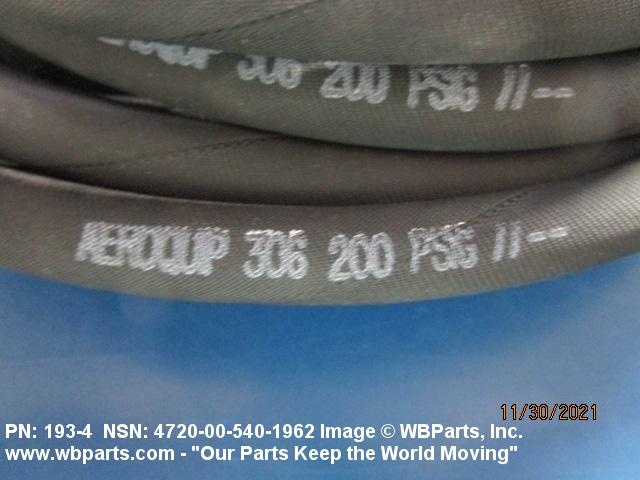

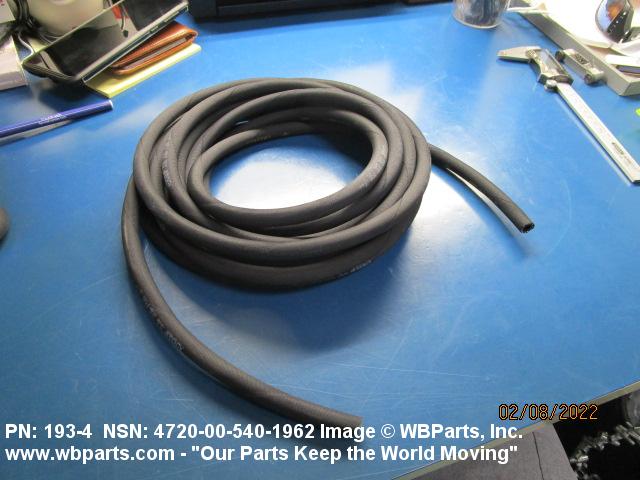

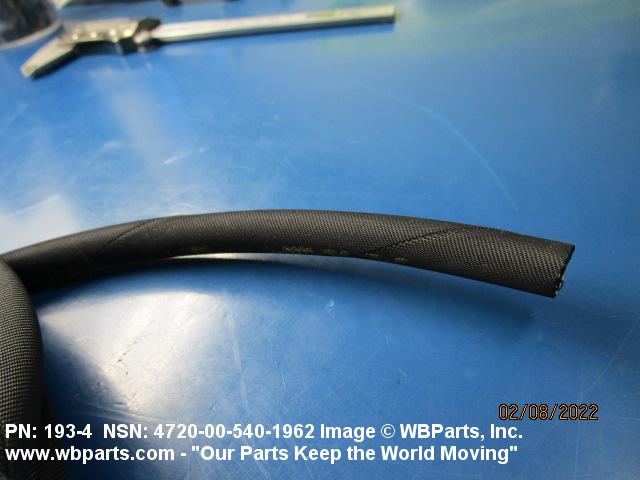

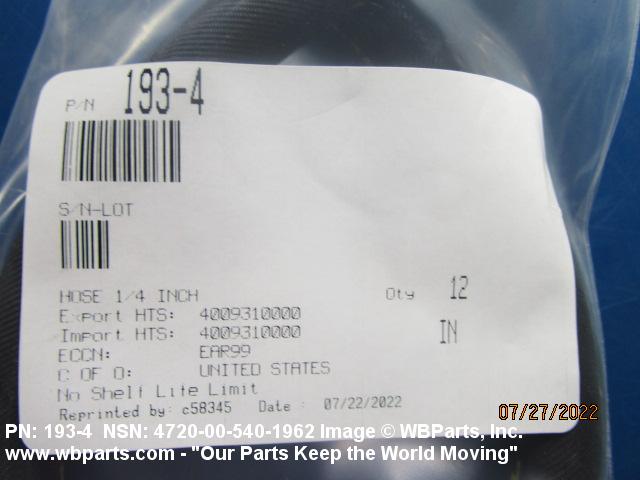

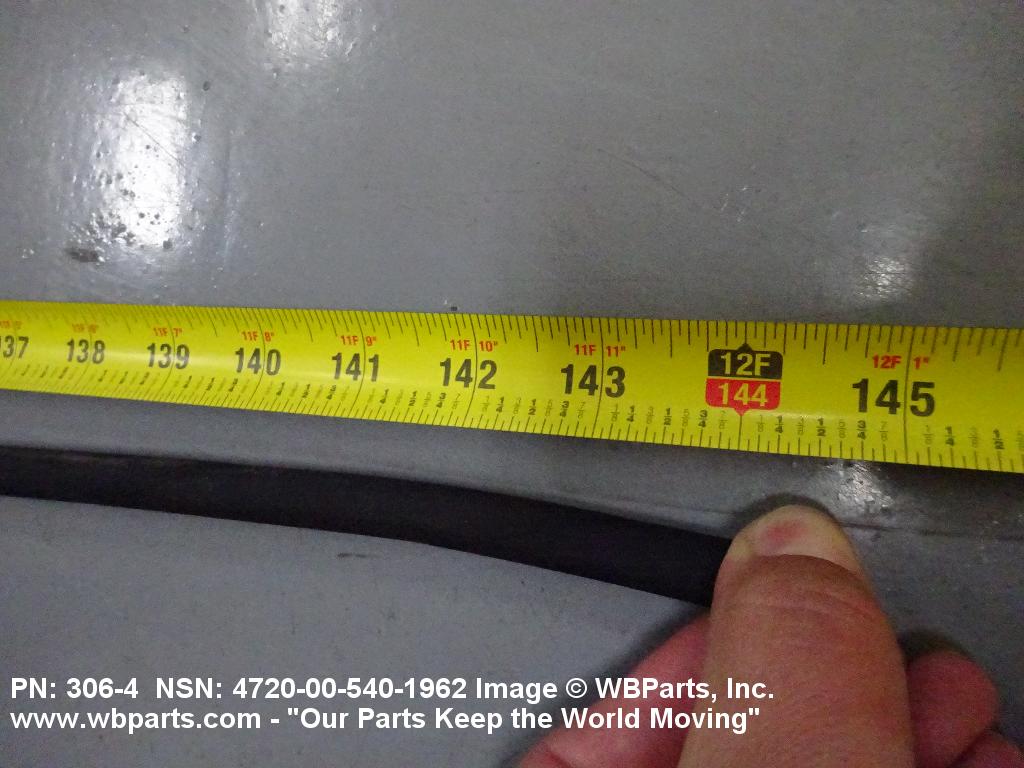

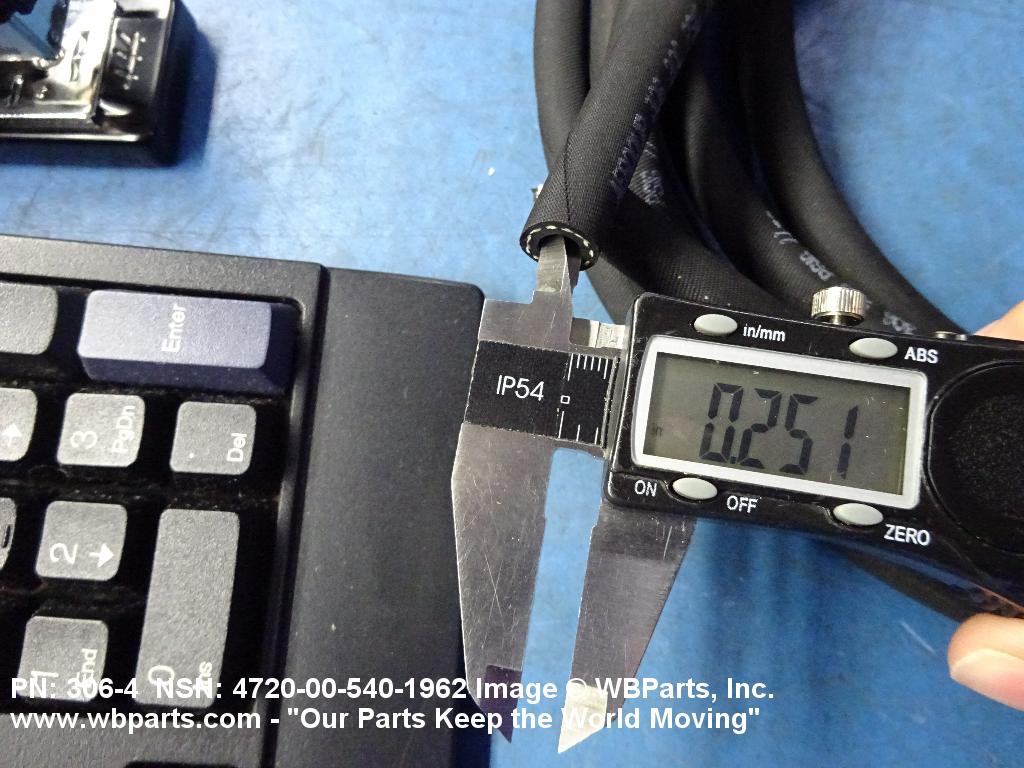

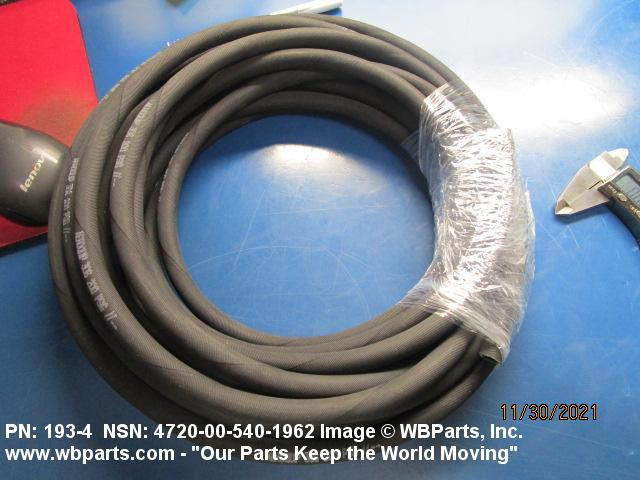

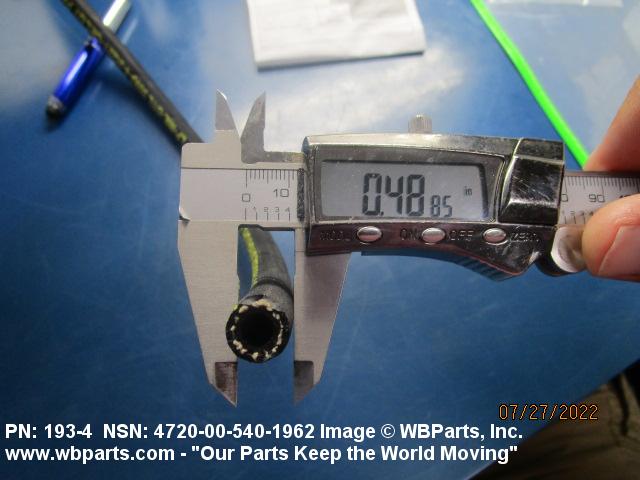

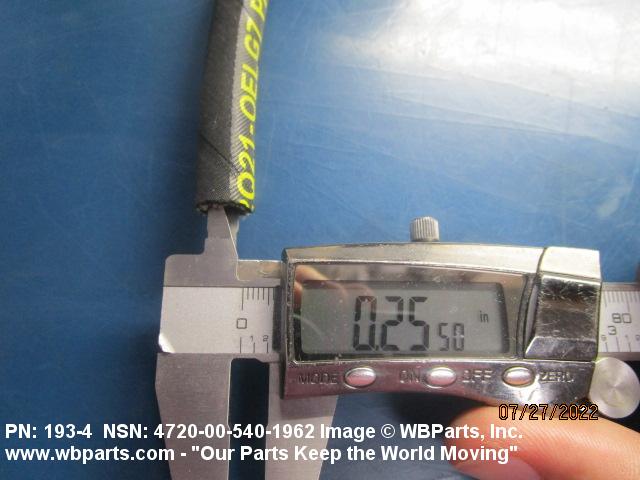

Drawings & Photos | NSN 4720-00-540-1962
Demand History | NSN 4720-00-540-1962
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-540-1962 | 2024-04-02 | 75 | us |
| 4720-00-540-1962 | 2024-03-28 | 5287 | DIBBS |
| 4720-00-540-1962 | 2024-03-14 | 30 | United States |
| 4720-00-540-1962 | 2024-02-04 | 35961 | DIBBS |
| 4720-00-540-1962 | 2024-01-21 | 21988 | DIBBS |
| 4720-00-540-1962 | 2023-12-26 | 21366 | DIBBS |
| 4720-00-540-1962 | 2023-12-14 | 21366 | DIBBS |
| 4720-00-540-1962 | 2023-11-12 | 7724 | DIBBS |
| 4720-00-540-1962 | 2023-10-17 | 9760 | DIBBS |
| 4720-00-540-1962 | 2023-10-01 | 9760 | DIBBS |
| 4720-00-540-1962 | 2023-07-25 | 1 | US |
| 4720-00-540-1962 | 2023-07-25 | 10 | US |
| 4720-00-540-1962 | 2023-05-11 | 8152 | DIBBS |
| M55934 | 2023-02-15 | 597 | United States |
| 4720-00-540-1962 | 2023-02-14 | 8915 | DIBBS |
| 4720-00-540-1962 | 2022-03-04 | 1 | US |
| 1934 | 2022-02-22 | 1 | United States |
| 1934 | 2022-02-22 | 1 | United States |
| AN62704D0140 | 2022-01-19 | 15 | Malaysia |
| AN62704D0140 | 2022-01-19 | 15 | Malaysia |
| 4720-00-540-1962 | 2021-12-22 | 30 | United States |
| 1934 | 2021-12-16 | 30 | United States |
| 4720-00-540-1962 | 2020-03-03 | 10 | Singapore |
| 4720-00-540-1962 | 2020-02-27 | 10 | Singapore |
| M55934 | 2018-12-13 | 960 | US |
| 4720-00-540-1962 | 2018-12-03 | 13823 | US |
| 4720-00-540-1962 | 2018-12-02 | 46000 | DIBBS |
| 4720-00-540-1962 | 2018-11-26 | 13823 | DIBBS |
| 4720-00-540-1962 | 2018-11-07 | 5102 | DIBBS |
| 3064 | 2018-10-19 | 3292 | South Africa |
| 4720-00-540-1962 | 2018-10-14 | 10250 | DIBBS |
| 4720-00-540-1962 | 2018-10-04 | 5500 | DIBBS |
| 4720-00-540-1962 | 2018-05-21 | 11200 | DIBBS |
| 4720-00-540-1962 | 2018-05-09 | 11200 | DIBBS |
| 157E242201 | 2018-05-01 | 1710 | Saudi Arabia |
| 4720-00-540-1962 | 2018-03-11 | 5500 | DIBBS |
| 4720-00-540-1962 | 2017-11-30 | 6328 | DIBBS |
| 1934 | 2017-09-14 | 130 | US |
| M55934 | 2017-01-23 | 3 | AE |
| 4720-00-540-1962 | 2017-01-19 | 14655 | DIBBS |
| 4720-00-540-1962 | 2016-09-16 | 1 | DIBBS-RFPs |
| 4720-00-540-1962 | 2016-09-09 | 27000 | DIBBS |
| 4720-00-540-1962 | 2016-08-29 | 27000 | DIBBS |
| M55934 | 2016-08-10 | 50 | United States |
| M55934 | 2016-08-10 | 50 | United States |
| 4720-00-540-1962 | 2016-03-31 | 8854 | DIBBS |
| 4720-00-540-1962 | 2016-03-20 | 1937 | DIBBS |
| 4720-00-540-1962 | 2016-02-03 | 6643 | DIBBS |
| 4720-00-540-1962 | 2015-11-26 | 500 | DIBBS |
| 4720-00-540-1962 | 2015-10-20 | 275 | DIBBS |
| 4720-00-540-1962 | 2015-09-23 | 4360 | DIBBS |
| M55934 | 2015-09-22 | 65 | United States |
| 4720-00-540-1962 | 2015-09-02 | 4189 | DIBBS |
| 4720-00-540-1962 | 2015-06-29 | 4827 | DIBBS |
| 4720-00-540-1962 | 2015-03-17 | 3254 | DIBBS |
| 4720-00-540-1962 | 2015-02-05 | 7058 | DIBBS |
| 4720-00-540-1962 | 2014-12-12 | 9657 | DIBBS |
| 4720-00-540-1962 | 2014-10-22 | 5000 | United States |
| 4720-00-540-1962 | 2014-08-25 | 3573 | DIBBS |
| 4720-00-540-1962 | 2014-05-01 | 13937 | DIBBS |
| 4720-00-540-1962 | 2014-04-17 | 600 | DIBBS |
| 4720-00-540-1962 | 2014-04-03 | 6061 | DIBBS |
| 4720-00-540-1962 | 2013-10-31 | 28183 | DIBBS |
| 4720-00-540-1962 | 2013-04-29 | 500 | JO |
| M55934 | 2013-04-22 | 65 | United States |
| 4720-00-540-1962 | 2012-05-15 | 61837 | DIBBS |
| 4720-00-540-1962 | 2012-04-24 | 2546 | DIBBS |
| 4720-00-540-1962 | 2012-03-29 | 4883 | DIBBS |
| 4720-00-540-1962 | 2012-02-15 | 2274 | DIBBS |
| 4720-00-540-1962 | 2012-01-23 | 3814 | DIBBS |
| 4720-00-540-1962 | 2012-01-06 | 3025 | DIBBS |
| 4720-00-540-1962 | 2011-09-03 | 2421 | DIBBS |
| 4720-00-540-1962 | 2011-09-02 | 4308 | DIBBS |
| 4720-00-540-1962 | 2011-08-08 | 1045 | DIBBS |
| 4720-00-540-1962 | 2011-07-30 | 8450 | DIBBS |
| 1934 | 2011-06-22 | 20 | US |
| 4720-00-540-1962 | 2011-02-10 | 9124 | DIBBS |
| 4720-00-540-1962 | 2011-02-03 | 12977 | DIBBS |
| 4720-00-540-1962 | 2011-01-21 | 9000 | DIBBS |
| 4720-00-540-1962 | 2011-01-11 | 2245 | DIBBS |
| 4720-00-540-1962 | 2010-12-21 | 3814 | DIBBS |
| 4720-00-540-1962 | 2010-12-06 | 12334 | DIBBS |
| 4720-00-540-1962 | 2010-12-06 | 7275 | DIBBS |
| MILH5593-4 | 2010-11-18 | 600 | |
| M5593-4 | 2010-10-19 | 300 | |
| M5593-4 | 2010-10-19 | 300 | |
| 4720-00-540-1962 | 2009-10-13 | 2 | Malaysia |
| MILH55934 | 2008-12-04 | 70 | US |
| 4720-00-540-1962 | 2008-07-23 | 1 | NP |
Cross Reference | NSN 4720-00-540-1962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 157E24-2201 | 75377 | KURZ & ROOT GENERATOR COMPANY LLC |
| 157E24-2201 | U9259 | FEL AVIONICS LIMITED |
| 193-4 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 306-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 33H127-60 | 22852 | SPALLA INC |
| 3H2L4-10 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H2L4-12 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H2L4-15 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H2L4-18 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H2L4-21 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H2L4-24 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H2L4-30 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 3H5593-4 | 14728 | PRECISION FORM RIVET INC |
| 4720005401962 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 840856-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN6270-40-021 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6270-4D0075 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN6270-4D0140 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| M1LH5593S1ZE4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M5593-4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-5593 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILH5593 .250ID | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILH5593-4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4720-00-540-1962
Related Products | NSN 4720-00-540-1962
4720-00-540-1963, 4720-00-540-1974, 4720-00-540-1979, 4720-00-540-1985, 4720-00-540-1990
Technical Data | NSN 4720-00-540-1962
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED COTTON CORD OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | ABRASION RESISTANT AND HYDRAULIC FLUID RESISTANT AND OIL RESISTANT |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

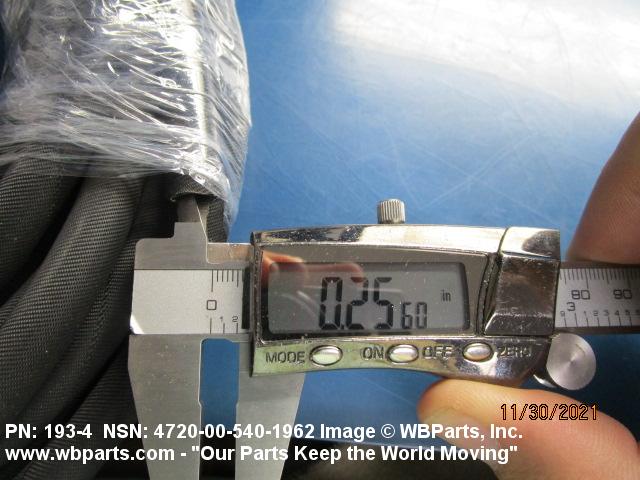

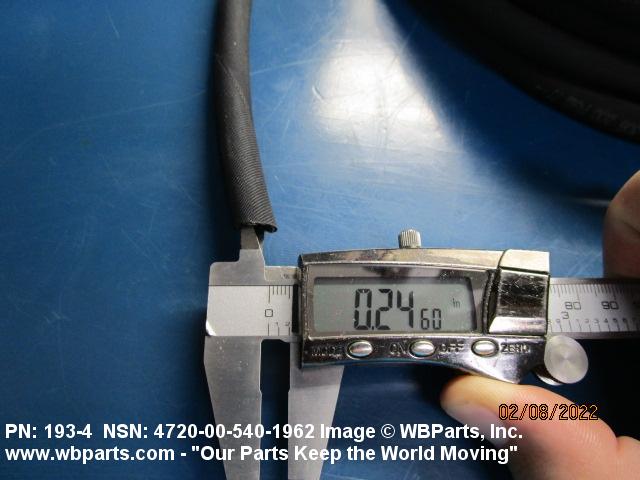

| INSIDE DIAMETER | 0.250 INCHES NOMINAL |

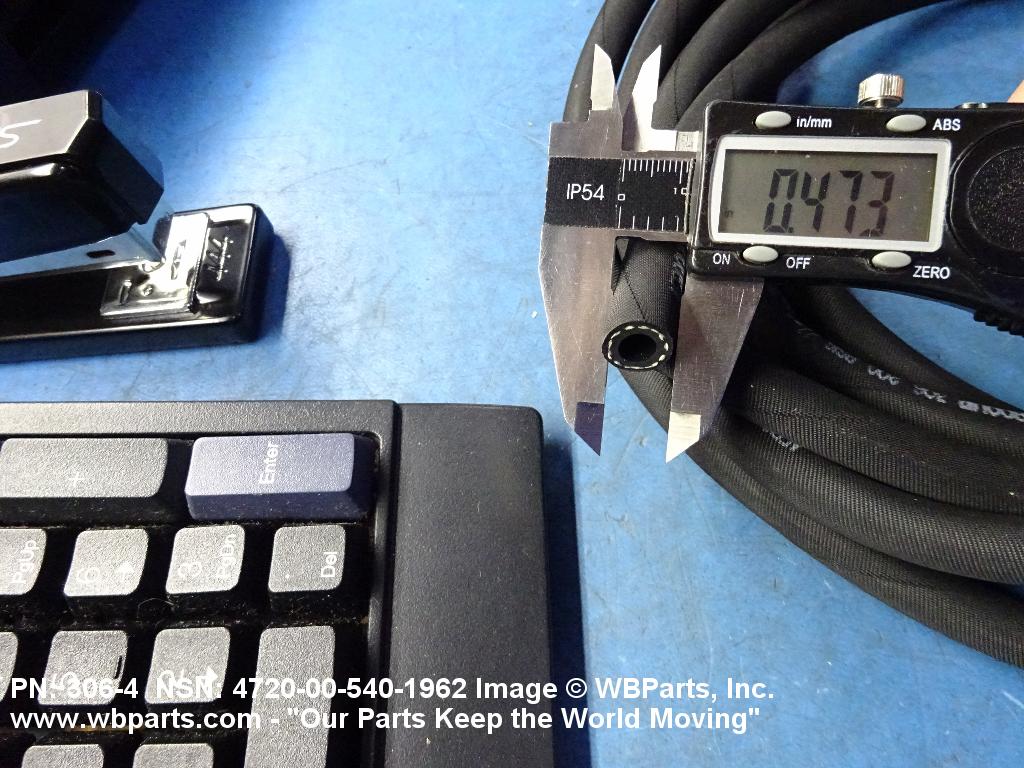

| OUTSIDE DIAMETER | 0.469 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 4.000 INCHES |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 160.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 400.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 1250.0 POUNDS PER SQUARE INCH |
| VACUUM IN TORR | 254.0 |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-5593 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 4 SIZE |
| III END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-5593 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M5593-4 |
Restrictions/Controls & Freight Information | NSN 4720-00-540-1962
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 195040 | WASTE:HOSE FABRIC RUBR COMB |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-540-1962
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months | Purchasing | QTY UOM |
X FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months | Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months | Purchasing | QTY UOM |
X FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months | Purchasing | QTY UOM |
X FT : Foot |
