Product Details | TUBE ELBOW
4730-00-008-9848 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AC1040C16, BACE21BW16J, H10021A16, H10021A-16, LD8307516, LD83075-16, D1002116, D10021-16, D10021A16, D10021-A16, D10021A-16, 4730-00-008-9848, 00-008-9848, 4730000089848, 000089848
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JUL 1972 | 00-008-9848 | 03771 ( ELBOW, TUBE ) |

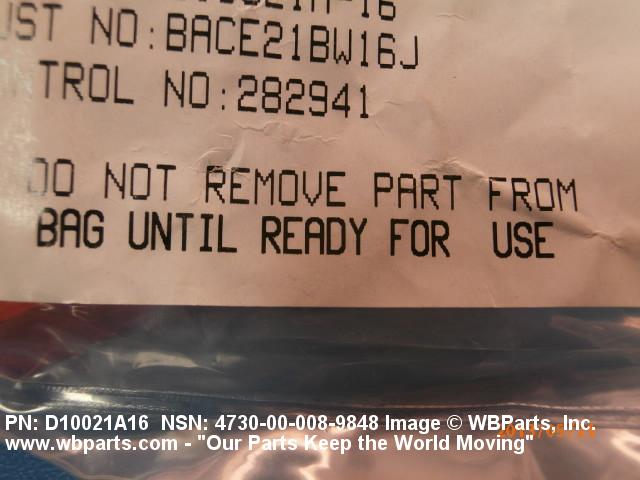

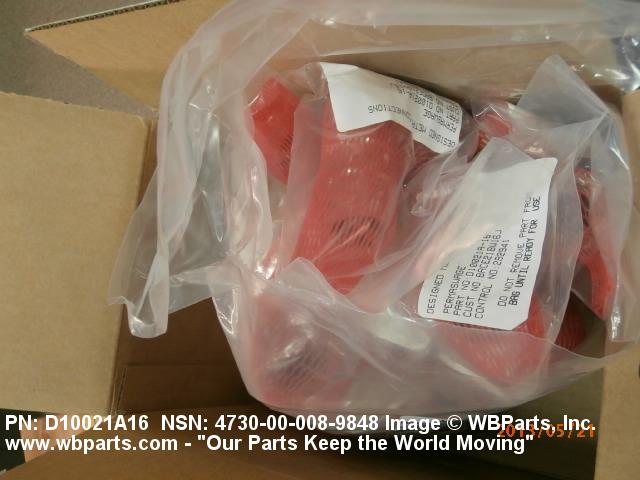

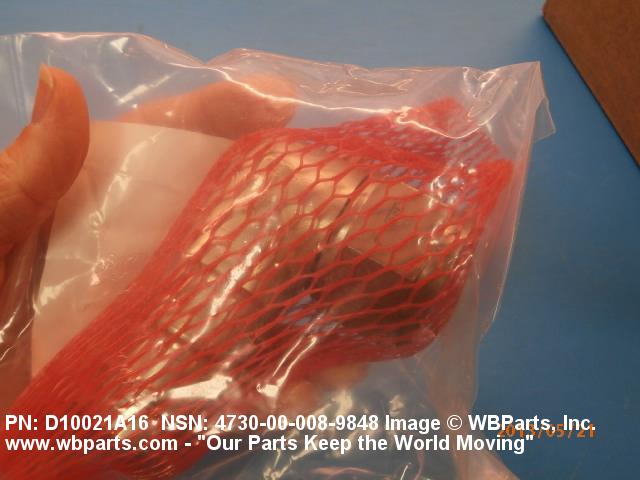

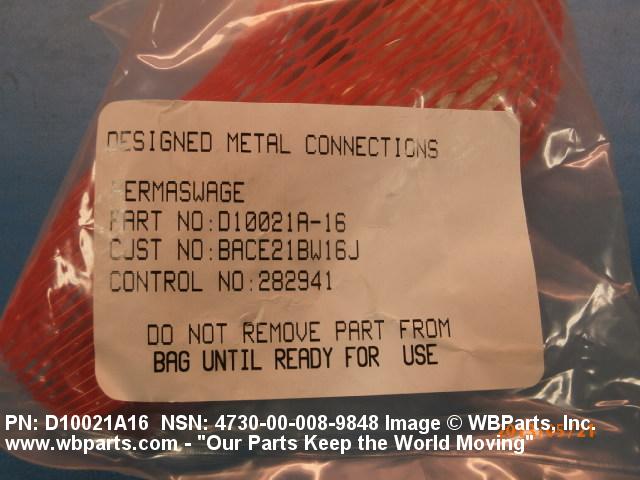

Drawings & Photos | NSN 4730-00-008-9848
Demand History | NSN 4730-00-008-9848
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D10021A16 | 2023-09-25 | 10 | US |
| BACE21BW16J | 2022-11-13 | 94 | DIBBS |
| D10021A-16 | 2022-11-13 | 94 | DIBBS |
| BACE21BW16J | 2020-05-18 | 48 | DIBBS |
| D10021A-16 | 2020-05-18 | 48 | DIBBS |
| BACE21BW16J | 2020-05-03 | 48 | DIBBS |
| D10021A-16 | 2020-05-03 | 48 | DIBBS |
| BACE21BW16J | 2020-03-26 | 55 | DIBBS |
| D10021A-16 | 2020-03-26 | 55 | DIBBS |
| BACE21BW16J | 2020-01-09 | 16 | DIBBS |
| D10021A-16 | 2020-01-09 | 16 | DIBBS |
| BACE21BW16J | 2019-12-01 | 46 | DIBBS |
| D10021A-16 | 2019-12-01 | 46 | DIBBS |
| BACE21BW16J | 2019-08-22 | 56 | DIBBS |
| D10021A-16 | 2019-08-22 | 56 | DIBBS |
| BACE21BW16J | 2019-07-22 | 71 | DIBBS |
| D10021A-16 | 2019-07-22 | 71 | DIBBS |
| BACE21BW16J | 2019-06-02 | 50 | DIBBS |
| D10021A-16 | 2019-06-02 | 50 | DIBBS |
| 4730-00-008-9848 | 2018-08-26 | 92 | DIBBS |
| 4730-00-008-9848 | 2017-10-09 | 130 | DIBBS |
| 4730-00-008-9848 | 2017-03-30 | 119 | DIBBS |
| 4730-00-008-9848 | 2017-03-02 | 111 | DIBBS |
| 4730-00-008-9848 | 2016-12-29 | 122 | DIBBS |
| 4730-00-008-9848 | 2016-07-07 | 118 | DIBBS |
| 4730-00-008-9848 | 2016-03-29 | 114 | DIBBS |
| 4730-00-008-9848 | 2016-01-21 | 114 | DIBBS |
| 4730-00-008-9848 | 2016-01-10 | 114 | DIBBS |
| 4730-00-008-9848 | 2015-11-11 | 62 | DIBBS |
| 4730-00-008-9848 | 2015-03-08 | 99 | DIBBS |
| 4730-00-008-9848 | 2014-08-01 | 63 | DIBBS |
| 4730-00-008-9848 | 2014-07-21 | 63 | DIBBS |
| 4730-00-008-9848 | 2014-07-20 | 63 | DIBBS |
| 4730-00-008-9848 | 2013-05-15 | 20 | United States |
| 4730-00-008-9848 | 2013-05-06 | 20 | United States |
| D10021A16 | 2013-03-06 | 4 | Canada |
Cross Reference | NSN 4730-00-008-9848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AC1040C16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| BACE21BW16J | 81205 | THE BOEING COMPANY DBA BOEING |
| D10021-16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| D10021-16 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| D10021-A16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| D10021A-16 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| H10021A-16 | 08199 | EATON AEROSPACE |
| LD83075-16 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-008-9848
Related Products | NSN 4730-00-008-9848
4730-00-008-9849, 4730-00-008-9850, 4730-00-008-9851, 4730-00-008-9852, 4730-00-008-9853
Technical Data | NSN 4730-00-008-9848
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5656,TY 21-6-9 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END |
| CONNECTION STYLE | B12 SWIVEL NUT, FLARELESS 1ST END B48 SWAGED W/GROOVES 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ 1ST END |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3B 1ST END |
| LEG LENGTH | 2.101 INCHES NOMINAL 1ST END 2.750 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIAL FEATURES | THE INTERNAL SURFACE OF THE PERMASWAGE END,WILL BE POLYTETRAFLOROETHYLENE COATED PER DEUTSCH CO,SPEC NO. DMCPS1009 TO 0.325 IN. MIN 0.350 IN. MAX,INTO THE FITTING BORE |
Restrictions/Controls & Freight Information | NSN 4730-00-008-9848
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
