Product Details | BLIND PIPE FLANGE
4730-00-202-6447 An item used for covering or closing the end of a flanged pipe fitting. The face may be drilled for connecting bolts or studs. Excludes FLANGE, PIPE.
Part Alternates: MS90520A38G, B16.1, WWF406, WW-F-406 ACB38, WWF406ACB38, B161, 4730-00-202-6447, 00-202-6447, 4730002026447, 002026447
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-202-6447 | 03793 ( FLANGE, PIPE, BLIND ) |
Drawings & Photos | NSN 4730-00-202-6447
Cross Reference | NSN 4730-00-202-6447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B16.1 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| MS90520A38G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WW-F-406 ACB38 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| WWF406 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-202-6447
Related Products | NSN 4730-00-202-6447
4730-00-202-6457, 4730-00-202-6459, 4730-00-202-6460, 4730-00-202-6489, 4730-00-202-6490
Technical Data | NSN 4730-00-202-6447
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 14.250 INCHES NOMINAL |
| FLANGE DIAMETER | 16.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 1.000 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 12 |

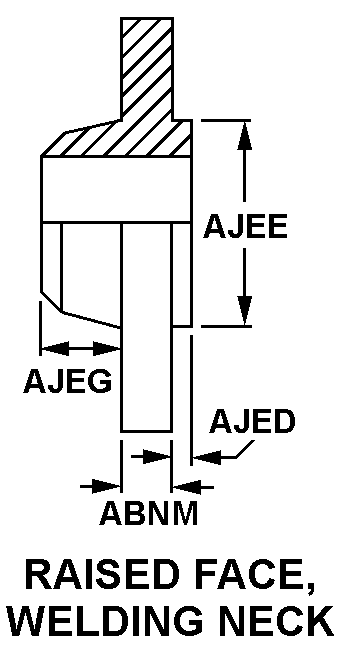

| FLANGE SECTION STYLE | 2 RAISED FACE, WELDING NECK |
| THICKNESS | 1.188 INCHES NOMINAL |
| RAISED FACE HEIGHT | ANY ACCEPTABLE |
| RAISED FACE DIAMETER | ANY ACCEPTABLE |
| NECK HEIGHT | ANY ACCEPTABLE |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 10.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 175.0 POUNDS PER SQUARE INCH AIR AND 125.0 POUNDS PER SQUARE INCH STEAM AND 175.0 POUNDS PER SQUARE INCH GAS AND 175.0 POUNDS PER SQUARE INCH OIL AND 175.0 POUNDS PER SQUARE INCH WATER |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 150.0 DEG FAHRENHEIT AIR AND 150.0 DEG FAHRENHEIT GAS AND 150.0 DEG FAHRENHEIT OIL AND 150.0 DEG FAHRENHEIT WATER |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIFICATION/STANDARD DATA | 80204-B16.1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 125 CLASS |
