Product Details | PIPE TO HOSE STRAIGHT ADAPTER
4730-00-222-1799 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a pipe or pipe fitting to a hose or hose fitting in a straight line.
Part Alternates: AN84020D, AN840-20D, AN84020W, AN840-20W , AS4843/2, AS48432, AS5183D2020, MILF5509, MIL-F-5509, 21370620D, 213706-20D, 4730-00-222-1799, 00-222-1799, 4730002221799, 002221799
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-222-1799 | 03775 ( ADAPTER, STRAIGHT, PIPE TO HOSE ) |

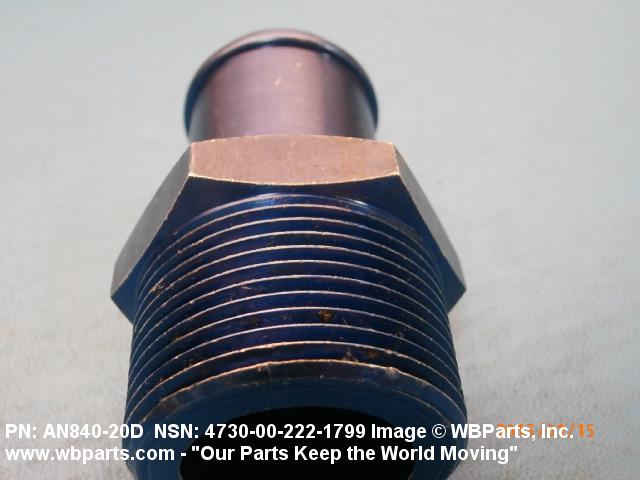

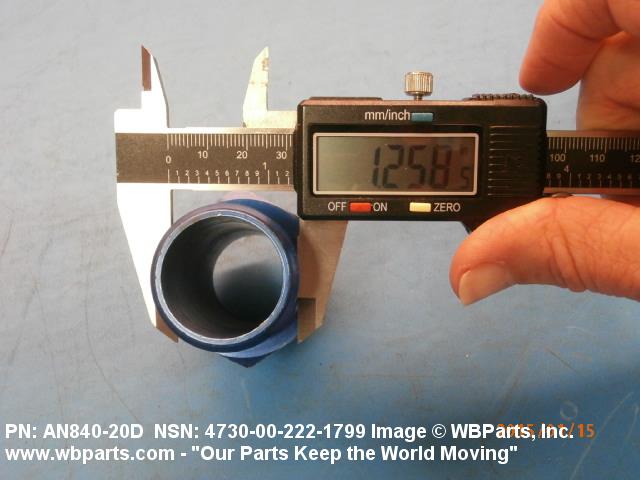

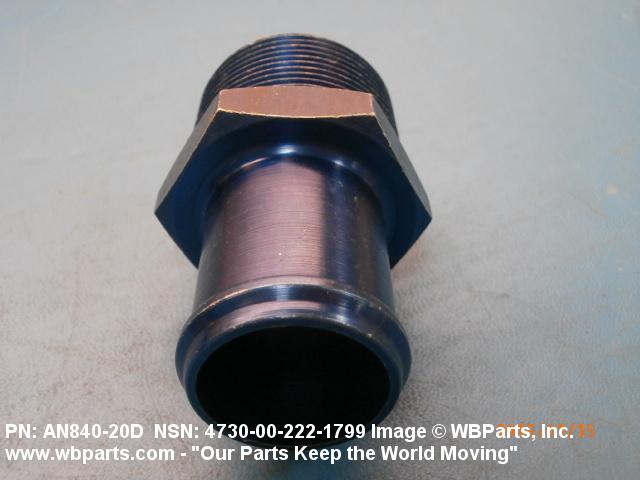

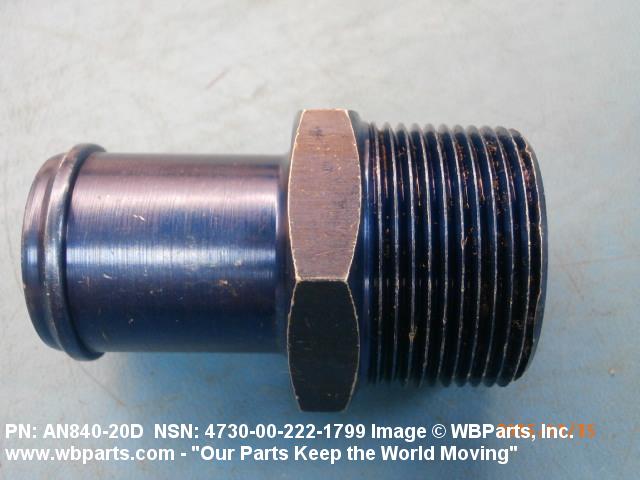

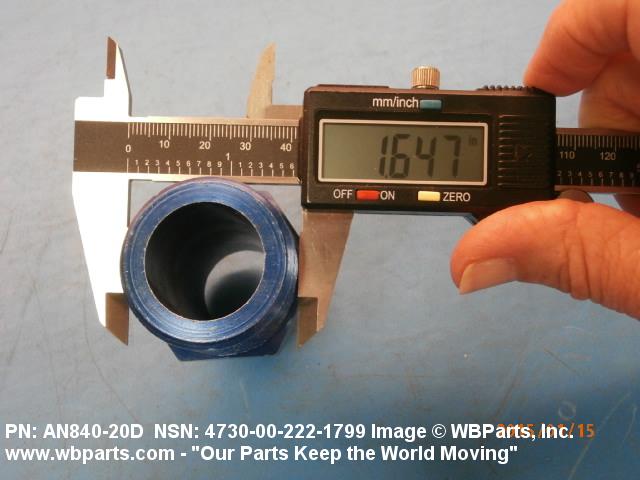

Drawings & Photos | NSN 4730-00-222-1799
Demand History | NSN 4730-00-222-1799
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILF5509 | 2018-07-20 | 6 | United States |
| 4730-00-222-1799 | 2016-11-08 | 9 | DIBBS |
| 4730-00-222-1799 | 2016-05-30 | 5 | DIBBS |
| 4730-00-222-1799 | 2016-05-09 | 5 | DIBBS |
| 4730-00-222-1799 | 2016-04-26 | 5 | DIBBS |
| 4730-00-222-1799 | 2016-02-25 | 22 | DIBBS |
| AN84020D | 2014-12-17 | 1 | Austria |
| 4730-00-222-1799 | 2012-11-19 | 2 | DIBBS |
| MILF5509 | 2009-10-28 | 1 | PK |
| MILF5509 | 2009-02-24 | 100 | US |
Cross Reference | NSN 4730-00-222-1799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213706-20D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| AN840-20D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN840-20D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN840-20D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN840-20D | 14397 | FABER ENTERPRISES, INC. |
| AN840-20D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN840-20D | 22995 | CROWN FITTING CO INC |
| AN840-20D | 30974 | AEROFIT, LLC |
| AN840-20D | 71563 | COLLINS ENGINEERING CORP |
| AN840-20D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN840-20W | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4843/2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-222-1799
Related Products | NSN 4730-00-222-1799
4730-00-222-1800, 4730-00-222-1801, 4730-00-222-1802, 4730-00-222-1803, 4730-00-222-1804
Technical Data | NSN 4730-00-222-1799
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END UNTHREADED EXTERNAL HOSE 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END B103 BEADED 2ND END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | ANPT 1ST END |
| NOMINAL THREAD SIZE | 1.250 INCHES 1ST END |
| NOMINAL OVERALL LENGTH | 2.890 INCHES |
| SPECIAL FEATURES | CTR WRENCHING FACILITY |
| SPECIFICATION/STANDARD DATA | 88044-AN840 GOVERNMENT STANDARD AND 81343-AS4843/2 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-222-1799
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-222-1799
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
