Product Details | SELF-SEALING COUPLING ASSEMBLY

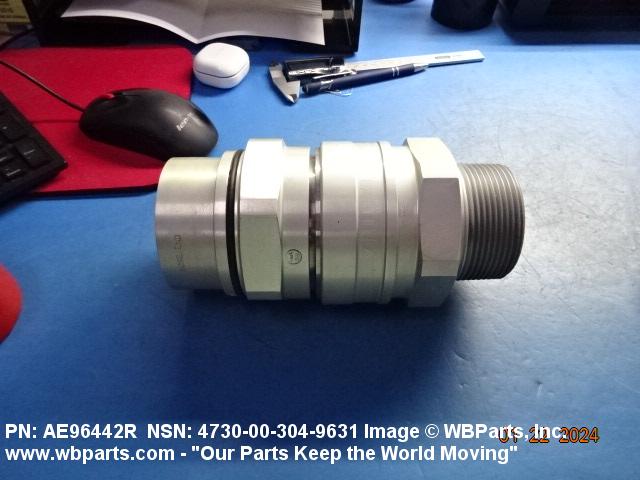

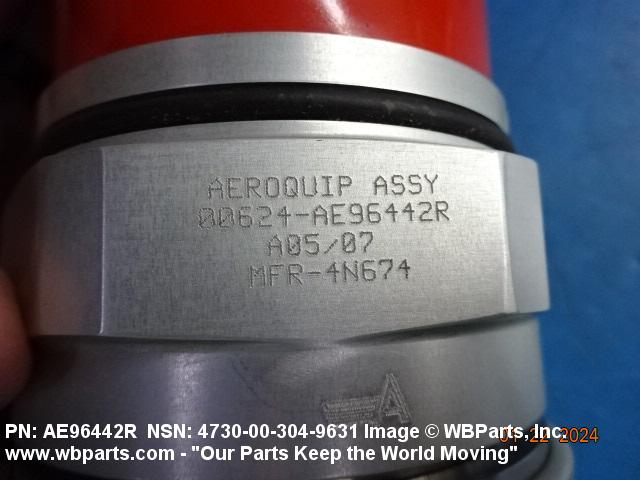

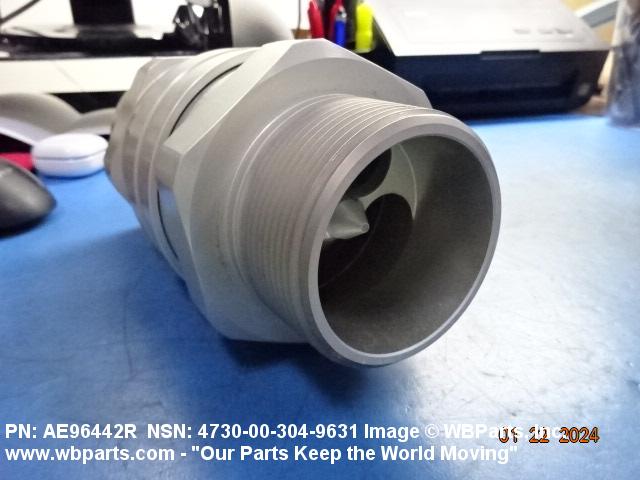

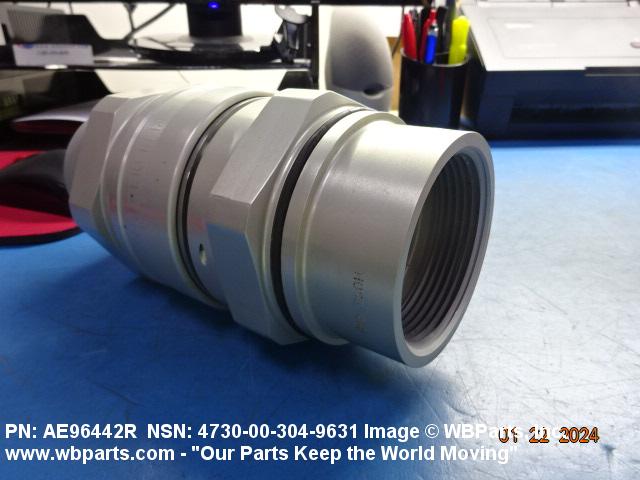

4730-00-304-9631 A multipiece fluid line fitting consisting of two COUPLING HALF, SELF-SEALING fittings.
Part Alternates: AE96442R, 4730-00-304-9631, 00-304-9631, 4730003049631, 003049631
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 OCT 1973 | 00-304-9631 | 18279 ( COUPLING ASSEMBLY, SELF-SEALING ) |

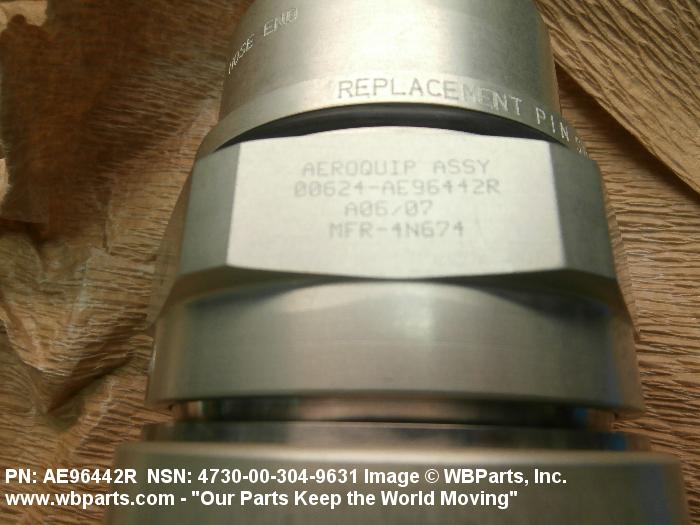

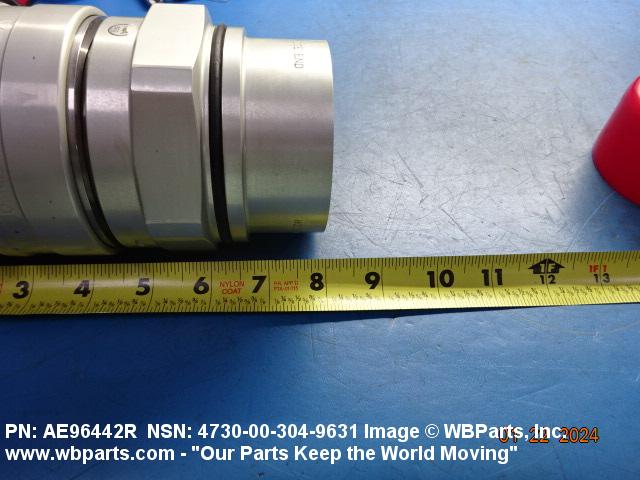

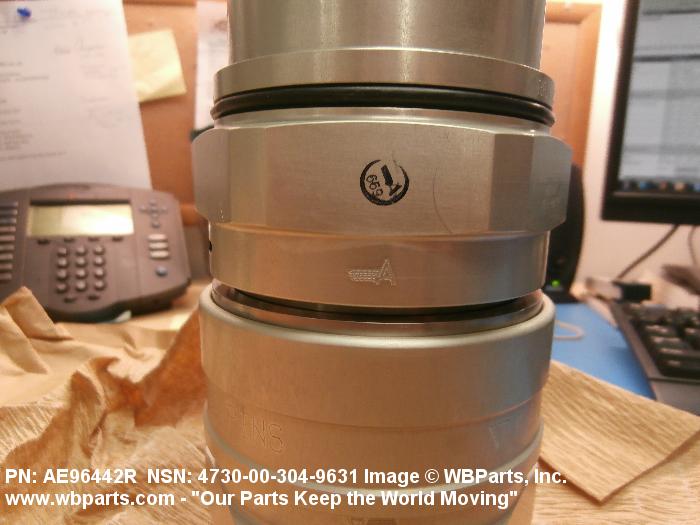

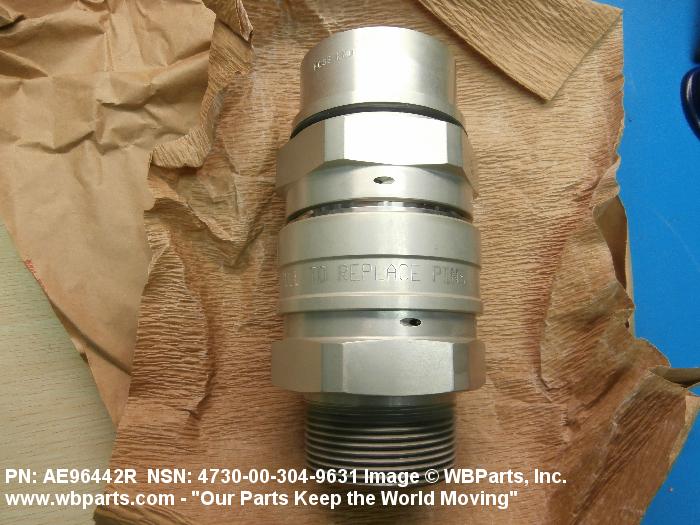

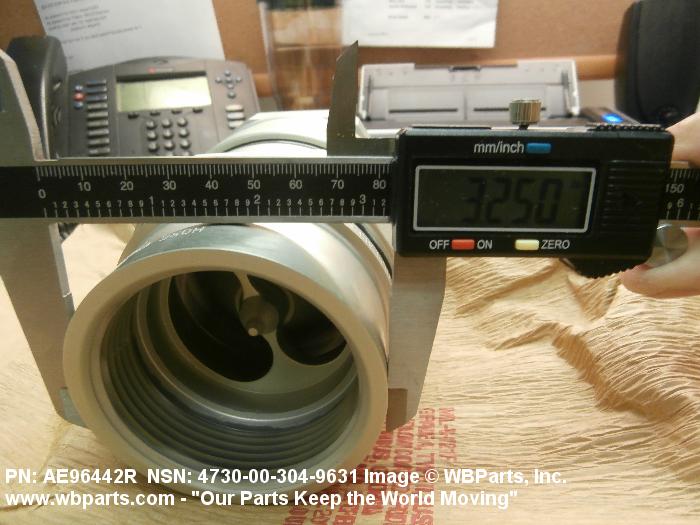

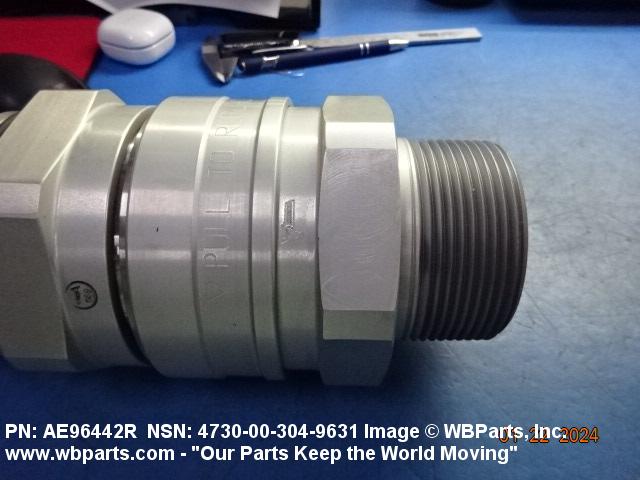

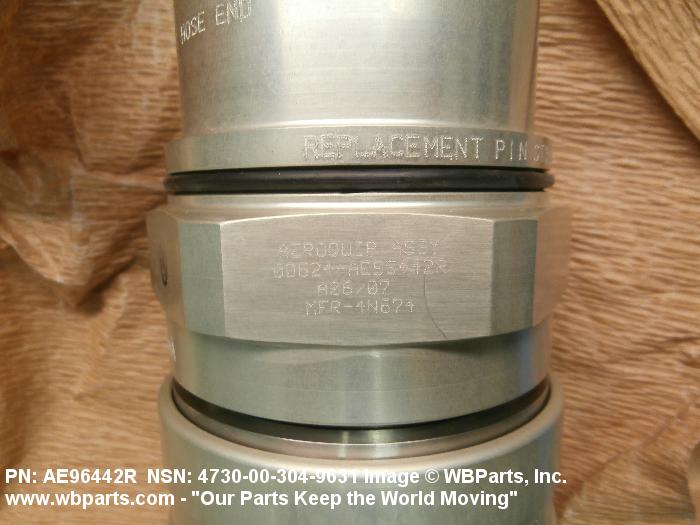

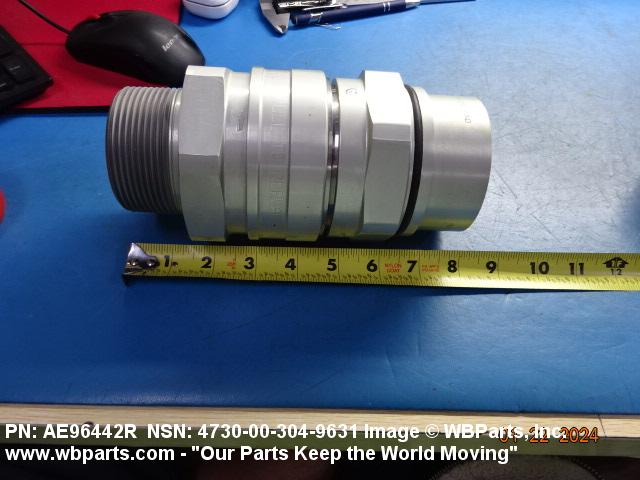

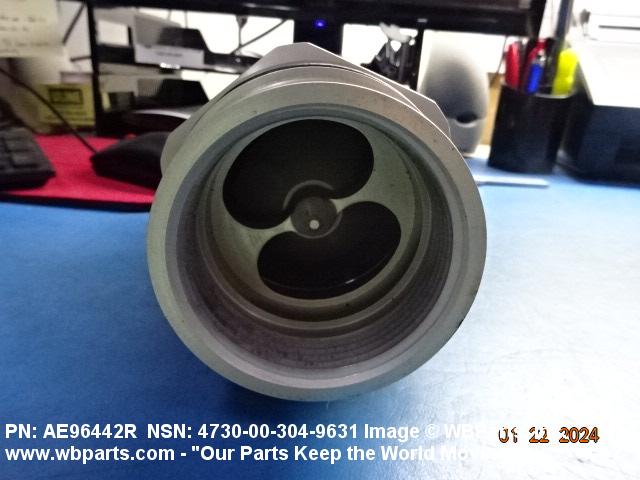

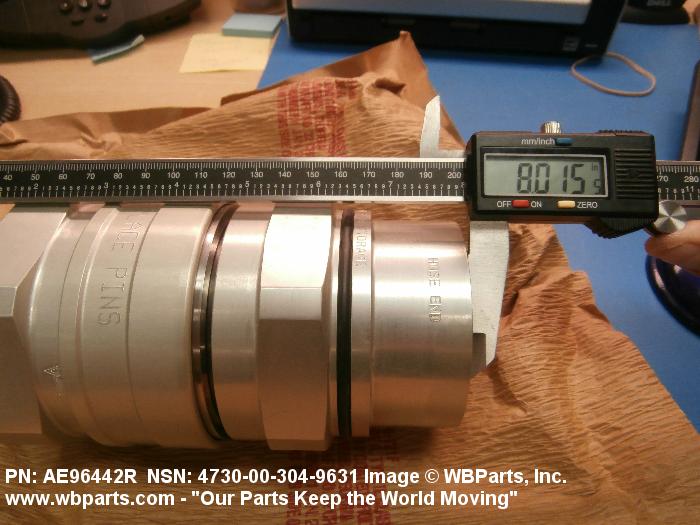

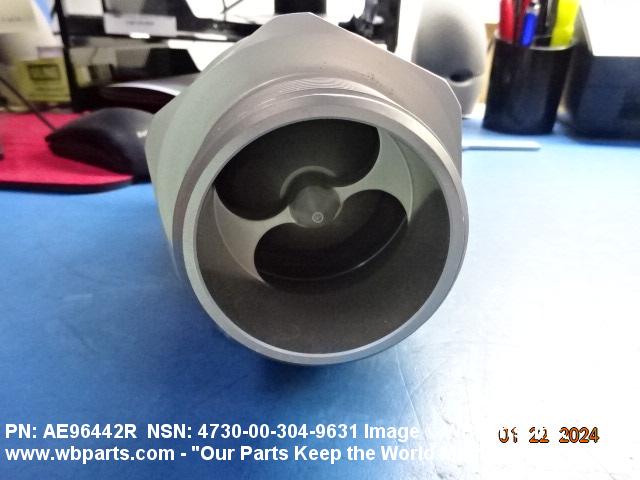

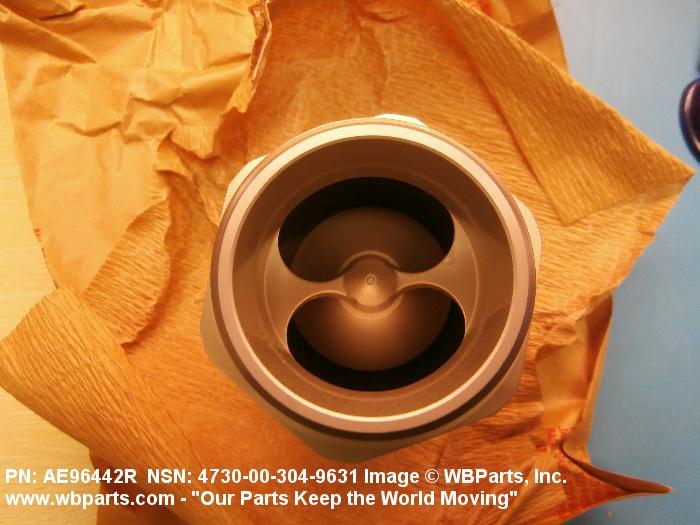

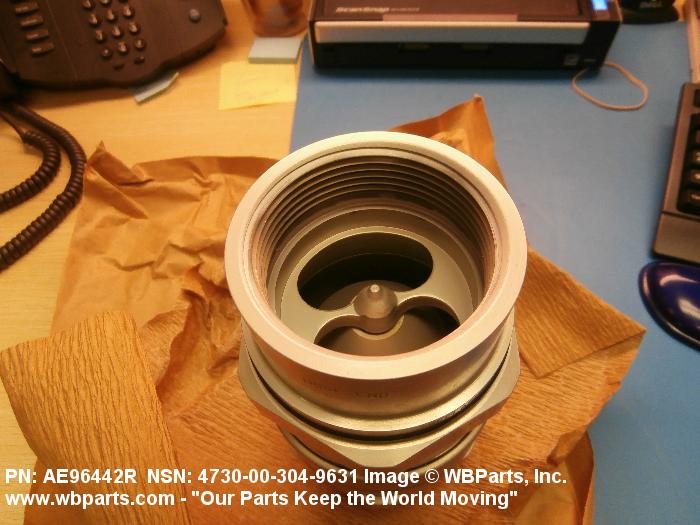

Drawings & Photos | NSN 4730-00-304-9631
Demand History | NSN 4730-00-304-9631
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-304-9631 | 2024-01-03 | 1 | us |
| 4730-00-304-9631 | 2023-12-07 | 1 | US |
| 4730-00-304-9631 | 2023-04-12 | 1 | United States |
| 4730-00-304-9631 | 2018-08-20 | 8 | DIBBS |
| 4730-00-304-9631 | 2018-08-08 | 8 | DIBBS |
| 4730-00-304-9631 | 2014-08-15 | 5 | United States |
| AE96442R | 2014-08-13 | 5 | United States |
Cross Reference | NSN 4730-00-304-9631
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE96442R | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-304-9631
Related Products | NSN 4730-00-304-9631
4730-00-305-0301, 4730-00-305-0302, 4730-00-305-0304, 4730-00-305-0306, 4730-00-305-0307
Technical Data | NSN 4730-00-304-9631
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AND STEEL CORROSION RESISTING BODY |
| SURFACE TREATMENT | ANODIZE AND PASSIVATE BODY |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 45.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 71.0 DEG CELSIUS SINGLE RESPONSE |
| STYLE DESIGNATOR | A2 COUPLING ASSEMBLY |
| OVERALL LENGTH | 8.016 INCHES NOMINAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE FIRST QUICK DISCONNECT END THREADED EXTERNAL PIPE SECOND QUICK DISCONNECT END |
| CONNECTION STYLE | B14 PLAIN FIRST QUICK DISCONNECT END D2 PLAIN SECOND QUICK DISCONNECT END |
| NOMINAL PIPE SIZE ACCOMMODATED | 2.500 INCHES FIRST QUICK DISCONNECT END 2.500 INCHES SECOND QUICK DISCONNECT END |
| THREAD SERIES DESIGNATOR | NPT FIRST QUICK DISCONNECT END NPT SECOND QUICK DISCONNECT END |
| NOMINAL THREAD SIZE | 2.500 INCHES FIRST QUICK DISCONNECT END 2.500 INCHES SECOND QUICK DISCONNECT END |
| FEATURES PROVIDED | SELF-SEALING |
| (NON-CORE DATA) FIRST LEG LENGTH | 1.562 INCHES NOMINAL |
| (NON-CORE DATA) SECOND LEG LENGTH | 1.562 INCHES NOMINAL |
| (NON-CORE DATA) SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | AE96442R |
